Land Rover Defender: A-Pillar Lower Trim Panel
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
Make sure that excessive force is not used. Failure to follow this instruction
may result in damage to the
vehicle.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure Contains illustrations for the right side components,
left side components are similar.
1.

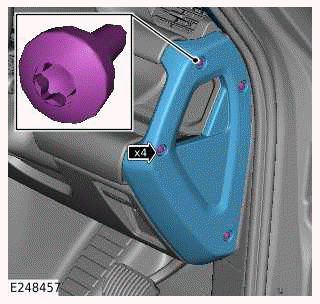

.png)
- Remove the 4 bolts.
- Remove the instrument panel outer side trim.
2.

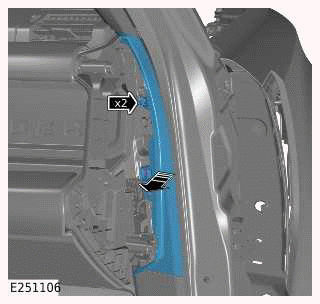

.png)
- Release the 2 clips.
- Remove the A-pillar center trim panel.
3.

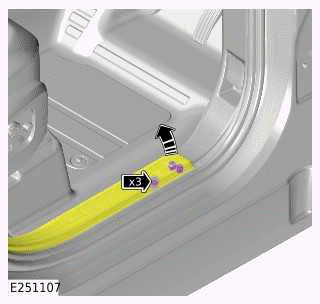

.png)
- Release the 3 clips.
- Release the treadplate.
4.
CAUTION:
Do not close the door when the lower trim is not in the correct installed
position

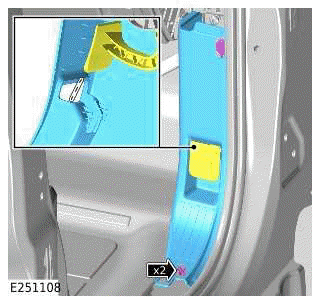

.png)
- Release the 2 clips.
- Move the hood release lever.
- Remove the A-pillar lower trim panel.
INSTALLATION
1.
NOTE:
Make sure that the clips are correctly installed to the trim.
- Install the A-pillar lower trim panel.
- Install the 2 clips.
2.
NOTE:
Make sure that the clips are correctly installed to the trim.
- Install the treadplate.
- Install the 3 clips.
3.
NOTE:
Make sure that the clips are correctly installed to the trim.
- Install the A-pillar center trim panel.
- Install the 2 clips.
4.
- Install the instrument panel outer side trim.
- Install and tighten the 4 bolts.
Torque: 2.5Nm
5.
CAUTION:
Make sure that the weatherstrip is not stretched on installation.

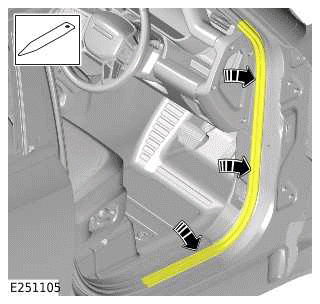

.png)
Use a suitable tool to reposition the door aperture seal.
6. Make sure the hood is closed after the work is completed.
