Land Rover Defender: Coil Spring

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Coil Spring

PART(S)

Coil Spring

REMOVAL

CAUTION: Only tighten the nuts and bolts when the suspension is at the normal ride height. Failure to follow this instruction may result in damage to the vehicle.

NOTE:

1. Raise and support the vehicle on a suitable 2-post lift.

2. Remove the rear wheel tire and assembly.

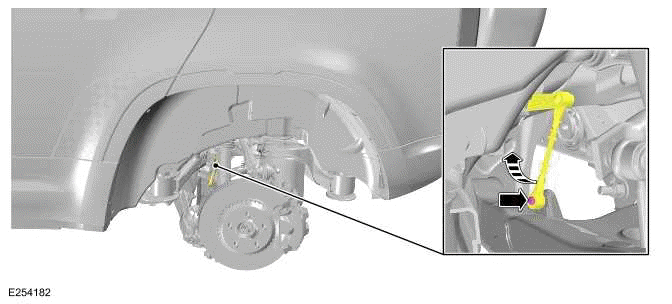

3.

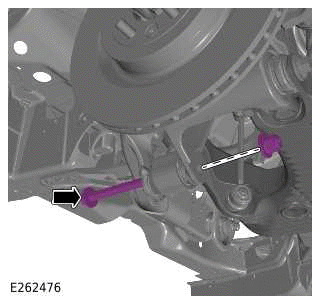

Coil Spring

Release the height sensor from the rear lower control arm.

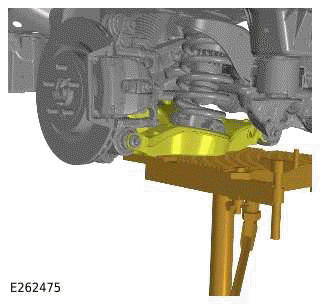

4.

Coil Spring

Use a suitable stand to support the lower control arm.

General Equipment: Transmission jack

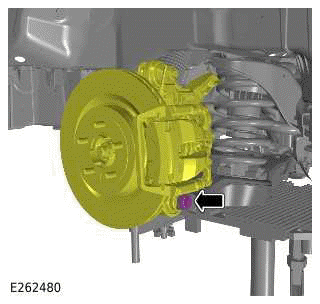

5.

Coil Spring

Remove and discard the shock absorber to wheel knuckle nut and bolt.

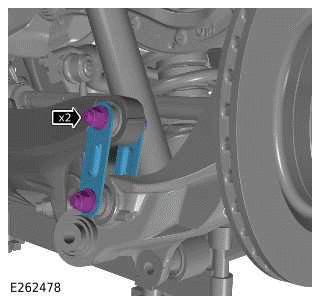

6.

Coil Spring

Remove and discard the 2 integral link nuts and bolts.

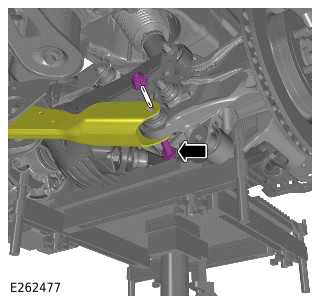

7.

Coil Spring

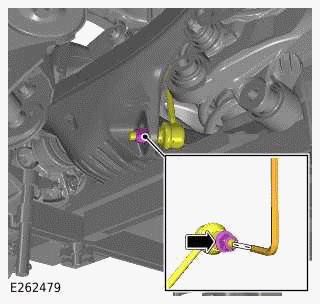

8.

Coil Spring

9.

CAUTION: Make sure that during the release of the wheel knuckle assembly, the halfshaft is not released from the differential.

Coil Spring

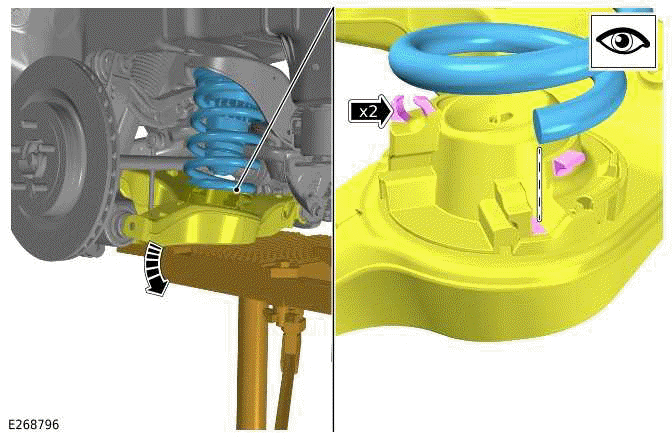

10.

NOTE: Note the orientation of the component prior to removal.

Coil Spring

INSTALLATION

1.

NOTE: Make sure that this component is installed to the noted removal position.

2.

3.

4.

5.

6. Install and tighten a new shock absorber to wheel knuckle nut and bolt.

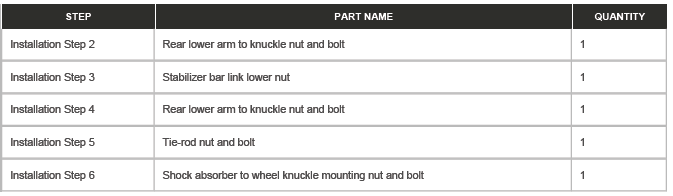

Renew Part: Shock absorber to wheel knuckle mounting nut and bolt Quantity: 1.

Torque: 170Nm

7. Install the height sensor link.

8. Install the rear wheel and tire.

9. Use Jaguar Land Rover (JLR) approved wheel alignment equipment to inspect the wheel alignment and adjust if required.
