Land Rover Defender: Communications Network - 110

DESCRIPTION AND OPERATION

COMPONENT LOCATION

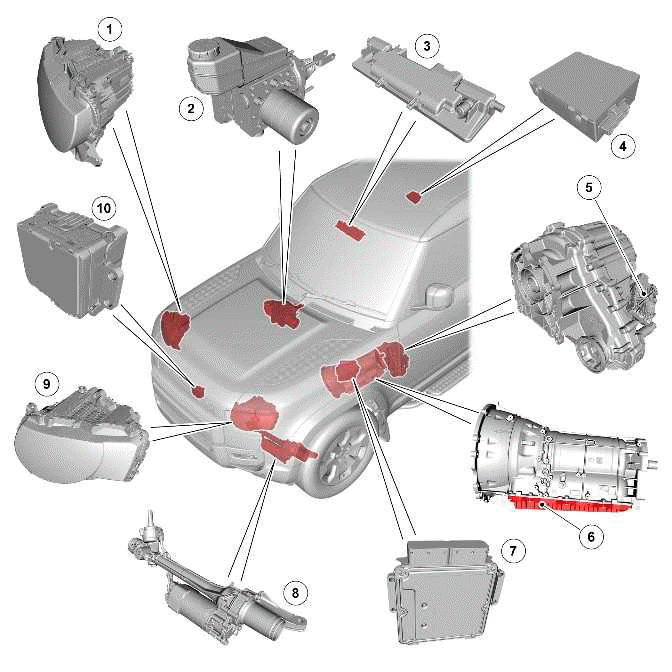

COMPONENT LOCATION - 1 OF 3

NOTE: Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.

Communications Network - 110

  1. Headlamp Control Module B (HCMB)
  2. Anti-Lock Brake System Control Module (ABS)
  3. Image Processing Module (IPMA)
  4. Tire Pressure Monitoring System Control Module (TPM)
  5. Transfer Case Control Module (TCCM)
  6. Transmission Control Module (TCM)
  7. Powertrain Control Module (PCM)
  8. Power Steering Control Module (PSCM)
  9. Headlamp Control Module A (HCM)
  10. Cruise Control Module (CCM)

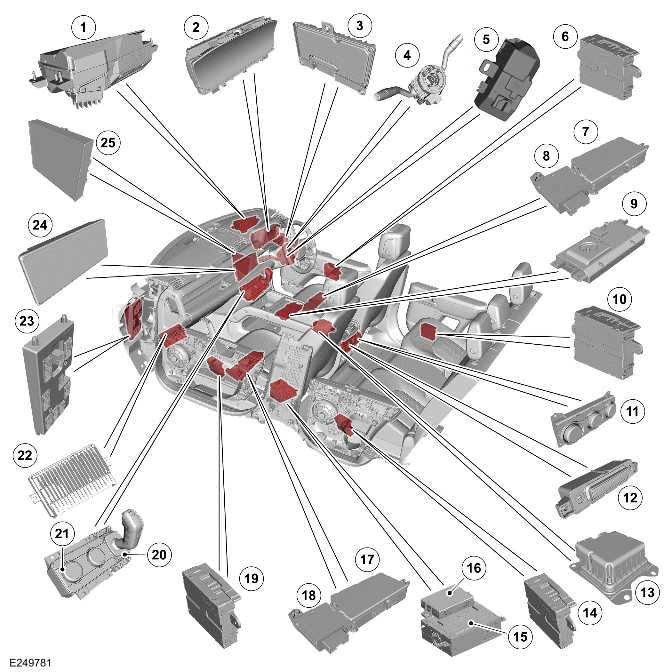

COMPONENT LOCATION - 2 OF 3

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Communications Network - 110

  1. Head Up Display (HUD)
  2. Instrument Panel Cluster (IPC)
  3. Driver Assistance Domain Controller (DADC)
  4. Steering Wheel Module (SWM)
  5. Electric Steering Column Lock Control Module (VIM)
  6. Driver Door Control Module (DDM)
  7. Seat Module - Driver/Passenger/Rear - Left/Right (DSM)
  8. Driver Seat Climate Control Module (DSCCM)
  9. Wireless Device Charger Module (WDCM)
  10. Driver Rear Door Module (DRDM)
  11. Rear Integrated Control Panel (FCIMB) (if equipped)
  12. Second row seat heater control (if equipped)
  13. Restraints Control Module (RCM)
  14. Passenger Rear Door Module (PRDM)
  15. Front Infotainment Control Module (IGM / ICCM)
  16. Remote Function Actuator (RFA)
  17. Seat Module - Driver/Passenger/Rear - Left/Right (PSM)
  18. Passenger Seat Climate Control Module (PSCCM)
  19. Passenger Door Control Module (PDM)
  20. Transmission Control Switch (TCS)
  21. Integrated Control Panel (FCIM)
  22. Near Field Sensing Module (NFSM)
  23. Body Control Module (BCM)/ Gateway Control Module (GWM)
  24. Touch Screen (FCDIM)
  25. Heating, ventilation, and air conditioning (HVAC) control module

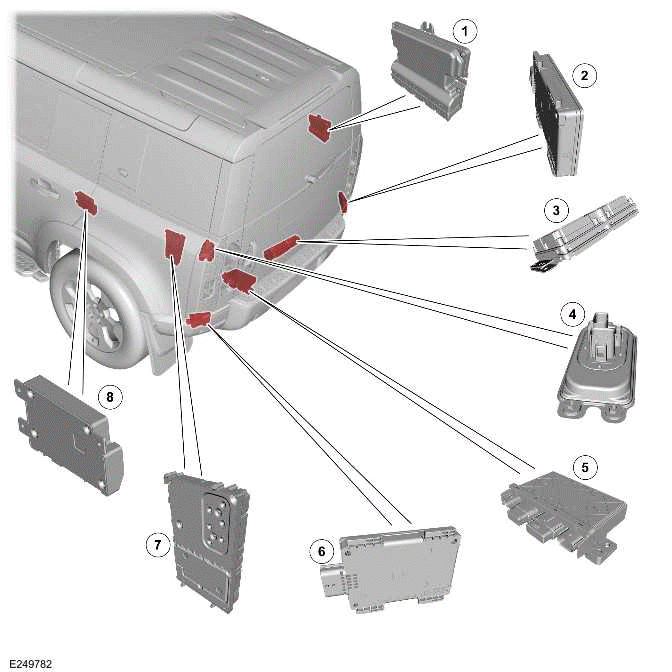

COMPONENT LOCATION - 3 OF 3

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Communications Network - 110

  1. Chassis Control Module (CHCM)
  2. Side Obstacle Detection Control Module - Right (SODR)
  3. Rear Differential Control Module (RDCM)
  4. Voltage Quality Module (VQM)
  5. Towbar Control Module (TBM)
  6. Side Obstacle Detection Control Module - Left (SODL)
  7. Audio Amplifier Control Module (AAM)
  8. Telematics Control Module (TCU)

OVERVIEW

A number of different types of communication network are incorporated into the vehicle wiring harnesses for the transmission of commands and information between control modules. The configuration installed on a particular vehicle depends on the model and equipment level.

NOTE: The control diagrams shown in this section are schematics reflecting communications networks installed to RHD vehicles only. For detailed layouts of the various communications networks installed to RHD and LHD vehicles refer to the electrical guide.

The communications networks available on the vehicle are shown below:

DIAGNOSTIC CONNECTOR

The Diagnostic Connector (J1962) is connected to the BCM/ GWM through the Diagnostic over Internet Protocol (DoIP) and the HS CAN diagnostic bus. The DoIP is the prime connection for the Jaguar Land Rover (JLR) approved diagnostic equipment.

DESCRIPTION

Refer to the relevant system section for details of system description.

OPERATION

Refer to the relevant system section for details of system operation.

CONTROL DIAGRAM

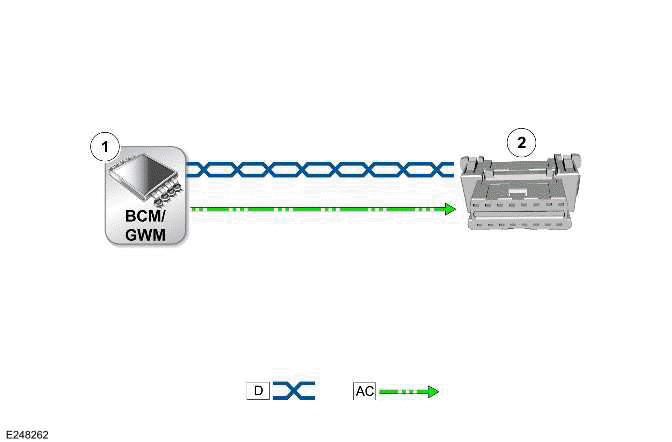

HIGH SPEED CONTROLLER AREA NETWORK DIAGNOSTIC BUS

Communications Network - 110

D = HS CAN DIAGNOSTIC BUS: A C = DOIP.

  1. BCM/ GWM
  2. J1962

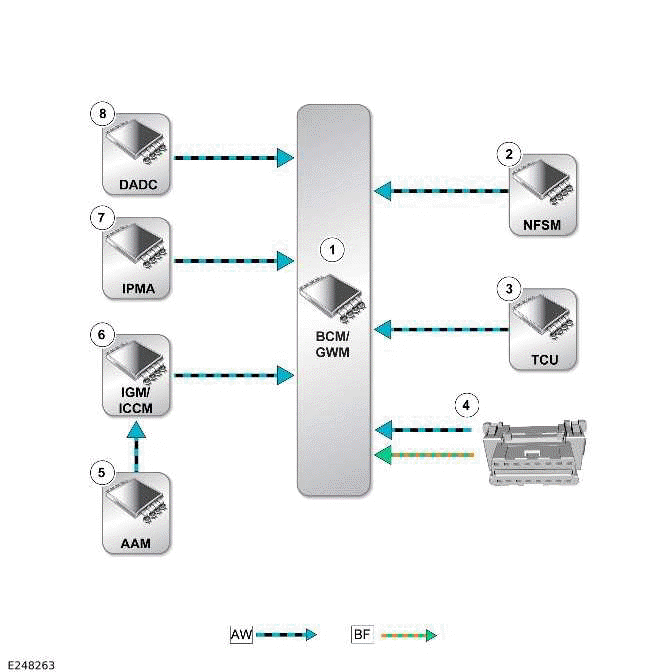

ETHERNET

Communications Network - 110

AW = ETHERNET: BF = ETHERNET WAKE-UP.

  1. BCM/ GWM
  2. NFSM
  3. TCU
  4. J1962
  5. AAM
  6. IGM / ICCM
  7. IPMA
  8. DADC

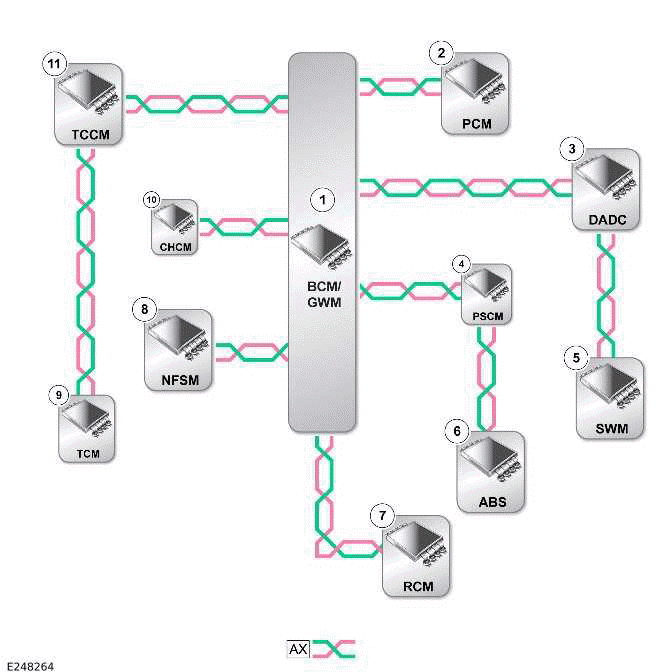

FLEXRAY

Communications Network - 110

AX = FLEXRAY.

  1. BCM/ GWM
  2. PCM
  3. DADC
  4. PSCM
  5. SWM
  6. ABS
  7. RCM
  8. NFSM
  9. TCM
  10. CHCM
  11. TCCM

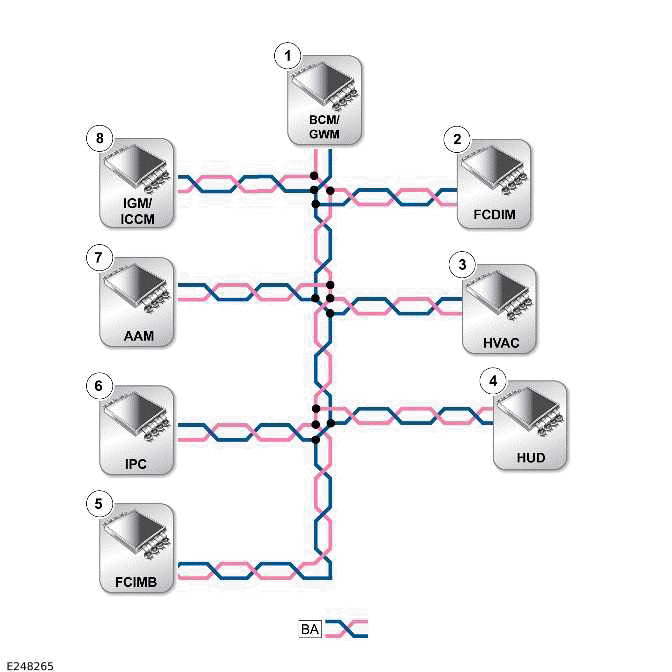

HIGH SPEED CONTROLLER AREA NETWORK HUMAN MACHINE INTERFACE SYSTEMS BUS

Communications Network - 110

BA = HS CAN HMI SYSTEMS BUS.

  1. BCM/ GWM - Terminator module
  2. FCDIM
  3. HVAC control module
  4. HUD
  5. FCIMB
  6. IPC - Terminator module
  7. AAM
  8. IGM / ICCM

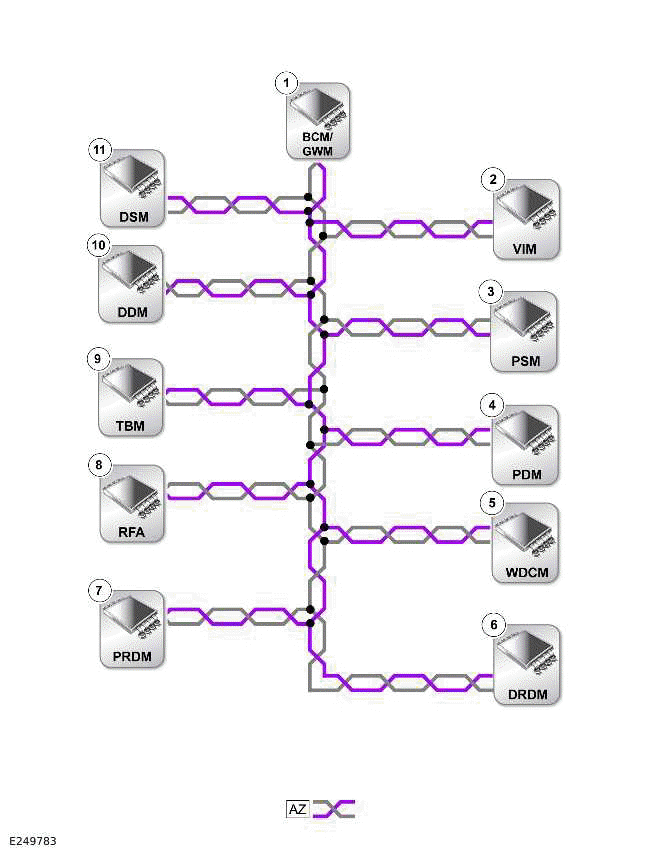

HIGH SPEED CONTROLLER AREA NETWORK BODY SYSTEMS BUS

Communications Network - 110

AZ = HS CAN BODY SYSTEMS BUS.

  1. BCM/ GWM - Terminator (quantity 2) module
  2. VIM
  3. PSM
  4. PDM
  5. WDCM
  6. DRDM
  7. PRDM
  8. RFA
  9. TBM
  10. DDM
  11. DSM

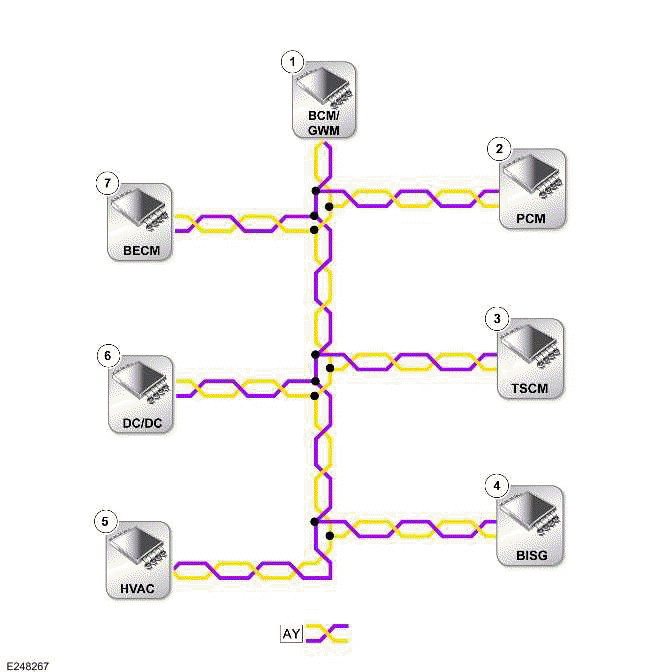

HIGH SPEED CONTROLLER AREA NETWORK POWER MODE ZERO SYSTEMS BUS

Communications Network - 110

AY = HS CAN POWER MODE ZERO SYSTEMS BUS.

  1. BCM/ GWM - Terminator module
  2. PCM - Only Ingenium I6 3.0L petrol
  3. Turbocharger / Supercharger Control Module (TSCM) (if equipped)
  4. Belt Integrated Starter Generator (BISG) (if equipped)
  5. HVAC control module - Terminator module
  6. Direct Current to Direct Current converter (DC/DC) (if equipped)
  7. Battery Energy Control Module (BECM) (if equipped)

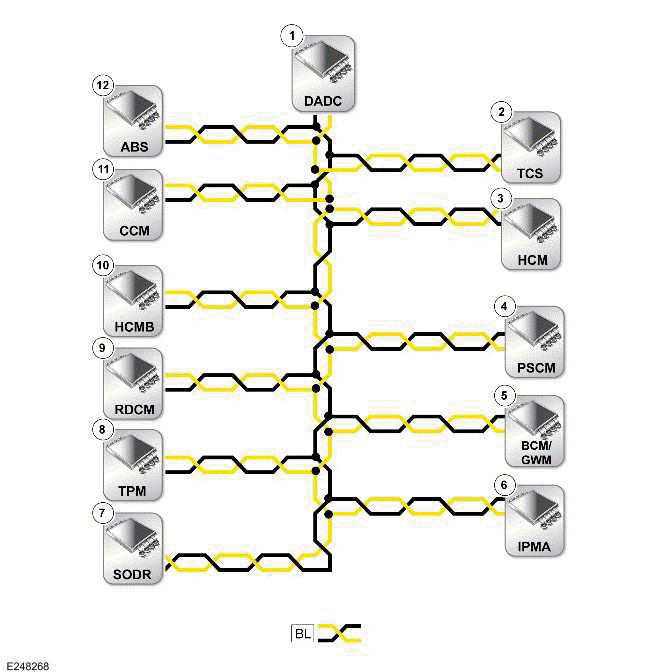

HIGH SPEED CONTROLLER AREA NETWORK UNDERBODY SYSTEMS BUS

Communications Network - 110

BL = HS CAN UN SYSTEMS BUS.

  1. DADC - Terminator module
  2. TCS
  3. HCM
  4. PSCM
  5. BCM/ GWM
  6. IPMA
  7. SODR
  8. TPM
  9. RDCM
  10. HCMB
  11. CCM
  12. ABS - Terminator module

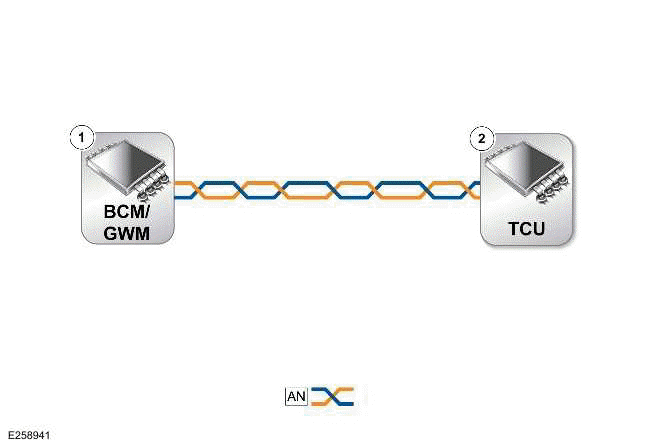

HIGH SPEED CONTROLLER AREA NETWORK POWERTRAIN SYSTEMS BUS

Communications Network - 110

AN = HS CAN POWERTRAIN SYSTEMS BUS.

  1. BCM/ GWM - Terminator module
  2. TCU - Terminator module

PRIVATE CONTROLLER AREA NETWORK BUS - 1 OF 4 - BLINDSPOT MONITORING CONTROL CIRCUIT

Communications Network - 110

U = PRIVATE CAN BUS.

  1. SODL
  2. SODR

PRIVATE CONTROLLER AREA NETWORK BUS - 2 OF 4 - DRIVER ASSISTANCE DOMAIN CONTROLLER CONTROL CIRCUIT

Communications Network - 110

U = PRIVATE CAN BUS.

  1. DADC
  2. CCM

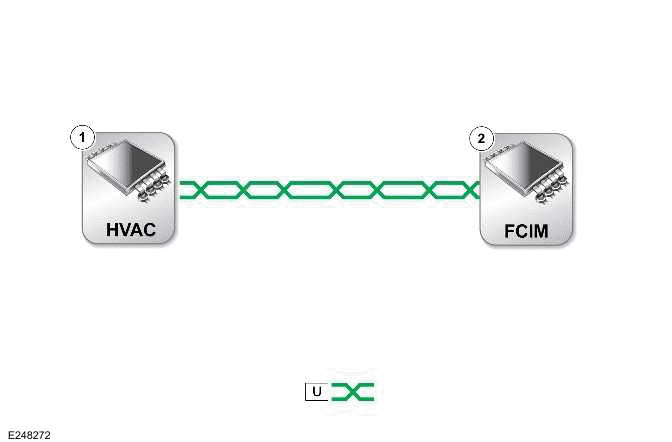

PRIVATE CONTROLLER AREA NETWORK BUS - 3 OF 4 - HVAC CONTROL CIRCUIT

Communications Network - 110

U = PRIVATE CAN BUS.

  1. HVAC control module
  2. FCIM

PRIVATE CONTROLLER AREA NETWORK BUS - 4 OF 4 - HEADLAMP CONTROL CIRCUIT

Communications Network - 110

U = PRIVATE CAN BUS.

  1. HCMB
  2. HCM

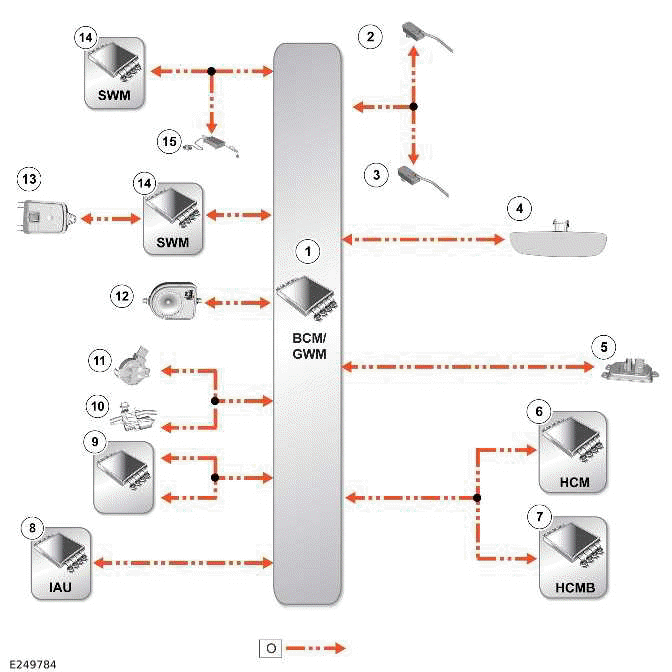

LOCAL INTERCONNECT NETWORK - 1 OF 11 - BODY CONTROL MODULE/GATEWAY CONTROL MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. BCM/ GWM
  2. Ambience lighting Light Emiting Diode (LED) - Instrument panel
  3. Ambience lighting LED - Console
  4. Rear View Mirror (RVM)
  5. VQM
  6. HCM
  7. HCMB
  8. Immobilizer Antenna Unit (IAU)
  9. Roof opening panel control module (glass roof has 1 node, canvas roof has 2 nodes)
  10. Wiper motor - Front window
  11. Rain/light sensor
  12. Battery Back-Up Sounder (BBUS)
  13. Right steering wheel switch
  14. SWM
  15. Volumetric sensor

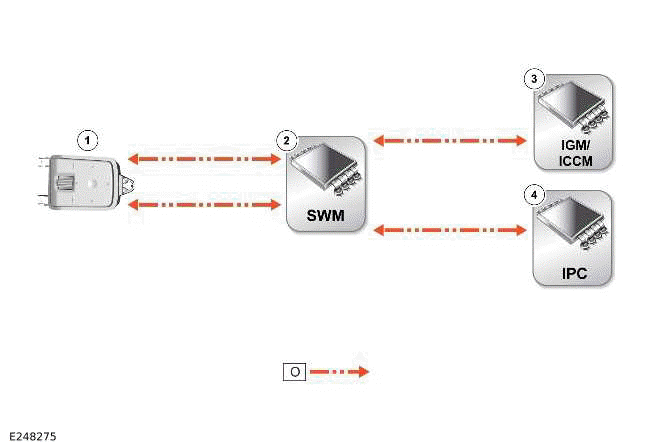

LOCAL INTERCONNECT NETWORK - 2 OF 11 - LEFT STEERING WHEEL SWITCH

Communications Network - 110

O = LIN.

  1. Left steering wheel switch
  2. SWM
  3. IGM / ICCM
  4. IPC

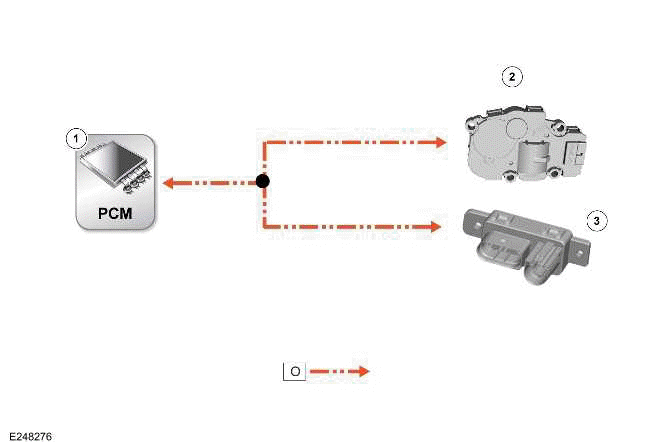

LOCAL INTERCONNECT NETWORK - 3 OF 11 - POWERTRAIN CONTROL MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. PCM
  2. Active grille air shutter motor
  3. Glow plug control module (diesel vehicles only)

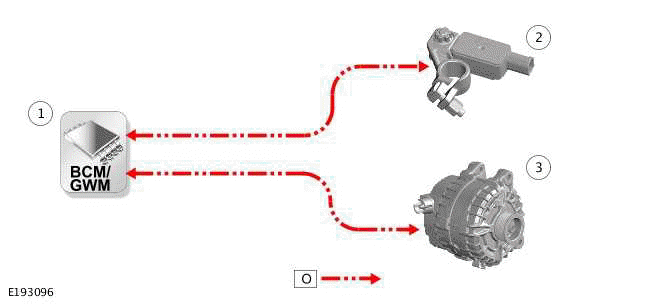

LOCAL INTERCONNECT NETWORK - 4 OF 11 - BATTERY MONITORING SYSTEM

Communications Network - 110

O = LIN.

  1. BCM/ GWM
  2. Battery Monitoring System (BMS) control module
  3. Generator

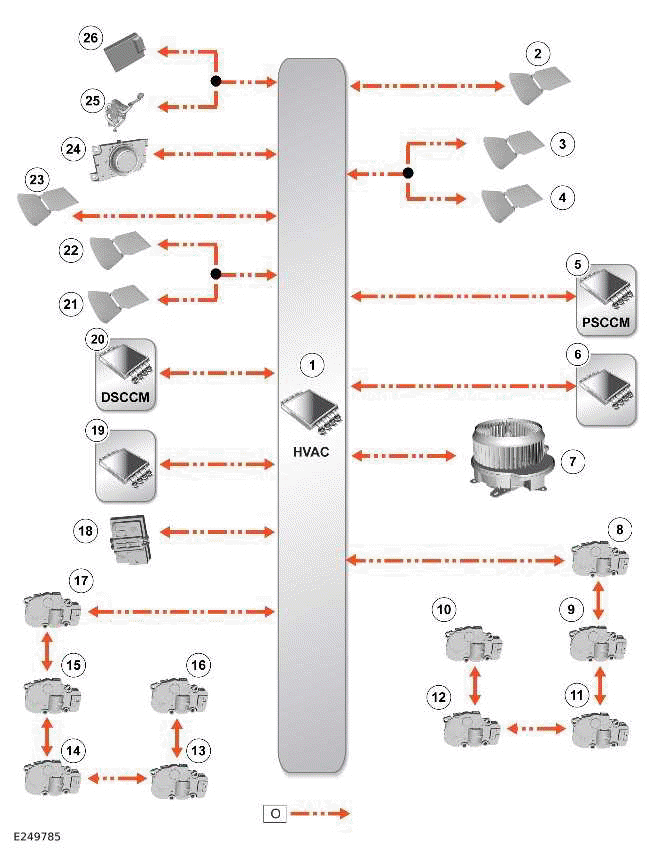

LOCAL INTERCONNECT NETWORK - 5 OF 11 - HVAC CONTROL MODULE

Communications Network - 110

O = LIN.

  1. HVAC control module
  2. Seat heater - Passenger
  3. Seat heater - Second row left
  4. Seat heater - Third row left
  5. PSCCM
  6. Rear Seat Climate Control Module (RSCCM) - Left
  7. Blower - Front
  8. Recirculation motor
  9. Cool air bypass motor
  10. Distribution motor - Front left
  11. Temperature blend motor - Front left
  12. Temperature blend motor - Rear left
  13. Temperature blend motor - Front right
  14. Temperature blend motor - Rear right
  15. Auxiliary climate control face/feet motor
  16. Distribution motor - Front right
  17. Distribution motor - Demist
  18. Humidity sensor
  19. RSCCM - Right
  20. DSCCM
  21. Seat heater - Second row right
  22. Seat heater - Third row right
  23. Seat heater - Driver
  24. Auxiliary blower rotary control
  25. Fuel Fired Booster Heater Control Module (AHCM)
  26. AHCM receiver

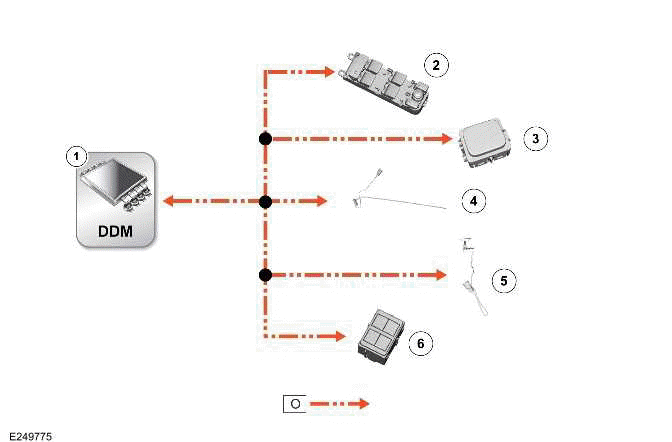

LOCAL INTERCONNECT NETWORK - 6 OF 11 - DRIVER DOOR CONTROL MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. DDM
  2. Door switchpack - Driver
  3. Clear Exit Detection System (CEDS) indicator
  4. Ambience lighting LED - Driver door
  5. Ambience lighting LED - Driver door handle
  6. Seat memory switchpack - Driver

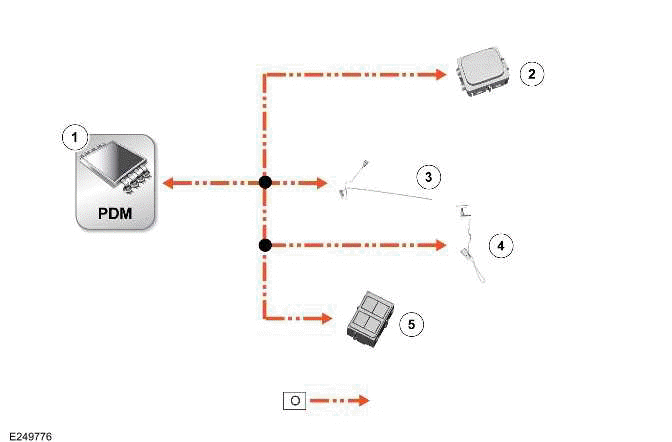

LOCAL INTERCONNECT NETWORK - 7 OF 11 - PASSENGER DOOR CONTROL MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. PDM
  2. CEDS indicator
  3. Ambience lighting LED - Passenger door
  4. Ambience lighting LED - Passenger door handle
  5. Seat memory switchpack - Passenger

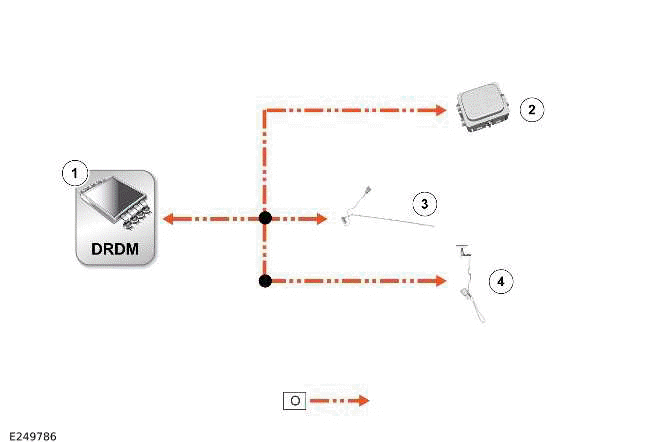

LOCAL INTERCONNECT NETWORK - 8 OF 11 - DRIVER REAR DOOR MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. DRDM
  2. CEDS indicator
  3. Ambience lighting LED - Rear right door
  4. Ambience lighting LED - Rear right door handle

LOCAL INTERCONNECT NETWORK - 9 OF 11 - PASSENGER REAR DOOR MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. PRDM
  2. CEDS indicator
  3. Ambience lighting LED - Rear left door
  4. Ambience lighting LED - Rear left door handle

LOCAL INTERCONNECT NETWORK - 10 OF 11 - DRIVER SEAT MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. DSM
  2. Seat switchpack - Driver

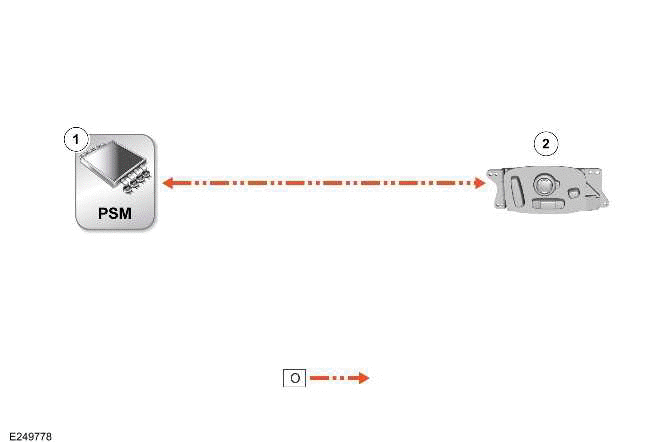

LOCAL INTERCONNECT NETWORK - 11 OF 11 - PASSENGER SEAT MODULE CONTROL CIRCUIT

Communications Network - 110

O = LIN.

  1. PSM
  2. Seat switchpack - Passenger

READ NEXT:

 Communications Network

DIAGNOSIS AND TESTING PRINCIPLES OF OPERATION For a detailed description of the Communications Network, refer to the relevant Description and Operation section in the workshop manual. REFER to: Commu

 Battery Junction Box

REMOVAL AND INSTALLATION REMOVAL NOTES: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct. This

 Body Control Module/Gateway Module Assembly

REMOVAL AND INSTALLATION GENERAL EQUIPMENT REMOVAL NOTES: If a new Body Control Module/Gateway Module (BCM/GWM) is installed, a new Remote Function Actuator (RFA) must also be installed. This st
