Land Rover Defender: Door Mirror Motor Assembly
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Rear View Mirrors / Door Mirror Motor Assembly
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Remove the door mirror glass.
2.
CAUTION:
- Take extra care when releasing the clips, if not followed the vehicle will be damaged.
- Use a suitable tool to release the door mirror motor assembly.

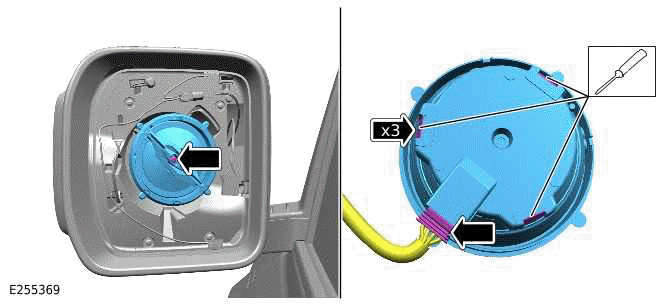

.png)
- Remove the screw.
- Release the 3 clips.
- Disconnect the electrical connector.
- Remove the door mirror motor assembly.
INSTALLATION
1.
CAUTION:
- Make sure all the clips are properly installed.
- An audible click is heard when the door mirror motor assembly is located correctly.
- Make sure that the wiring harnesses are correctly located.
- Connect the electrical connector.
- Install the door mirror motor assembly.
- Install the 3 clips.
- Install and tighten the screw.
Torque: 1.2Nm
2. Install the door mirror glass.
