Land Rover Defender: Driveshaft To Rear Differential Disconnection
GENERAL PROCEDURES
SPECIAL TOOL(S)
205-932
Remover, Driveshaft

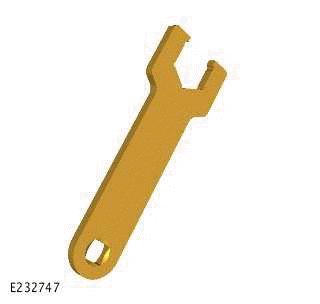

303-1142
Viscous Coupling Wrench
JLR-205-1032
Remover/Installer, Rear Driveshaft Nut

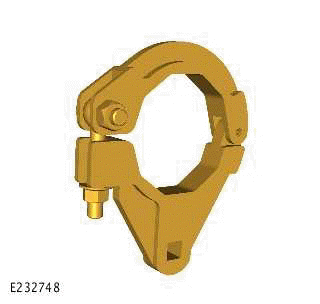

JLR-205-1033A
Remover/Installer, Rear Driveshaft Clamp
JLR-205-993
Remover/Installer, Driveshaft Nut
ACTIVATION
CAUTIONS:
- Make sure all the components are clean and free from corrosion.
- Support the driveshaft at all times to prevent the damage to the
centre bearing.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.
NOTE:
If equipped.

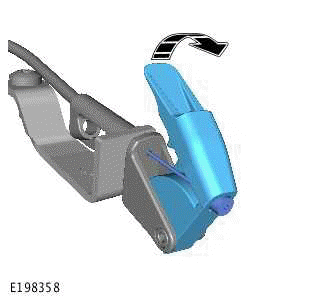

Locate and release the Emergency Park Release (EPR).
2. Raise and support the vehicle on a suitable 2 post lift.
3.
NOTE:
If equipped.

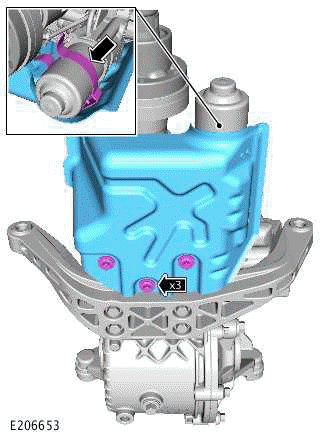

Remove the differential undershield.
4.

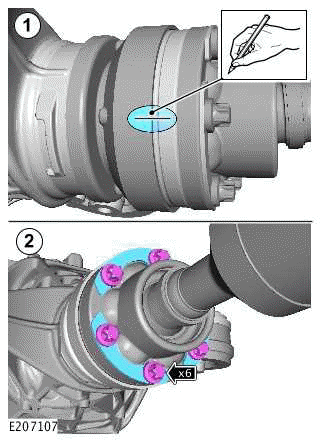

- Mark the installed position of the driveshaft in relation to the rear
differential drive flange.
- Remove the driveshaft to rear differential retaining bolts and washers.
5. Spray the joint mating faces and bolt holes with general purpose
penetrating oil.
6.
NOTE:
Vehicles with 2 slots located on the differential drive flange.

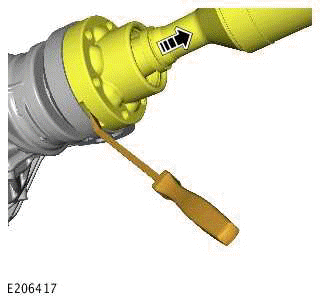

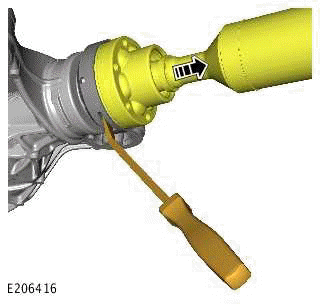

Using a suitable tool, carefully lever against the 2 slots located on the
rear differential drive flange until the
driveshaft is disconnected.
7.
NOTE:
Vehicles with 2 slots located on the driveshaft.
Using a suitable tool, carefully lever against the 2 slots located on the
drive shaft joint until the driveshaft is
disconnected.
8.
NOTE:
Vehicles with 2 extra threaded holes on the differential drive flange.

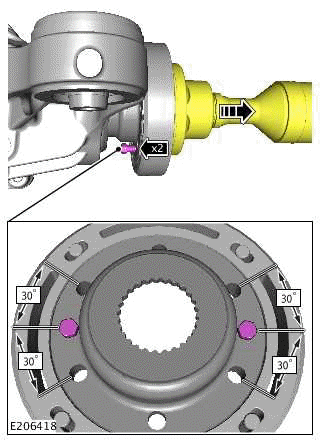

- Install 2 M10 x 30 mm flangeless bolts into the 2 extra threaded holes
located in the rear of the
differential drive flange as shown.
- Tighten the 2 bolts 1 turn at a time until the driveshaft is
disconnected.
9.
NOTE:
Vehicles with 2 extra unthreaded holes on the differential drive flange.

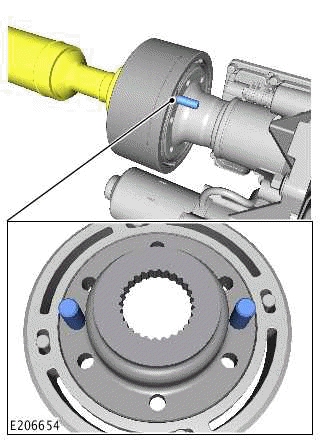

Install 2 suitable 8 mm x 30 mm metal bars into the extra 2 unthreaded holes
located in the rear of the
differential drive flange as shown.
10.

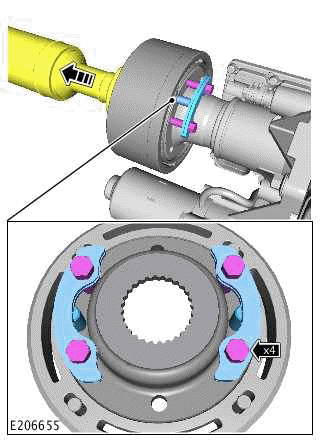

- Install 4 M8 x 30 mm flangeless bolts and 4 driveshaft washers into the
rear of the differential drive
flange as shown.
- Tighten the 4 bolts 1 turn at a time until the driveshaft is
disconnected.
11.
WARNING:
Make sure that the special tool is installed and used correctly. This will help
prevent
serious injury and damage to the vehicle and equipment.
NOTE:
Vehicles with accessible groove around the driveshaft.

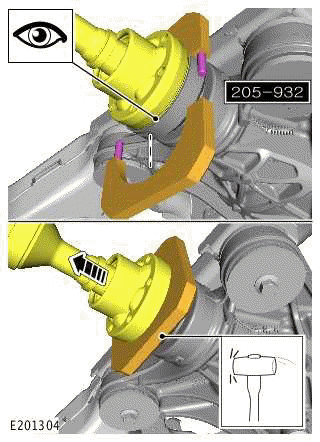

Using the special tool, disconnect the driveshaft.
Special Tool(s): 205-932
12.
NOTE:
Vehicles with tapered nut connection.

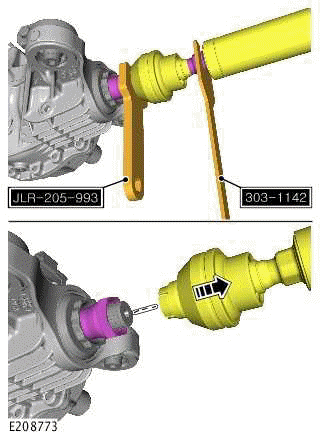

Using the special tools, disconnect the driveshaft.
Special Tool(s): JLR-205-993, 303-1142
13.

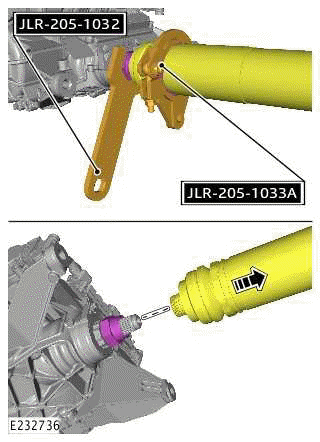

NOTE:
Vehicles with tapered nut and clamp connection.
Using the special tools, disconnect the driveshaft.
Special Tool(s): JLR-205-1032, JLR-205-1033A
14. Clean and inspect the components.
