Land Rover Defender: Front Door

REMOVAL AND INSTALLATION

PART(S)

Front Door

REMOVAL

CAUTION: Protect the surrounding paintwork to avoid damage.

NOTES:

1. Disconnect the startup battery ground cable.

2. Remove the door mirror.

3. Remove the front door lower moulding.

4. Remove the front door window.

5. Remove the front door latch.

6. Remove the front door weatherstrip.

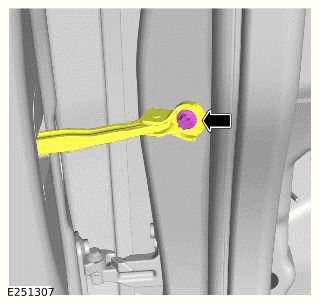

7.

Front Door

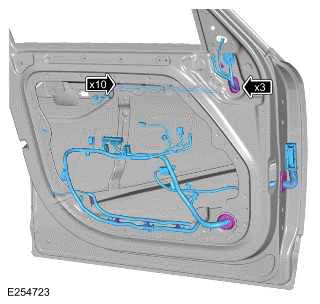

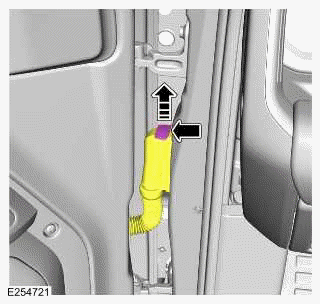

8.

Front Door

Disconnect the front door wiring harness from the body wiring harness.

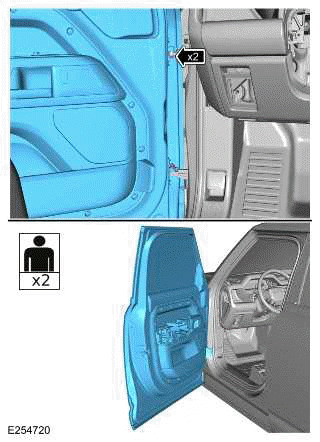

9.

CAUTIONS:

NOTE: This step requires the aid of another technician.

Front Door

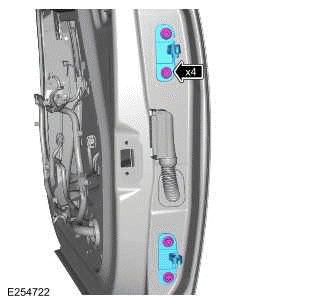

10.

NOTE: Do not disassemble further if the component is removed for access only.

Front Door

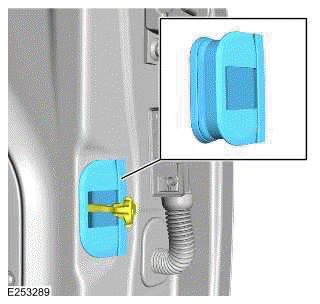

11.

Front Door

Remove the rubber access cover.

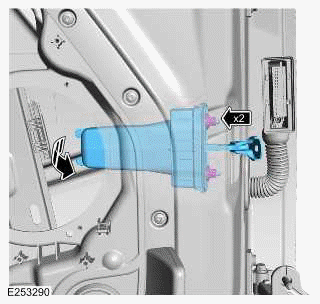

12.

Front Door

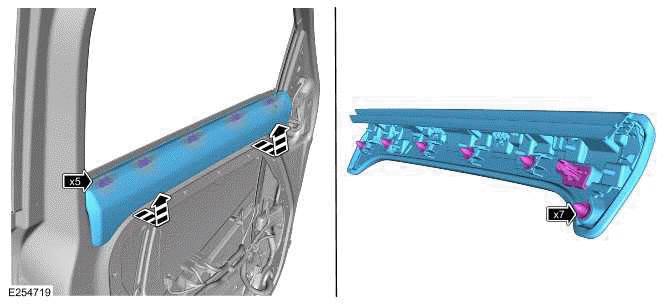

13.

Front Door

14.

Front Door

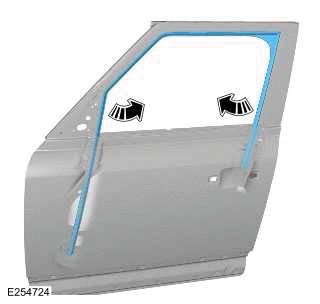

15.

Front Door

Remove the front door window runner seal.

16.

Front Door

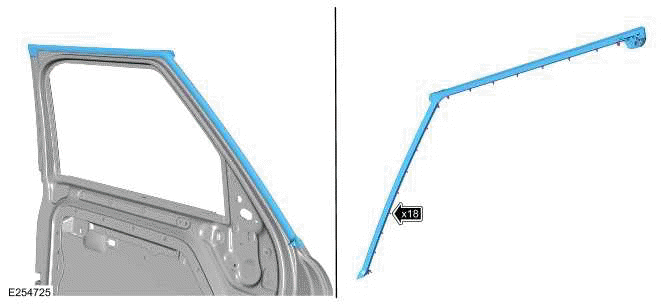

17.

Front Door

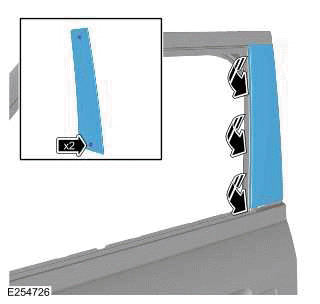

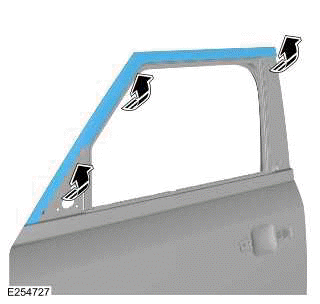

18.

Front Door

Remove the front door frame upper finisher.

INSTALLATION

1. Install the front door frame upper finisher.

2. Install the front door frame finisher.

3. Install the front door upper weatherstrip.

4. Install the front door window runner seal.

5.

6.

7.

8. Install the access cover.

9. Install the front door upper trim panel.

10.

CAUTION: The component(s) may be heavy. Take extra care when handling.

NOTE: This step requires the aid of another technician.

Front Door

11.

Front Door

12. Connect the front door wiring harness to the body wiring harness.

13. Install the front door weatherstrip.

14. Install the front door latch.

15. Install the front door window.

16. Install the front door lower moulding.

17. Install the door mirror.

18. Connect the startup battery ground cable.
