Land Rover Defender: Headliner - 110
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.

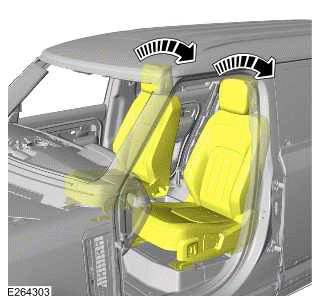

1.
Reposition the front seats.
2. Disconnect the startup battery ground cable.
3. Remove the windshield.
4.
NOTE:
Repeat this step for the other side.
Remove the B-pillar trim panel.
5.
NOTE:
Repeat this step for the other side.
Remove the C-pillar trim panel.
6.

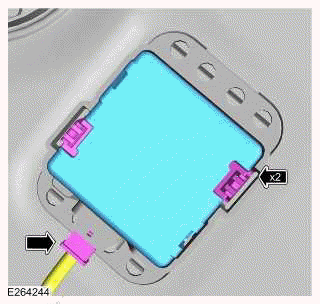

NOTE:
Repeat this step for the other side.
Remove the D-pillar trim panel.
7.
NOTE:
Repeat this step for the other side.
Remove the sun visor.
8. Remove the overhead console.
9. Remove the interior rear view mirror.
10.
NOTE:
This step requires the aid of another technician.
- Remove the 2 bolts.
- Remove the 2 sun visor clips.

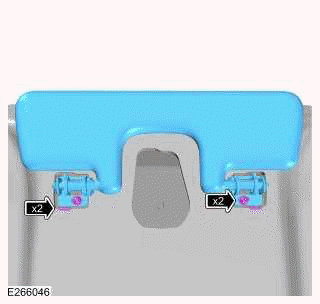

11.
Remove the 2 access covers.
12.
- Remove the 2 bolts.
- Release the 2 clips.
- Remove the center sun visor.

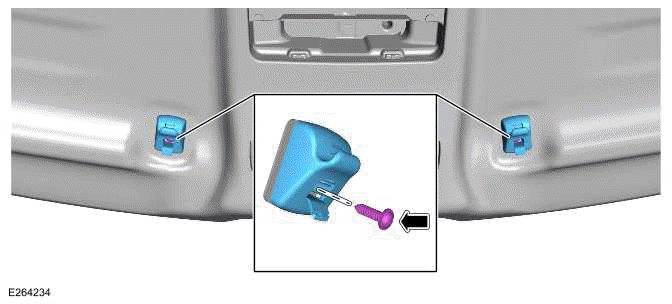

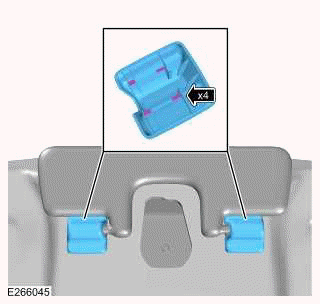

13.
NOTE:
Repeat this step for the other components.
- Release the 2 access covers.
- Remove the 2 bolts.

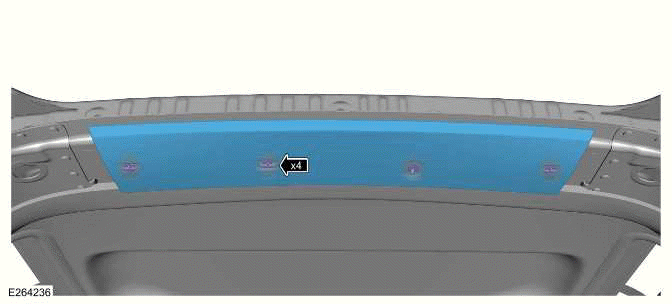

14.
Remove the trim panel.

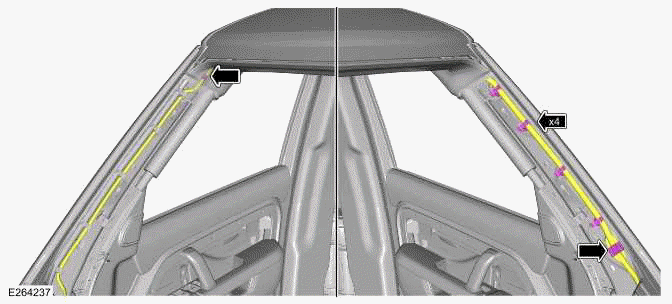

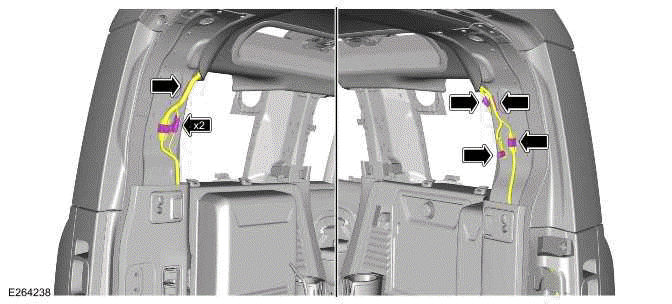

15.
- Disconnect the electrical connector.
- Release the 4 wiring harness clips.
- Disconnect the washer fluid hose.
16.
- Disconnect the 3 electrical connectors.
- Remove the nut.
- Release the 2 wiring harnesses.
- Disconnect the washer fluid hose.

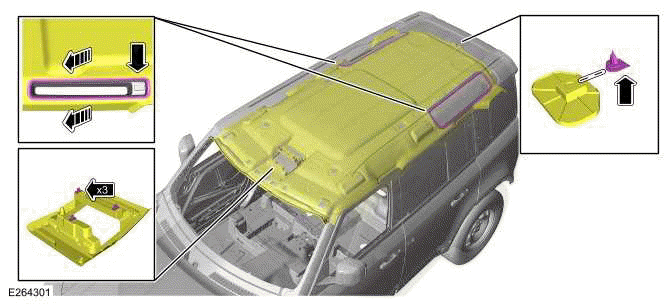

17.
NOTE:
This step requires the aid of another technician.
- Release the 3 front clips.
- Release the headliner from the 2 alpine windows seals.
- Release the headliner from the rear clip.

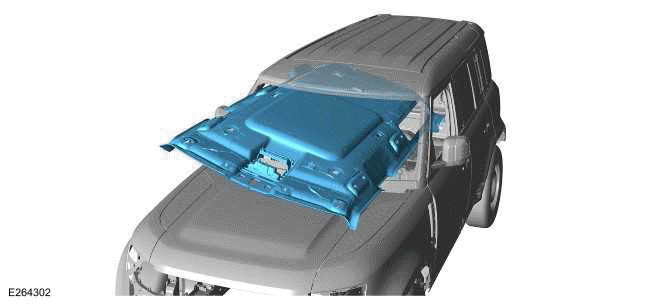

18.
NOTE:
This step requires the aid of another technician.
Remove the headliner.

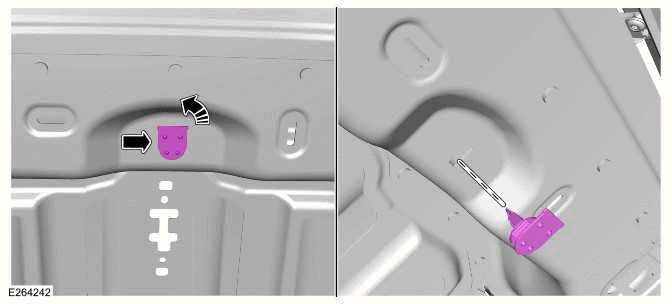

19.
Remove the clip from the roof panel.
20.

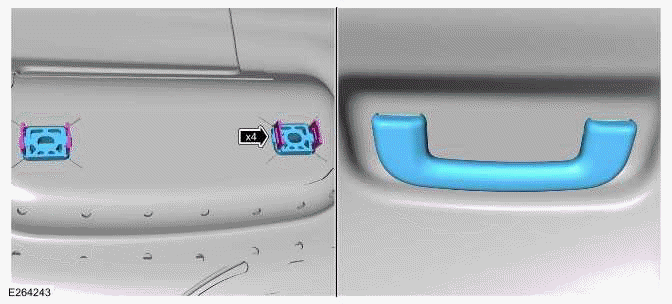

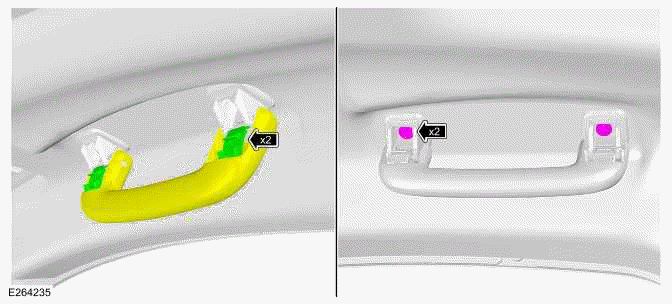

NOTE:
- Only do this step if a new component is installed.
- Repeat this step for the other components.
- Release the 4 clips.
- Remove the grab handle.

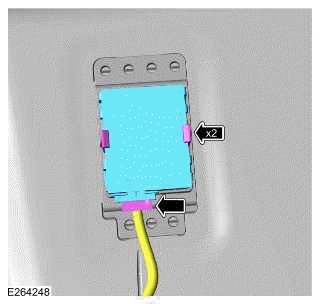

21.
- Disconnect the electrical connector.
- Release the 2 clips.
- Remove the front Radio Frequency (RF) receiver.

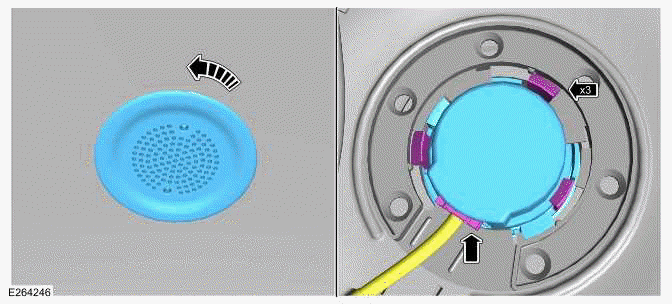

22.
NOTE:
Repeat this step for the other side.
- Release the voice control microphone.
- Disconnect the electrical connector.
- Remove the voice control microphone.

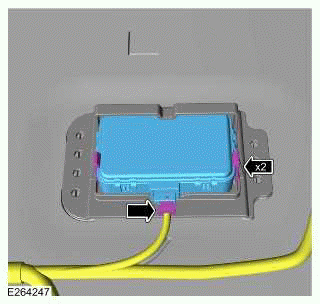

23.
- Disconnect the electrical connector.
- Release the 2 clips.
- Remove the Tire Pressure Monitoring System Control Module (TPMSCM).

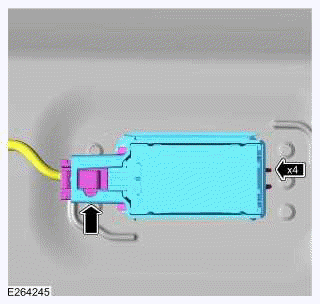

24.
NOTE:
Repeat this step for the other side.
- Disconnect the electrical connector.
- Release the 4 clips.
- Remove the interior light.
25.
- Disconnect the electrical connector.
- Release the 2 clips.
- Remove the rear RF receiver.
INSTALLATION
1.
- Install the Tire Pressure Monitoring System Control Module (TPMSCM).
- Connect the electrical connector.
2.
- Install the front RF receiver.
- Connect the electrical connector to the front RF receiver.
- Install the rear RF receiver.
- Connect the electrical connector to the rear RF receiver.
3.
NOTE:
Repeat this step for the other side.
- Connect the electrical connector to the voice control microphone.
- Install the voice control microphone.
- Install the interior light.
- Connect the electrical connector to the interior light.
4.
NOTE:
Repeat this step for the other components.
Install the grab handle.
5. Install the rear clip to the headliner.
6.
NOTE:
This step requires the aid of another technician.
- Install the headliner assembly.
- Secure the 4 clips.
- Secure the 2 alpine window seals.
7.
- Connect the washer fluid hose.
- Secure the 2 wiring harnesses with the 2 clips.
- Install and tighten the nut.
- Connect the 3 electrical connectors.
8.
- Connect the washer fluid hose.
- Secure the 4 wiring harness clips.
- Connect the electrical connector.
9.
10.
NOTE:
Repeat this step for the other components.
- Install and tighten the 2 bolts.
Torque: 6Nm
- Secure the access cover.
11.
- Install the 2 sun visor clips.
- Install and tighten the 2 bolts.
Torque: 4Nm
12.
- Install the center sun visor.
- Install and tighten the 2 bolts.
Torque: 2Nm
- Install the 2 access covers.
13. Install the interior rear view mirror.
14. Install the overhead console.
15.
NOTE:
Repeat this step for the other side.
Install the sun visor.
16.
NOTE:
Repeat this step for the other side.
Install the D-pillar trim panel.
17.
NOTE:
Repeat this step for the other side.
Remove the C-pillar trim panel.
18.
NOTE:
Repeat this step for the other side.
Remove the B-pillar trim panel.
19. Install the windshield.
20. Connect the startup battery ground cable.
21. Reposition the front seats.
