Land Rover Defender: Parking Aid - Specifications, Component Location

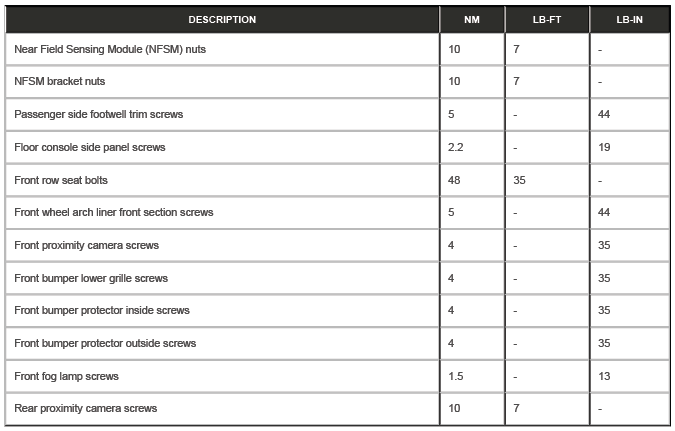

SPECIFICATIONS
DESCRIPTION AND OPERATION
COMPONENT LOCATION

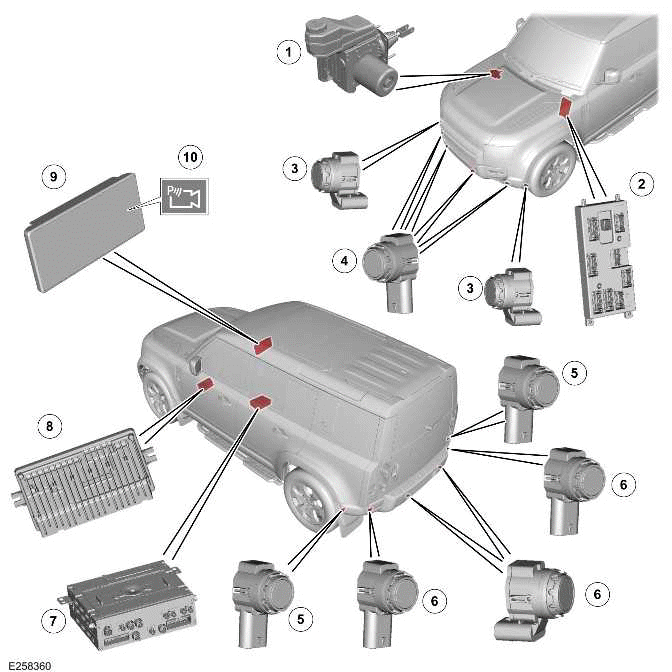

COMPONENT LOCATION - 1 OF 3 - PARKING AID - 360º
NOTES:
- Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD)
vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Anti-Lock Brake System Control Module (ABS) - Integrated with the
Integrated Power Brake
- Body Control Module (BCM)/ Gateway Control Module (GWM)
- Park Assist sensor - Front (quantity 2)
- Parking Aid sensor - Front (quantity 4)
- Park Assist sensor - Rear (quantity 2)
- Parking Aid sensor - Rear (quantity 4)
- Front Infotainment Control Module (IGM / ICCM)
- Near Field Sensing Module (NFSM)
- Touchscreen (TS)
- Parking Aid switch

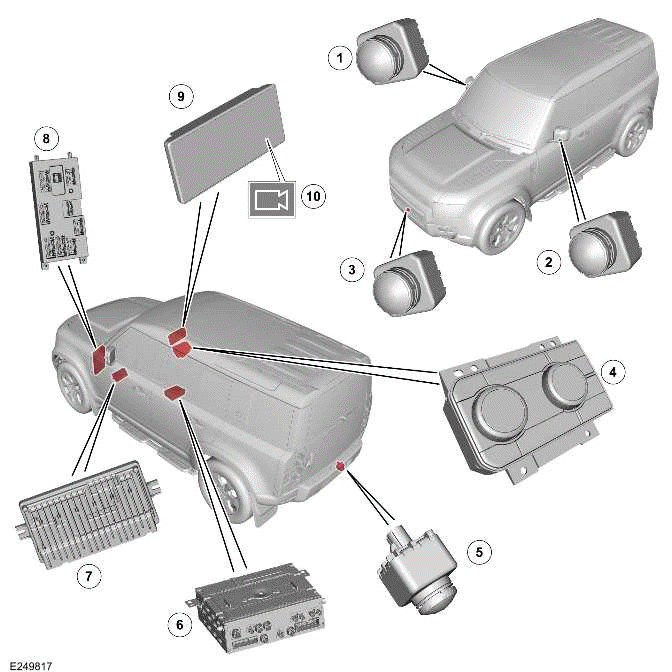

COMPONENT LOCATION - 2 OF 3 - PROXIMITY CAMERA SYSTEM
NOTES:
- RHD vehicle is shown, LHD vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Right door mirror proximity camera
- Left door mirror proximity camera
- Front proximity camera
- Integrated Control Panel (FCIM)
- Rear proximity camera
- IGM / ICCM
- NFSM
- BCM/ GWM
- TS
- Proximity camera switch

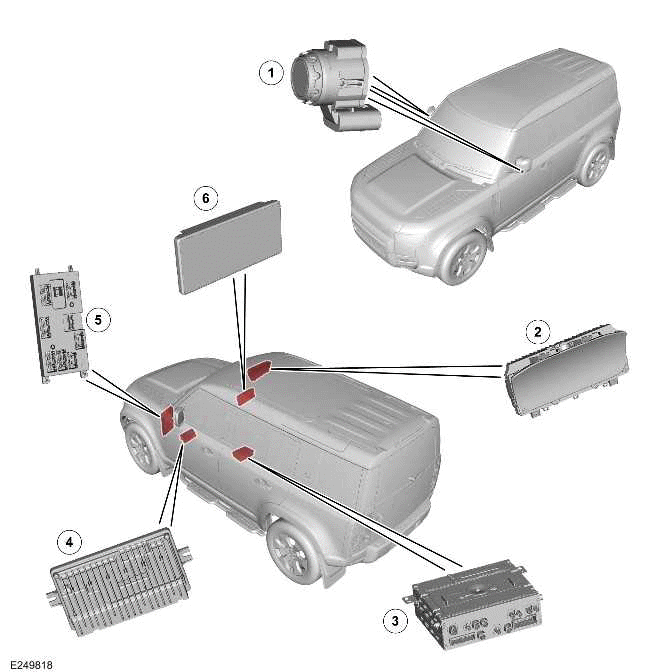

COMPONENT LOCATION - 3 OF 3 - WADE SENSING SYSTEM
NOTES:
- RHD vehicle is shown, LHD vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Door mirror wade sensor (quantity 2)
- Instrument Panel Cluster (IPC)
- IGM / ICCM
- NFSM
- BCM/ GWM
- TS
