Land Rover Defender: Seat Cover Inspection

DIAGNOSIS AND TESTING

INSPECTION AND VERIFICATION

Seat Cover Replacement - Rest of World vehicles

NOTES:

Seat Cover Replacement - NAS vehicles

NOTES:

  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity
  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  4. Check the JLR claims submission system for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and complete the recommendations as required

NOTES:

Leather Seat Covers

Leather is a natural product, therefore it bears natural characteristics such as, grain variations, growth and bush marks. These non-weakening marks show the true nature of the hide and are the hallmarks of leather. In order to maintain the beauty of the vehicles natural leather upholstery it requires regular cleaning, which if neglected may cause deterioration. Where dust and dirt are allowed to accumulate and become ingrained in the surface of the leather, the upholstery may become permanently damaged. Light colored upholstery can be particularly susceptible to soiling and staining. Care should be taken to make sure that where there is evidence of any soiling or staining, this should be cleaned immediately. Only use the Jaguar Land Rover approved products. Failure to do this could lead to the stain becoming permanent, this applies to all leather upholstery and is not color specific. Leather trimmed seats will naturally exhibit areas of creasing and wrinkling over a period of time and is a normal characteristic as the leather ages.

EXAMPLES OF SEAT COVER NATURAL APPEARANCE

Examples of Natural Characteristics of Leather

In the document are some examples of the natural characteristics of leather which will mature with use and ageing.

These examples of the natural characteristics of leather are not manufacturing defects. Improvements in the seat cover can be achieved by following the smoothing process. The examples in the document show the natural characteristics of leather on the front seat cushion. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

Customer Symptoms

CUSTOMER SYMPTOMS

Seat Cushions Creasing

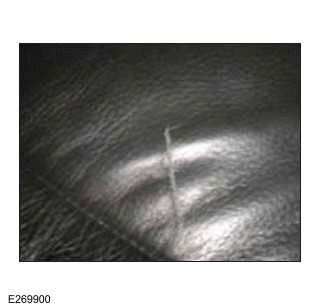

Examples of appearance showing the maximum allowable appearance. The outside of the seat cushion cannot be worse than the following image.

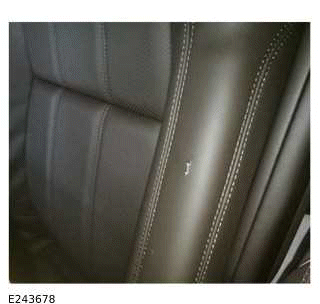

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

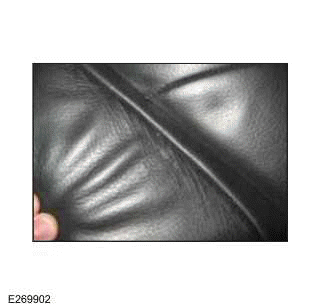

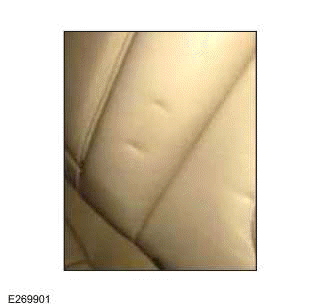

Creasing due to wear and tear

Seat Cover Inspection

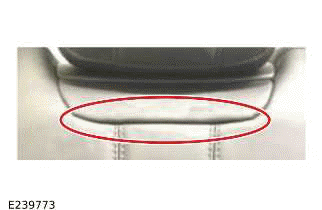

Uneven appearance on the front of the cushion cannot be worse than the following image.

Seat Cover Inspection

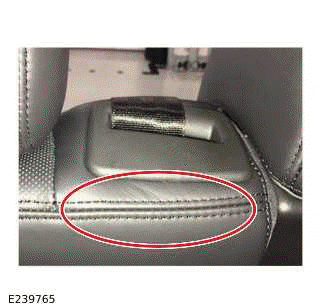

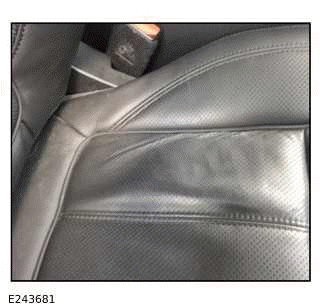

Creasing and seam movement around radius cannot be worse than the following image.

Seat Cover Inspection

The creasing on the front of the cushion cannot be worse than the following image.

Seat Cover Inspection

Seat Backrest Creasing

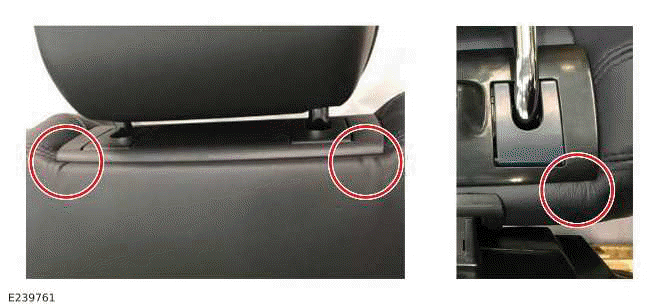

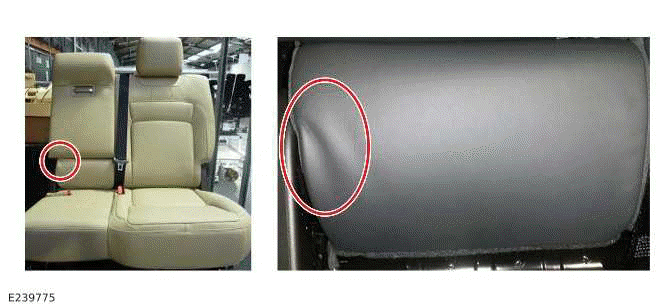

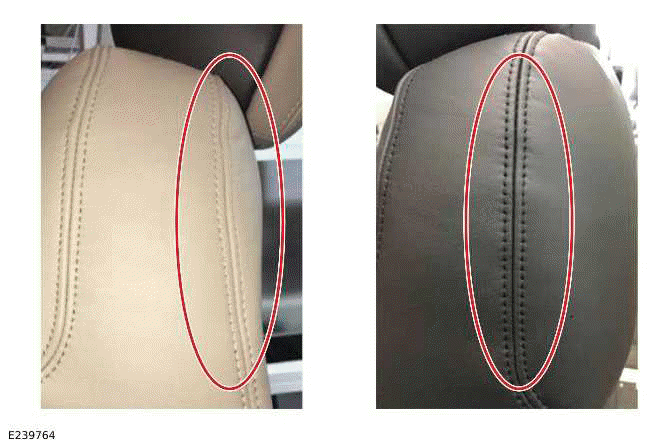

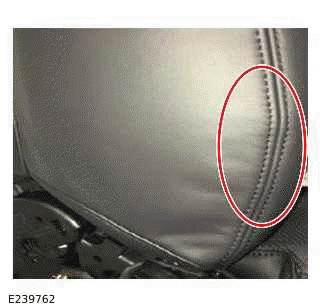

Backrest at the rear of the head restraint cannot be worse than the following images.

Seat Cover Inspection

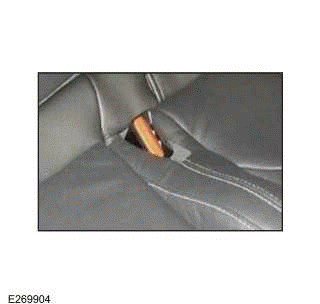

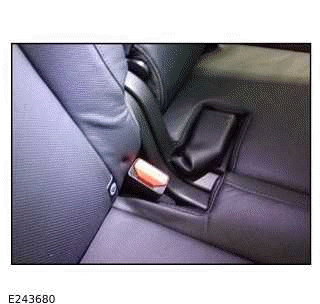

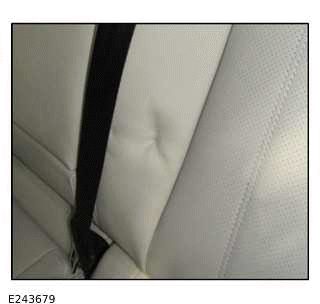

Creasing around the seatbelt stalk cannot be worse than the following image.

Seat Cover Inspection

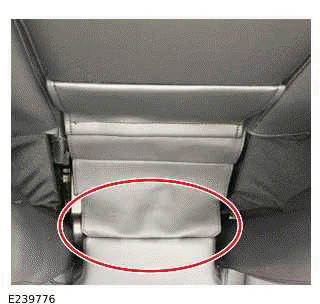

The centre back section on the seat backrest cannot be any worse than the following images.

Seat Cover Inspection

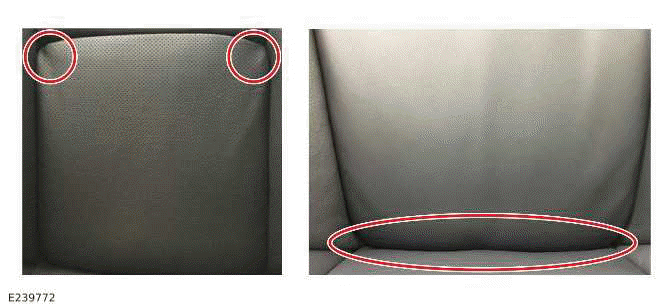

The square back section on the seat backrest cannot be worse than the following images.

Seat Cover Inspection

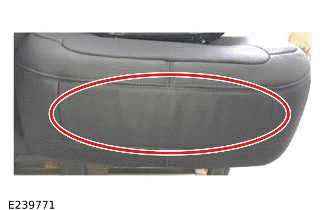

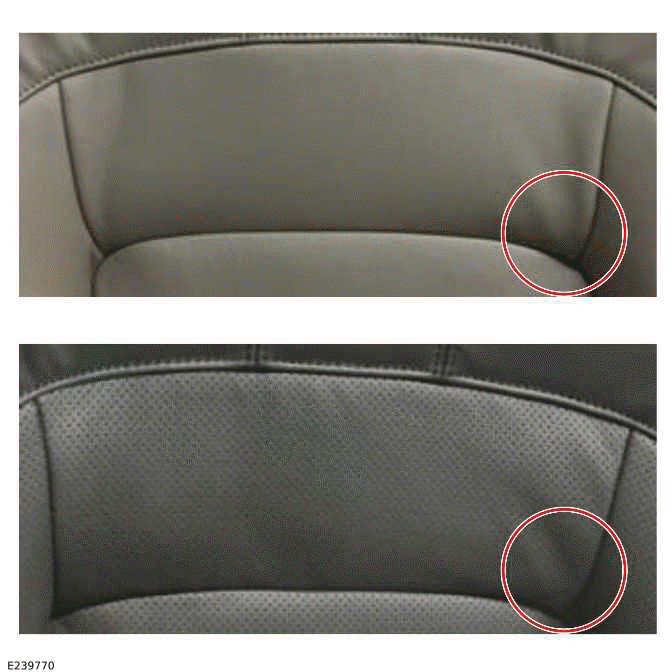

The front panel below the head restraint may appear to be wavy, it cannot be worse than the following image.

Seat Cover Inspection

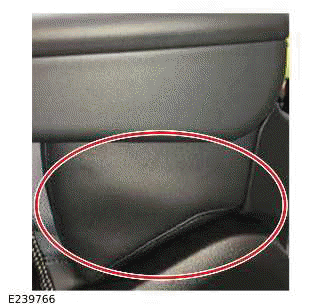

The area below the lower armrest cannot be worse than the following image.

Seat Cover Inspection

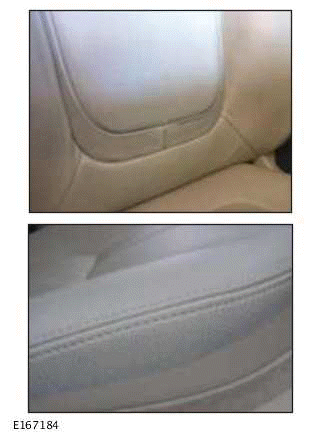

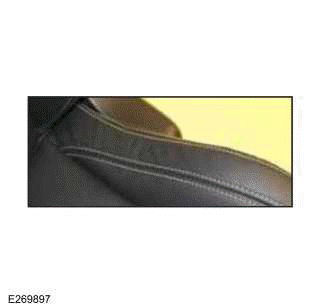

Backrest side (armrest side rear face) creasing sewing variation in radius cannot be worse than the following images.

Seat Cover Inspection

Creasing between the bottom of the seat and the armrest cannot be worse than the following image.

Seat Cover Inspection

Creasing armrest gap is not a defect due to the folding operation of the armrest.

Seat Cover Inspection

Permanent Marks

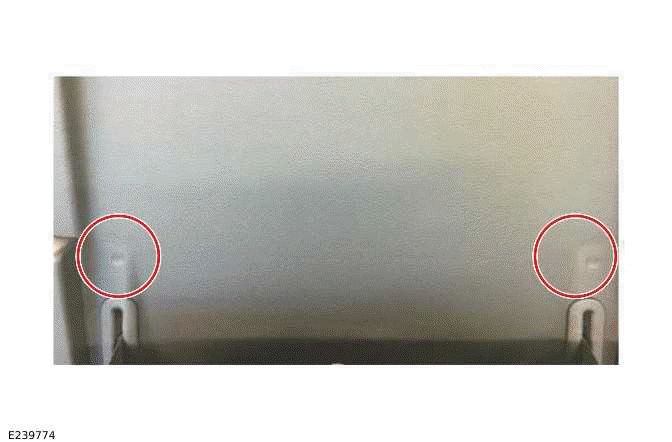

Permanent mark from the map pocket stops (if equipped) cannot be worse than the image below.

Seat Cover Inspection

Wavy Seam Lines

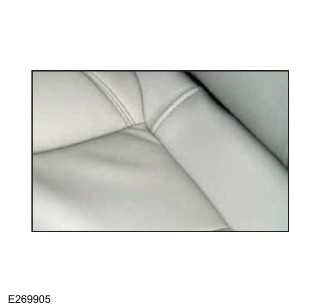

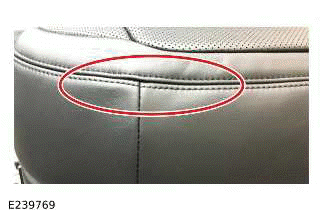

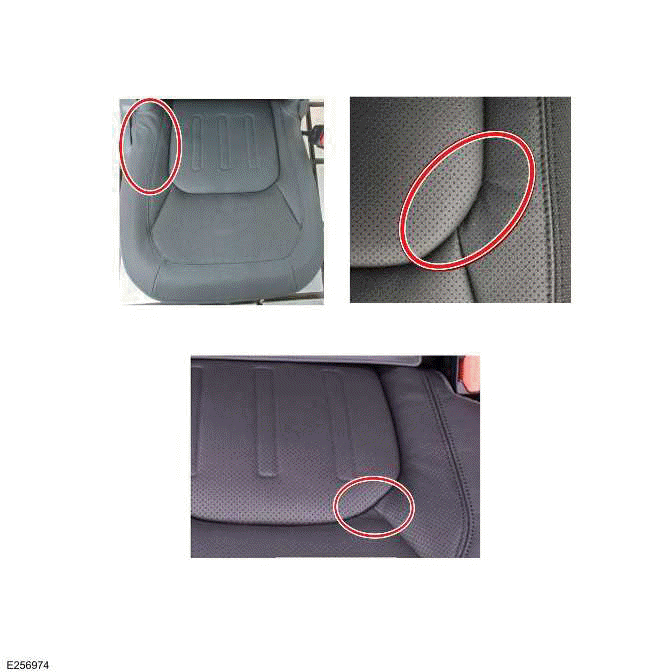

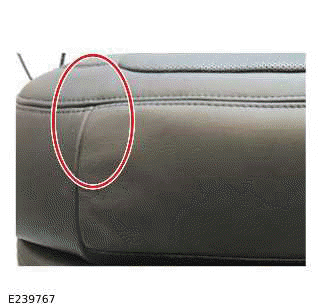

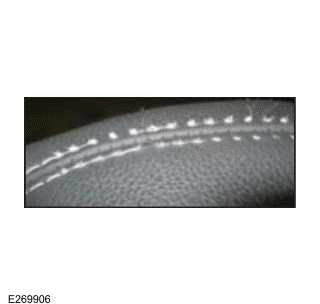

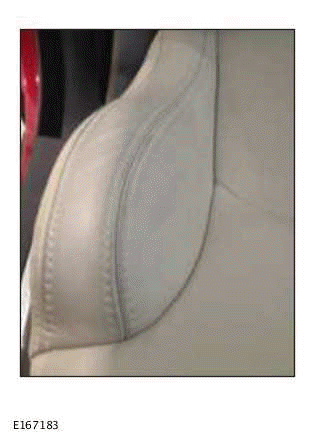

Waviness appearance on the bottom corner of the seat bolster cannot be worse that the following images.

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

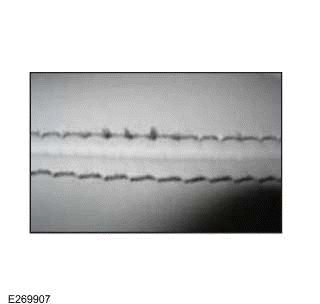

Stich/Thread Wear

Seat Cover Inspection

Seat Cover Inspection

NON-MANUFACTURING DEFECT GUIDELINES

Examples of damage to seat cover

Below are some examples of damage that would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

NOTE: These are examples only and do not represent all warrantable/non warrantable customer concerns

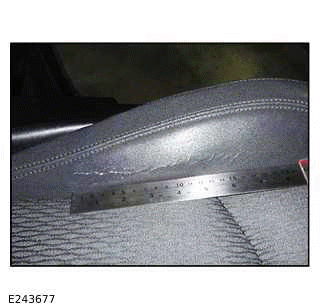

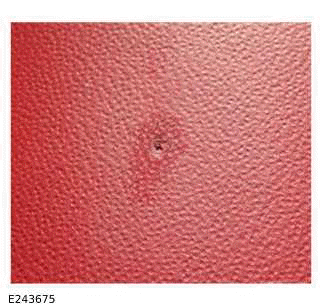

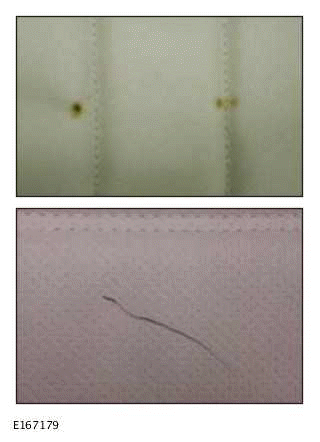

Cuts, Scratches, Scrapes, Abrasions, Tears and Puncture holes

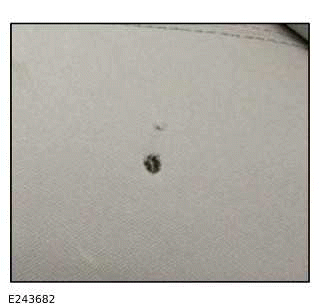

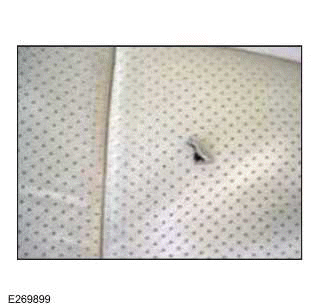

The examples below show damage such as cuts, tears and puncture holes. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Indentation Marks

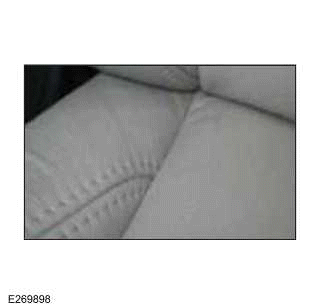

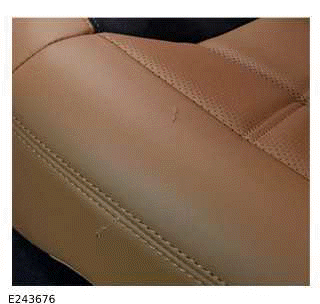

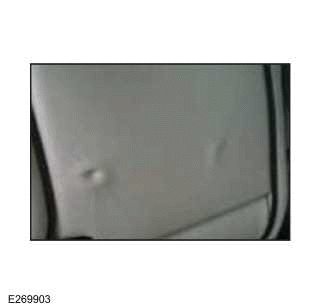

The examples below show damage such as scratches, scrapes, snags and indentation marks. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

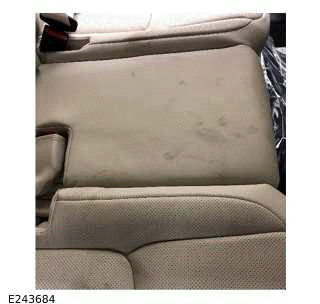

Dye Migration, Pen marks, Visual surface burns, Soiling, Spillages or Satins and incorrect cleaning

The examples below show damage such as pen marks, soiling, stains, incorrect cleaning and visual surface burns.

These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection

Leather Cracking/Splitting

The examples below show damage such as Leather cracking/splitting. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement

Seat Cover Inspection

Seat Cover Inspection

Seat Cover Inspection
