Land Rover Defender: Seats - [+] 6 Seat Configuration - Component Location

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Seats - [+] 6 Seat Configuration / Seats - [+] 6 Seat Configuration - Component Location

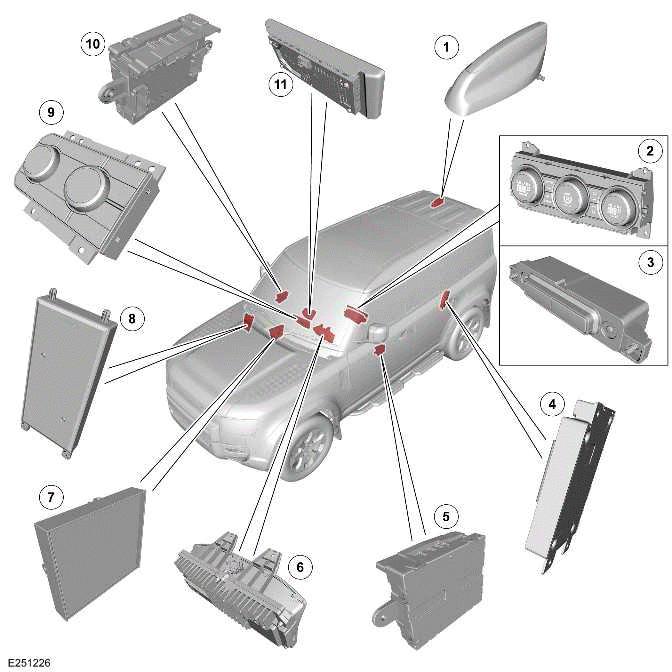

COMPONENT LOCATION - 1 OF 7 - SEAT ADJUSTMENT CONTROL MODULES

NOTES:

Seats - [+] 6 Seat Configuration

  1. Roof pod
  2. Rear Integrated Control Panel (FCIMB) (if equipped)
  3. Second row seat heater switch (if equipped)
  4. Telematics Control Module (TCU)
  5. Driver Door Control Module (DDM)
  6. Instrument Panel Cluster (IPC)
  7. Heating, ventilation, and air conditioning (HVAC) control module
  8. Body Control Module (BCM)/ Gateway Control Module (GWM)
  9. Integrated Control Panel (FCIM)
  10. Passenger Door Control Module (PDM)
  11. Touch Screen (FCDIM)

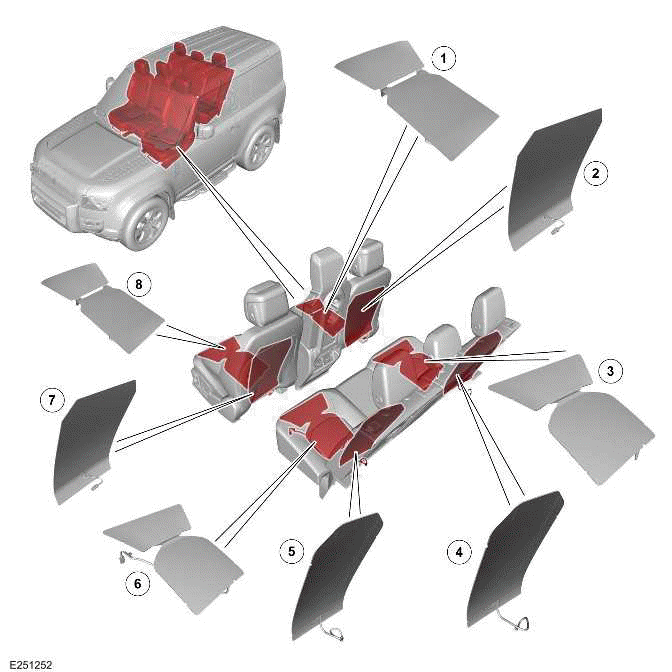

COMPONENT LOCATION - 2 OF 7 - SEAT HEATER - IF EQUIPPED

NOTE: Vehicle with 5 doors is shown, vehicle with 3 doors is similar.

Seats - [+] 6 Seat Configuration

  1. Front row seat heated cushion - Right
  2. Front row seat heated backrest - Right
  3. Second row seat heated cushion - Right
  4. Second row seat heated backrest - Right
  5. Second row seat heated backrest - Left
  6. Second row seat heated cushion - Left
  7. Front row seat heated backrest - Left
  8. Front row seat heated cushion - Left

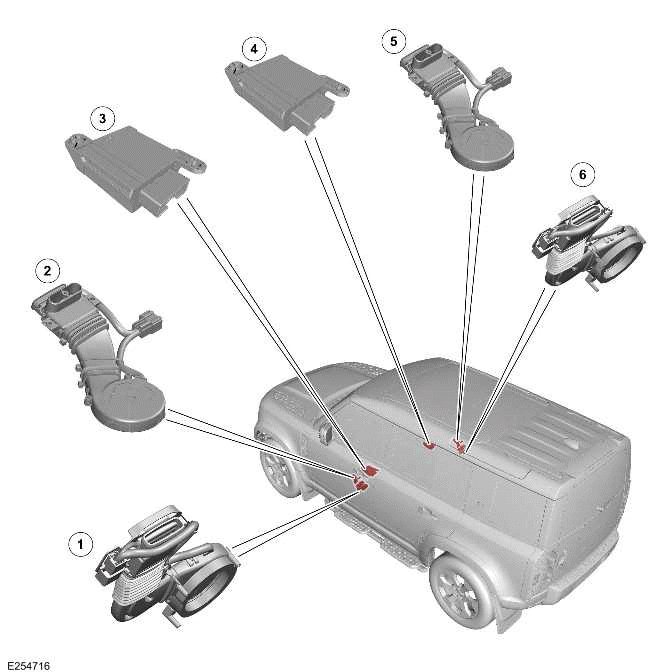

COMPONENT LOCATION - 3 OF 7 - FRONT ROW CLIMATE SEAT

NOTES:

Seats - [+] 6 Seat Configuration

  1. Front row climate seat backrest - Left
  2. Front row climate seat cushion - Left
  3. Seat Climate Control Module (SCME) - Driver
  4. SCME - Passenger
  5. Front row climate seat cushion - Right
  6. Front row climate seat backrest - Right

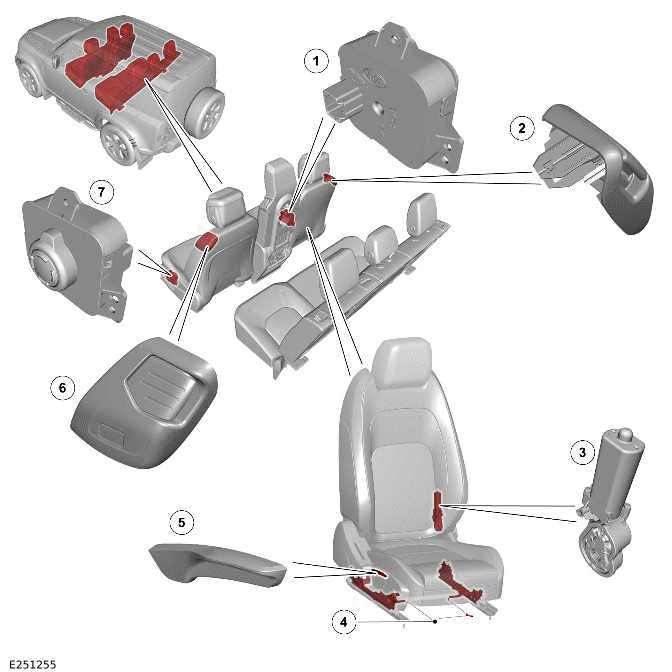

COMPONENT LOCATION - 4 OF 7 - FRONT ROW SEAT - VEHICLE WITH 3 DOORS ONLY

Seats - [+] 6 Seat Configuration

  1. Front row seat switchpack - Right
  2. Front row seat eit mode switch - Right
  3. Front row seat backrest recline motor (quantity 2)
  4. Front row seat forward/rearward adjustment lever (quantity 2)
  5. Front row seat height adjustment lever (quantity 2)
  6. Front row seat exit mode switch - Left
  7. Front row seat switchpack - Left

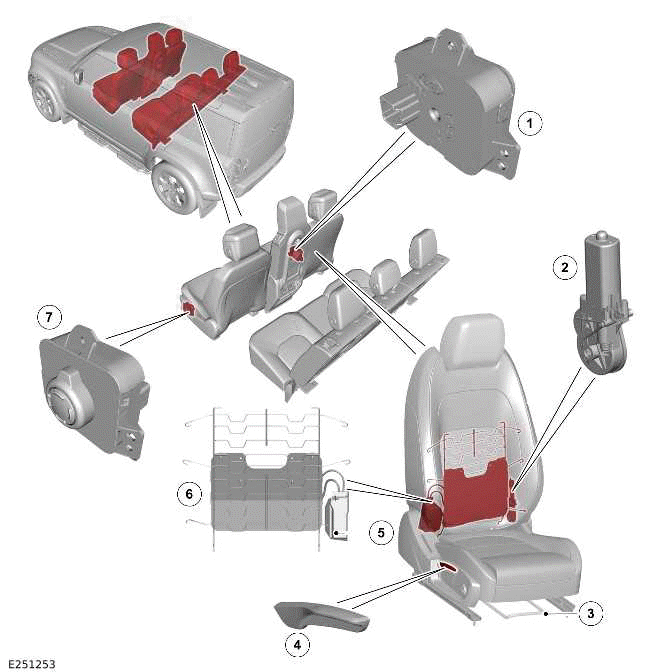

COMPONENT LOCATION - 5 OF 7 - SEMI-POWERED 12-WAY SEAT ADJUSTMENT - VEHICLE WITH 5 DOORS ONLY

Seats - [+] 6 Seat Configuration

  1. Front row seat switchpack - Right
  2. Front row seat backrest recline motor - Right
  3. Front row seat forward/rearward adjustment lever (quantity 2)
  4. Front row seat height adjustment lever (quantity 2)
  5. Front row seat lumbar air pump (quantity 2)
  6. Front row seat 4 way lumbar system (quantity 2)
  7. Front row seat switchpack - Left

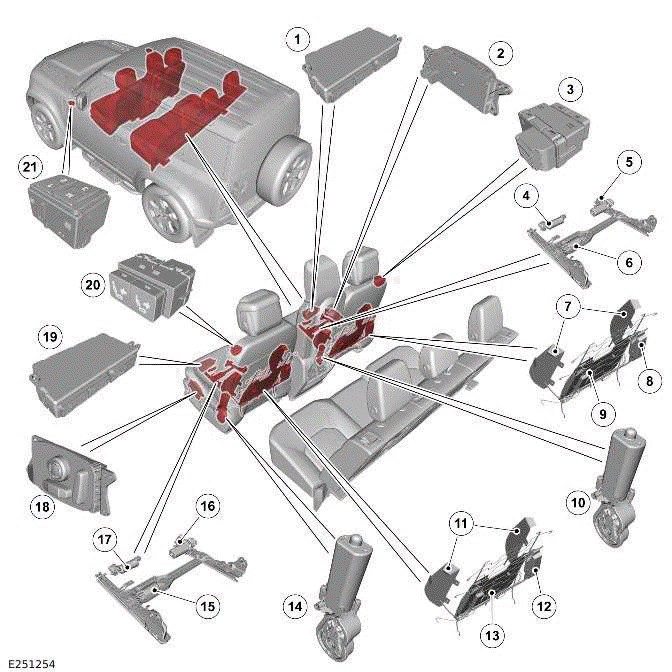

COMPONENT LOCATION - 6 OF 7 - POWER SEAT ADJUSTMENT WITH SEAT MEMORY SWITCHPACK - VEHICLE WITH 3 DOORS ONLY

NOTE: Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.

Seats - [+] 6 Seat Configuration

  1. Seat Module - Driver/Passenger/Rear - Left/Right (DSM)
  2. Front row seat switchpack - Right
  3. Front row easy entry switch - Right
  4. Front row seat cushion tilt motor - Right
  5. Front row seat height motor - Right
  6. Front row seat forward/rearward motor - Right
  7. Inflatable bolsters - Right
  8. Front row seat lumbar air pump - Right
  9. Front row seat air reservoir valve block - Right
  10. Front row seat backrest recline motor - Right
  11. Inflatable bolsters - Left
  12. Front row seat lumbar air pump - Left
  13. Front row seat air reservoir valve block - Left
  14. Front row seat backrest recline motor - Left
  15. Front row seat forward/rearward motor - Left
  16. Front row seat cushion tilt motor - Left
  17. Front row seat height motor - Left
  18. Front row seat switchpack - Left
  19. Seat Module - Driver/Passenger/Rear - Left/Right (PSM)
  20. Front row easy entry switch - Left
  21. Seat memory switchpack (quantity 2)
  22.

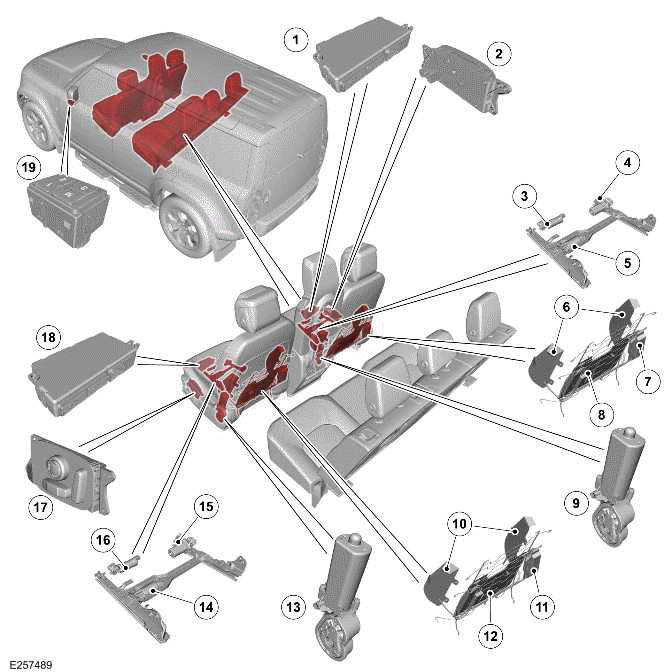

COMPONENT LOCATION - 7 OF 7 - POWER SEAT ADJUSTMENT WITH SEAT MEMORY SWITCHPACK - VEHICLE WITH 5 DOORS ONLY

NOTE: RHD is shown, LHD is similar.

Seats - [+] 6 Seat Configuration

  1. DSM
  2. Front row seat switchpack - Right
  3. Front row seat cushion tilt motor - Right
  4. Front row seat height motor - Right
  5. Front row seat forward/rearward motor - Right
  6. Inflatable bolsters - Right
  7. Front row seat lumbar air pump - Right
  8. Front row seat air reservoir valve block - Right
  9. Front row seat backrest recline motor - Right
  10. Inflatable bolsters - Left
  11. Front row seat lumbar air pump - Left
  12. Front row seat air reservoir valve block - Left
  13. Front row seat backrest recline motor - Left
  14. Front row seat forward/rearward motor - Left
  15. Front row seat cushion tilt motor - Left
  16. Front row seat height motor - Left
  17. Front row seat switchpack - Left
  18. PSM
  19. Seat memory switchpack (quantity 2)
