Land Rover Defender: Second Row Seatbelt Retractor - 110
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
WARNING:
NOTE:
- Note the orientation of the components.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations for right side components, left
side components are similar.
1. Before handling any components within the Supplementary Restraint System
(SRS), make sure that the
safety guidelines are followed.
2. Disconnect the startup battery ground cable.
3. Remove the right loadspace trim panel.
4. Remove the C-pillar upper trim panel.
5.
.png)

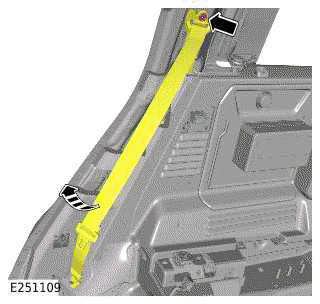

- Remove the upper seatbelt anchor bolt.
- Release the upper seatbelt anchor point.
- Release the second row seatbelt.
6.
.png)

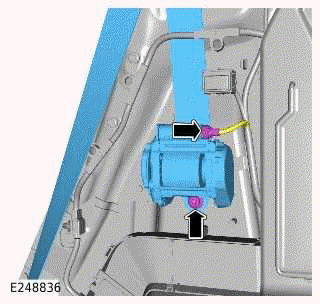

- Disconnect the electrical connector.
- Remove and discard the bolt.
- Remove the second row seatbelt retractor.
INSTALLATION

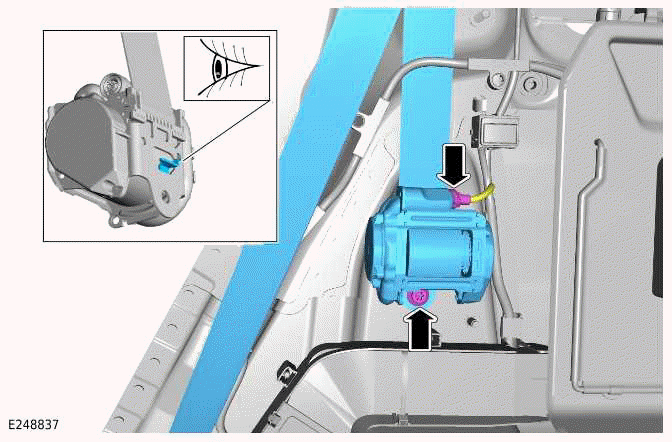

1.
CAUTION:
Make sure that the component is correctly located.
.png)
2.
- Install and tighten the upper seatbelt anchor point bolt.
Torque: 40Nm
3. Install the C-pillar upper trim panel.
4. Install the right loadspace trim panel.
5. Connect the startup battery ground cable.
