Land Rover Defender: Tire repair system safety
Make sure the following warnings have been read and fully understood before using the tire repair system. Failure to follow the guidance given could affect vehicle safety, leading to serious injury or death.
Some tire damage may only be partially sealed, or may not seal at all, depending on the amount and type of damage. Any loss of tire pressure can seriously affect vehicle safety.
Do not use the tire repair system if the tire has been damaged by driving while under-inflated.
Check the tire's sidewall before inflating the tire. If any cracks, damage, or deformities are apparent, do not inflate the tire.
Watch the tire's sidewall during inflation. If any cracks, bumps, or similar damage or deformities appear, switch off the compressor and deflate the tire.
Do not continue to use the tire.
Do not exceed 50 mph (80 km/h) when a repaired tire is fitted to the vehicle.
The maximum distance that should be driven when a repaired tire is fitted is 124 miles (200 km).
When a repaired tire is fitted, drive with caution. Avoid sudden braking or steering maneuvers.
Only use the tire repair system for the vehicle with which it was supplied.
Do not use the tire repair system for any other purpose than tire r
Only use the tire repair system within the -22ºF to 158ºF (-30ºC to +70ºC) temperature range.
Always keep children and animals at a safe distance from the tire repair system when in use.
Always monitor the tire repair system at a safe distance from the compressor.
Do not stand directly beside the compressor when it is operating.
Never leave the tire repair system unattended when in use.
TIRE REPAIR SYSTEM
Make sure the relevant safety warnings have been read and understood before driving the vehicle.
A tire repair system is supplied for vehicles without a spare wheel. The tire repair system is stored under the loadspace floor panel.
Note: Vehicles supplied with a tire repair system may not have a jack and lug wrench fitted as standard equipment.

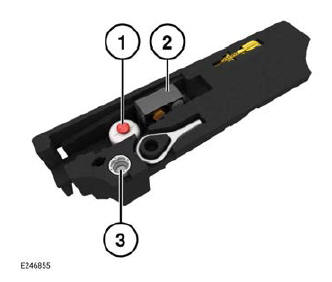

- Sealant bottle.
- Compressor.
- Locking lug nut adapter.
The tire repair system can be used to repair one punctured tire.
The tire repair system seals most punctures with a maximum diameter of 6 mm, if the puncture is within the tread area (A).
Only use the tire repair system to seal damage located within the tire tread area (A). Carrying out tire repairs outside of the tire tread area (A) could cause the tire to fail, leading to serious injury or death.
Note: The sealant used in the tire repair system has a shelf life. The expiry date is shown on the sealant bottle. Make sure that the sealant bottle is replaced before the expiry date. Also make sure that the sealant bottle and inflation hose are replaced after each use.
