Land Rover Defender: Air Suspension Reservoir
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
PART(S)
REMOVAL
WARNING:
Residual air pressure may be present in the system. Take care when releasing air
line connectors.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from
foreign material. When
disconnected all openings must be sealed.
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Use the Jaguar Land Rover (JLR) approved diagnostic equipment,
depressurize air suspension system.
General Equipment: Jaguar Land Rover approved diagnostic equipment
3. Remove the rocker panel.
4. Remove the right side undershield.

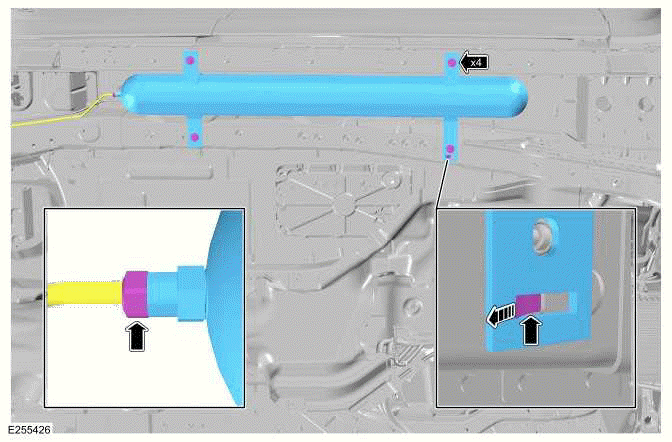

5.
- Disconnect the air line from the air suspension reservoir.
- Remove the 4 bolts.
- Release the air suspension reservoir at the clip.
- Remove the air suspension reservoir.
INSTALLATION
1.
- Install the air suspension reservoir.
- Install and tighten the 4 bolts.
Torque: 24Nm
2. Renew the air line connector.
Renew Part: Air line connector(s) Quantity: 1.
Torque: 5Nm
3. Install the right side undershield.
4. Install the rocker panel.
5.
CAUTION:
This step must be completed before the vehicle is fully lowered. Failure to
follow this instruction
might result in damage to the component.
Use the Jaguar Land Rover (JLR) approved diagnostic equipment complete the
air suspension manual
control procedure.
General Equipment: Jaguar Land Rover approved diagnostic equipment
6.
CAUTION:
This step must be completed in order to maintain the correct air suspension
compressor/dryer
performance.
Use the JLR approved diagnostic equipment, pressurize the air suspension
system.
General Equipment: Jaguar Land Rover approved diagnostic equipment
