Land Rover Defender: Alpine Window
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
JLR-501-176
Fiber-lined Glass Removal Tool Kit
REMOVAL
CAUTIONS:
- Place the glass on felt covered supports with the locating studs
facing up. Do not stand on edge as this
can cause chips which subsequently develop into cracks.
- Protect the surrounding paintwork to avoid damage.
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This component is available in multiple variations. Before the alpine
window is removed, check the part
numbers for a correct application.
1. Disconnect the startup battery ground cable.
2. Remove the headliner.
3. Remove the roof panel mouldings.
4.

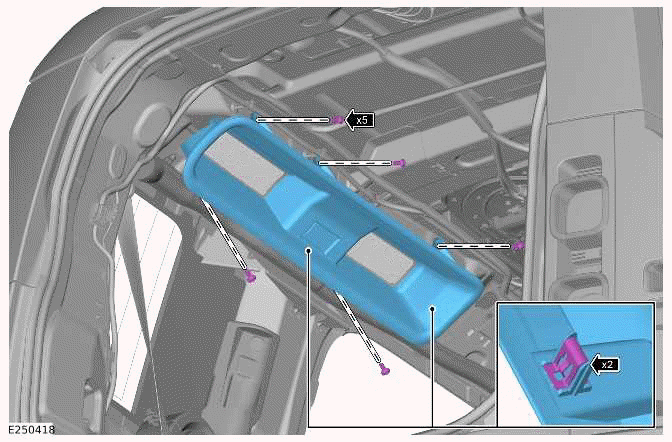

- Remove the 5 screws.
- Remove the alpine window interior trim.
5.

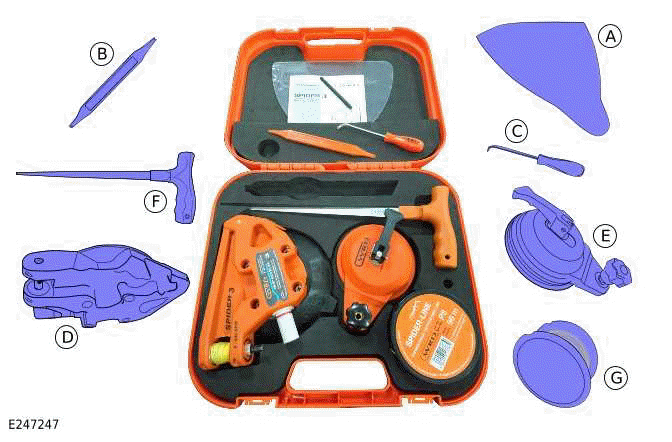

- The illustration is used to index the contents of the fiber-lined glass
removal special tool.
- Make sure that the contents of the fiber-lined glass removal special
tool kit are complete and no items
are damaged or missing.
- Consult the instruction manual supplied with the fiber-lined glass
removal special tool before
commencing the removal of the alpine window.
- (A) Instrument Panel protector
- (B) Cutting fiber threading tool
- (C) Pick
- (D) Spider cutting tool
- (E) Anchor suction tool
- (F) Cutting fiber install tool
- (G) Cutting fiber
6.
7.

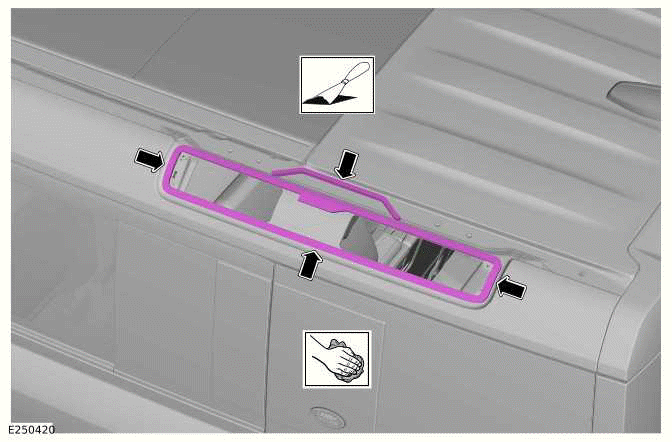

Use suitable tools and remove all residual sealant from the body.
INSTALLATION
1.

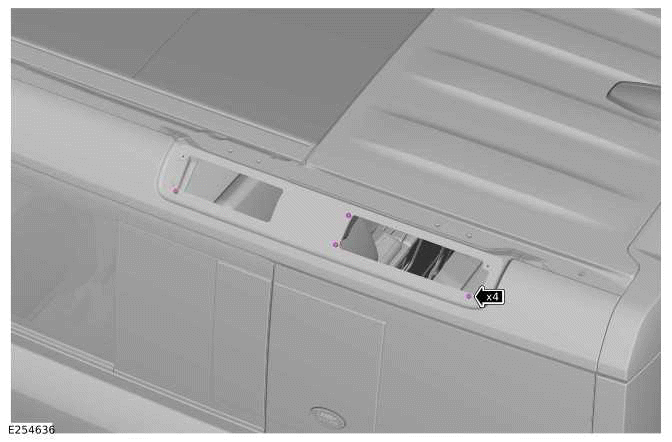

Install the 4 spacers to the body as illustrated.
2.

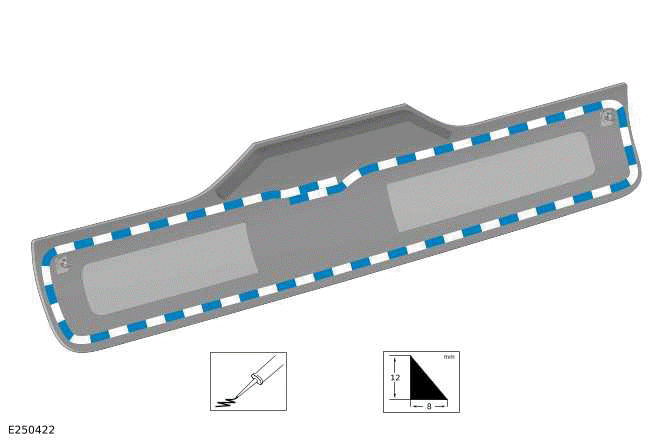

Follow the instructions included with the Jaguar Land Rover PU adhesive
sealant kit and apply sealant to
the areas illustrated. Make sure to use Polyurethane SIKA JLR-5, or if not
available use an equivalent JLR
approved PU adhesive kit.
3.
CAUTIONS:
- Make sure that the PU adhesive only touches the body at the
designated areas. New PU
adhesive sealant needs to be applied to the alpine window if the PU adhesive
sealant is
accidentally disturbed.
- Make sure that the mating faces are clean and free of foreign
material.
- Make sure that no excess sealant residue is evident.
- Make sure to apply even pressure along the edges of the alpine
window.
NOTE:
This step requires the aid of another technician.

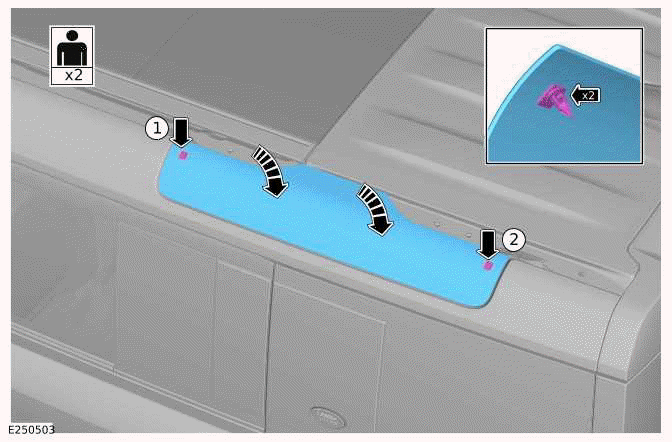

With assistance, install the alpine window in the sequence illustrated. An
audible click is heard when a clip
is properly installed.
4.

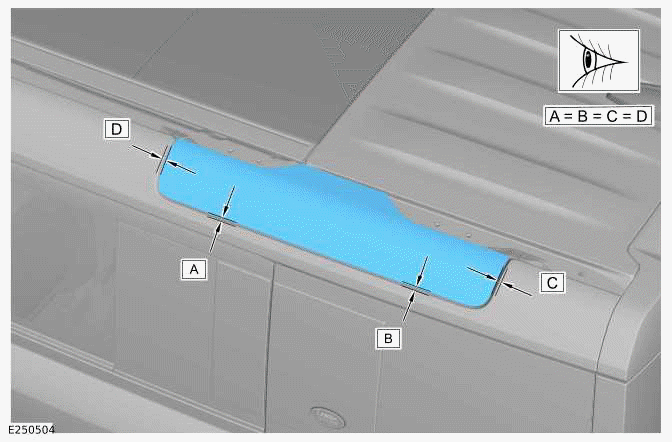

Check if the gaps around the edges of the alpine window are even.
5.
CAUTIONS:
- Wait at least 2 hours to allow the PU adhesive to dry before applying
water to the alpine window.
- Do not use high pressure water equipment to complete this step.

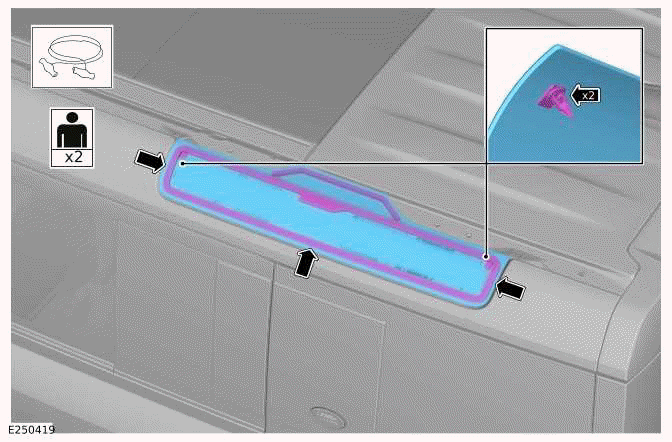

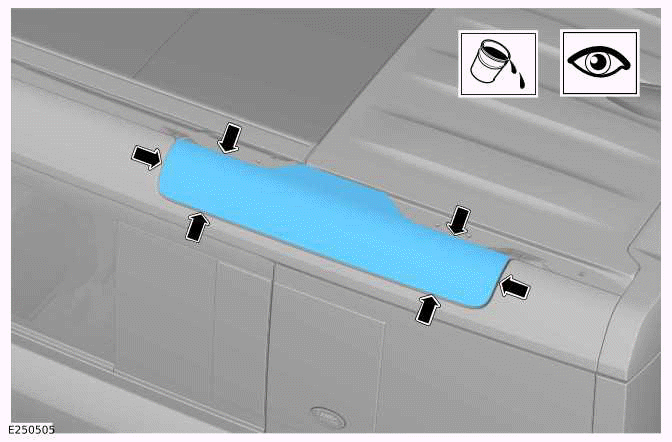

- Apply water around the alpine window at the areas illustrated. Mark any
area that shows water
ingress.
- If the check fails and water ingress is evident, remove the alpine
window and repeat the installation
procedure. Do not attempt to apply additional sealant to areas that show
water ingress.
6. Install the roof panel mouldings.
7. Install the headliner.
8. Connect the startup battery ground cable.
