Land Rover Defender: Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Land Rover Defender 2020-2024 Service Manual / Electrical / Battery and Charging System / Battery, Mounting and Cables - Vehicles With: Non-Electric Vehicles / Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

DIAGNOSIS AND TESTING

PRINCIPLES OF OPERATION

For a detailed description of the battery system and operation, refer to the relevant Description and Operation section of the workshop manual. REFER to: Battery and Cables.

INSPECTION AND VERIFICATION

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTES:

  1. Verify the customer concern
  2. Visually inspect for obvious signs of mechanical or electrical damage

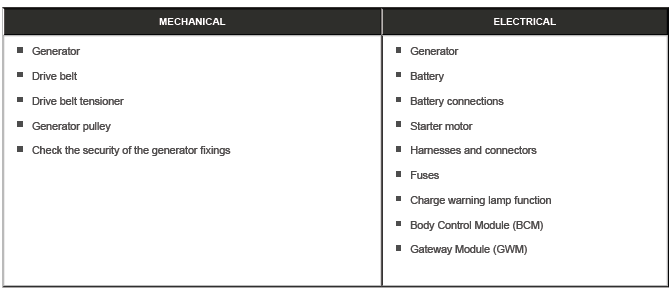

Visual Inspection

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  2. If the cause is not visually evident check for Diagnostic Trouble Codes ( DTCs) and refer to the DTC Index
  3. Check the Jaguar Land Rover claims submission system for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and complete the recommendations as required

12 VOLT MIDTRONICS EXP-1080 JLR HAND-HELD BATTERY DIAGNOSTIC TOOL USER GUIDE

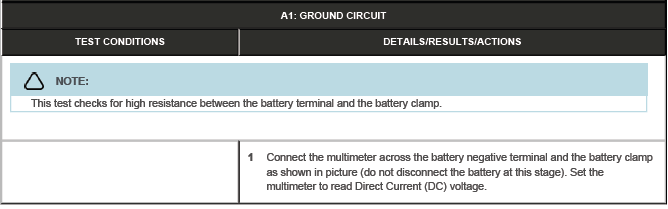

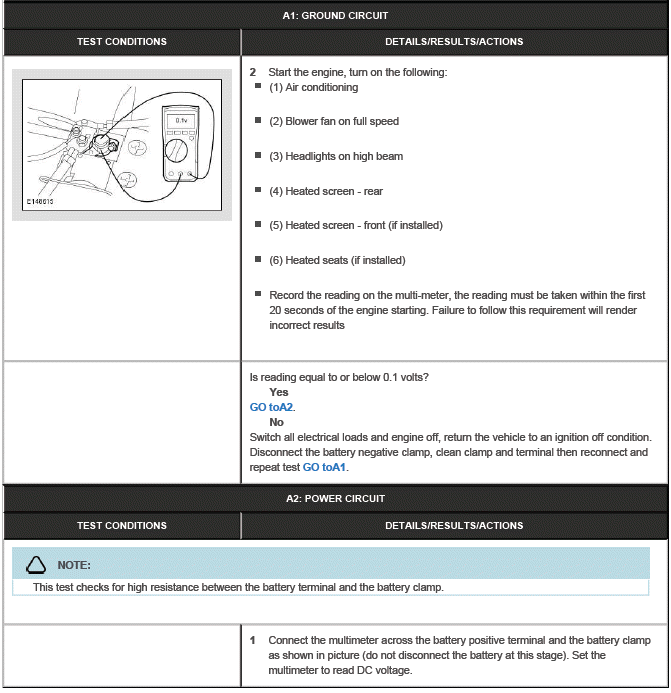

PINPOINT TEST A : VOLTAGE DROP ACROSS VEHICLE HARNESS AND BATTERY TERMINAL

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

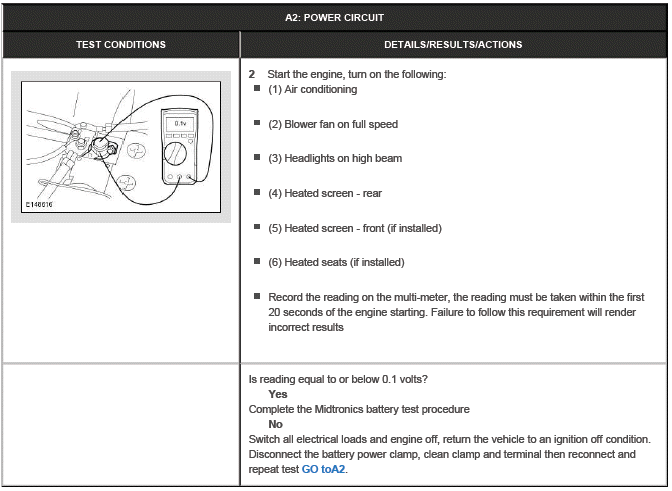

PINPOINT TEST A : VOLTAGE DROP ACROSS VEHICLE HARNESS AND BATTERY TERMINAL

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

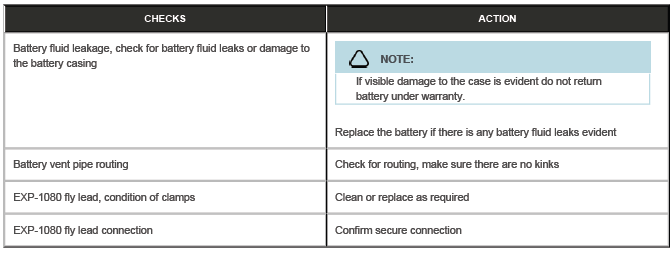

The following steps must be completed to facilitate correct operation of the EXP-1080 JLR hand-held battery diagnostic tool during the battery test procedure

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

NOTE: The Midtronics EXP-1080 JLR hand-held battery diagnostic tool is suitable for testing flooded and absorbed glass mat (AGM) type batteries including Primary and Secondary batteries.

Testing a Battery

Using the Midtronics EXP-1080 JLR hand-held battery diagnostic tool, the following test procedure will confirm the serviceability of the battery (see Completing a Battery Test)

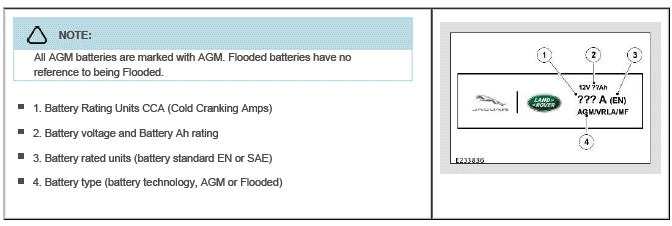

Battery Label Example

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Battery Test Types

The Midtronics EXP-1080 JLR hand-held battery diagnostic tool has three types of battery test available to the technician to select:

Battery Test

Pre-Delivery Inspection (PDI) / Storage

Battery Storage

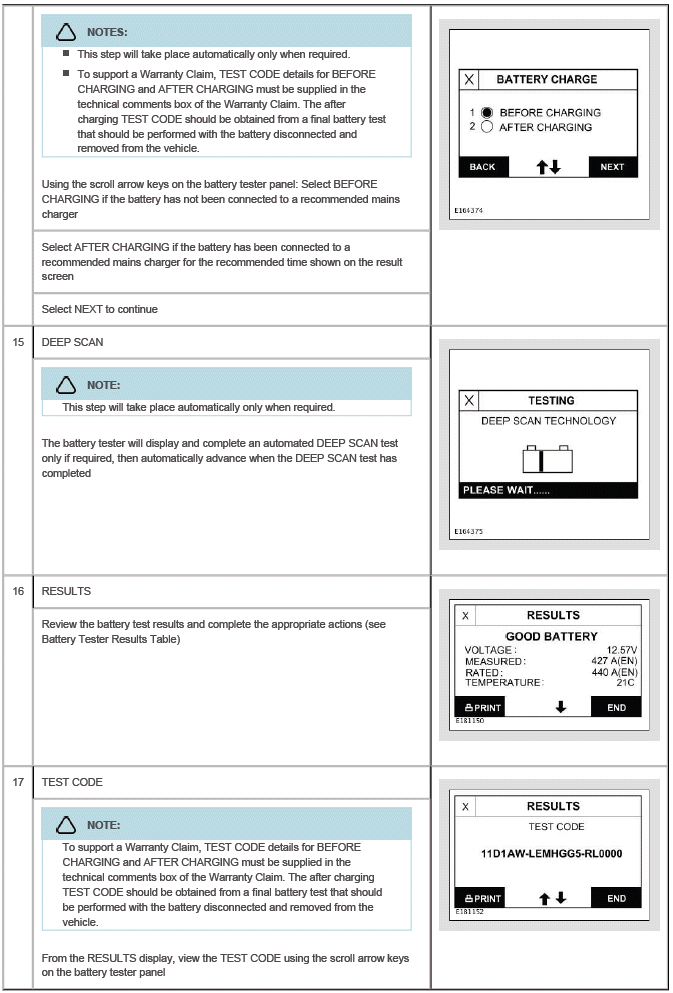

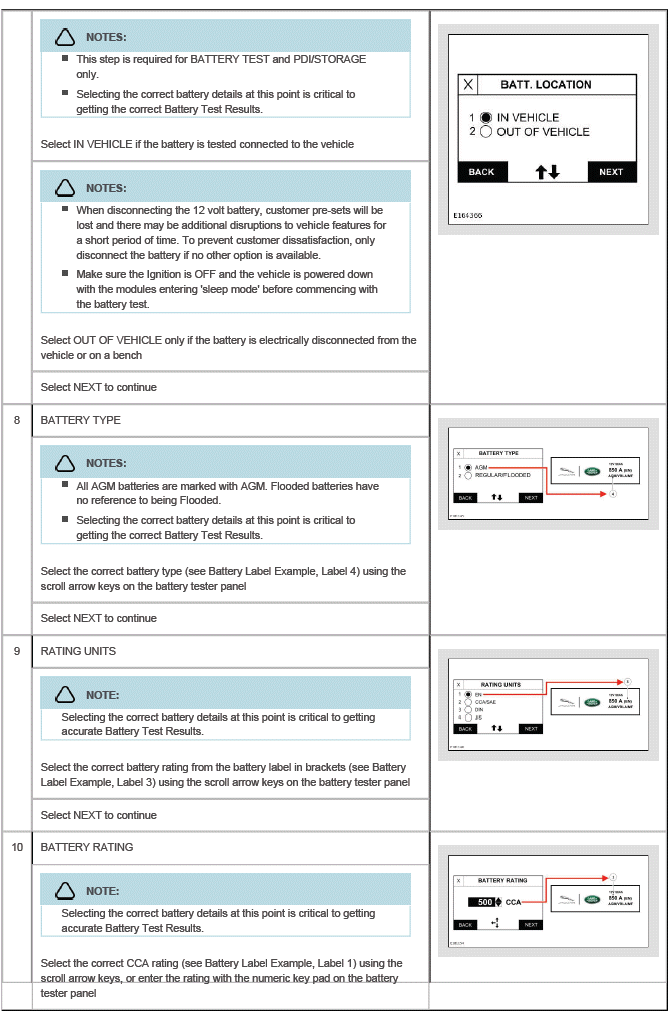

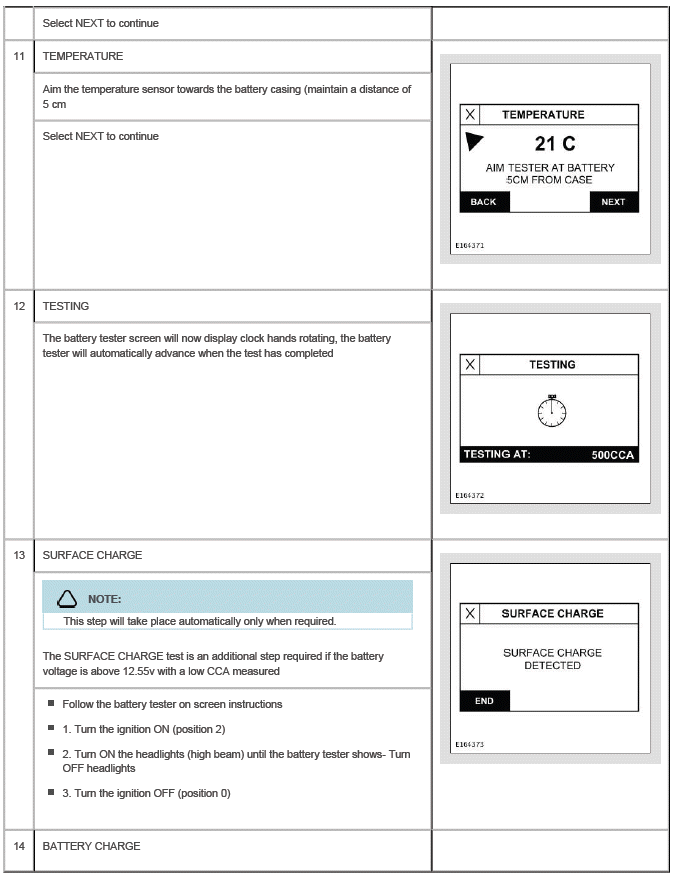

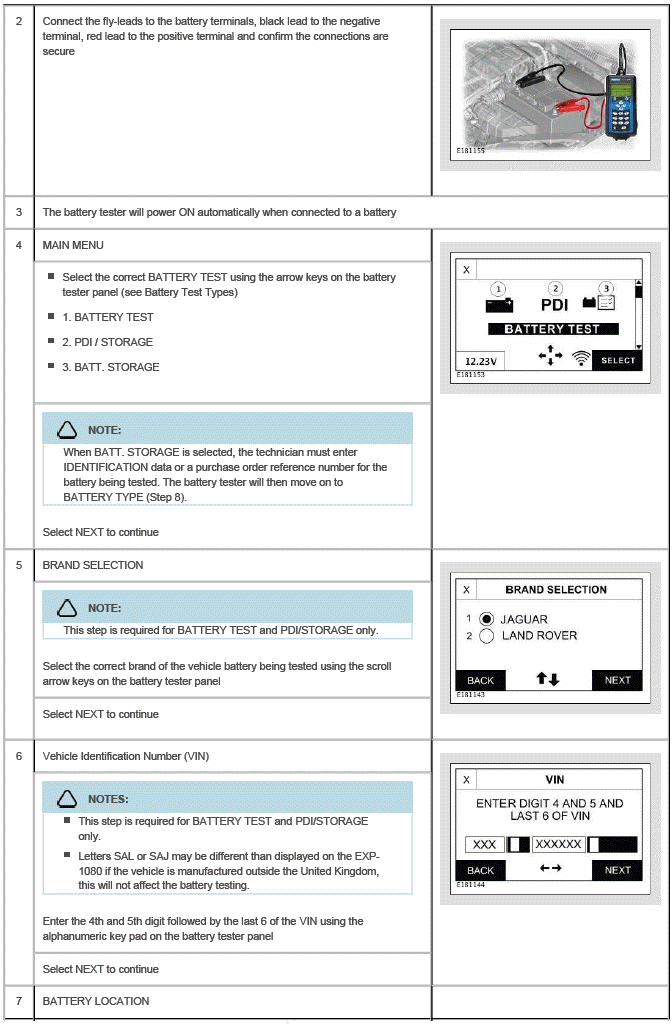

Completing a Battery Test

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

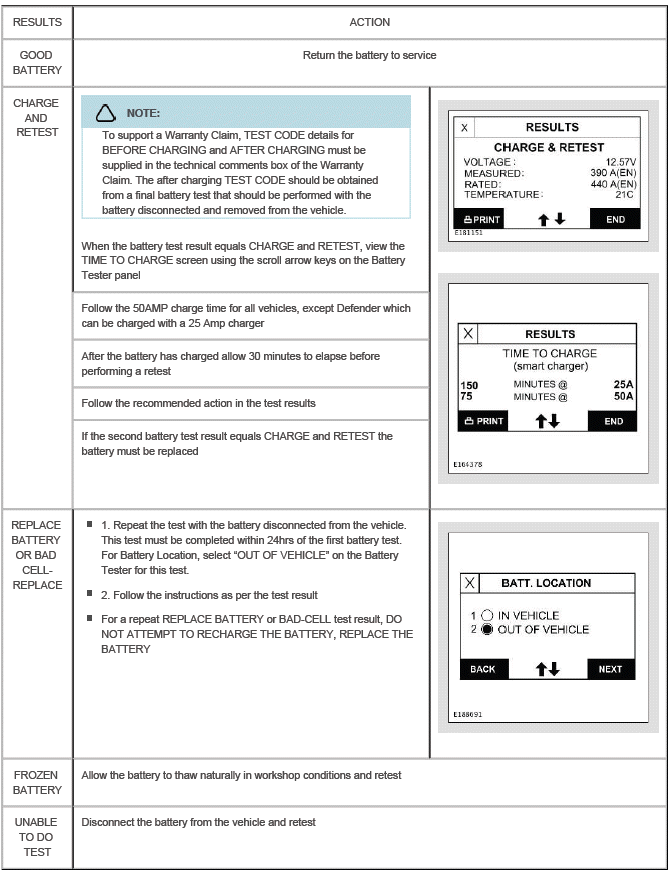

Battery Tester Results Table

Battery Diagnostics - 12 Volt Midtronics EXP-1080 JLR Hand-Held Battery Diagnostic Tool

Flooded Battery Care Point

If the vehicle is equipped with a flooded battery, make sure the replacement battery is a flooded battery of the same specification (cold cranking amperage (CCA), battery standard (EN/SAE) / amp hour rating (Ah) ) as the original battery

Under no circumstances should you fit a flooded battery to a vehicle that originally had an AGM battery, unless formally instructed by Jaguar/Land Rover

AGM Battery Care Point

If the vehicle is equipped with an absorbed glass mat (AGM) battery, make sure the replacement battery is a AGM battery of the same specification (cold cranking amperage (CCA), battery standard (EN/SAE) / amp hour rating (Ah) ) as the original battery, unless formally instructed by Jaguar/Land Rover
