Land Rover Defender: Brake Pads 2 Piston Floating Caliper
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
206-080
Brake caliper piston retractor tool
MATERIALS

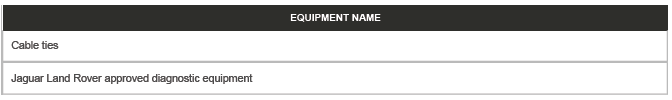

GENERAL EQUIPMENT
REMOVAL
WARNINGS:
- Brake pads must be renewed in axle sets only. Failure to follow this
instruction may result in braking
efficiency being impaired.
- If the brake pad wear warning indicator has been activated, a new
brake pad wear sensor must be
installed.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate
the Integrated Power Brake
assembly mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
2. Raise and support the vehicle on a suitable 2 post lift.
3. Remove the wheel and tire.
4.
CAUTION:
The brake pad wear sensor is easily damaged. Do not use a lever to remove the
sensor. Use
fingers only.
NOTE:
Left side only.

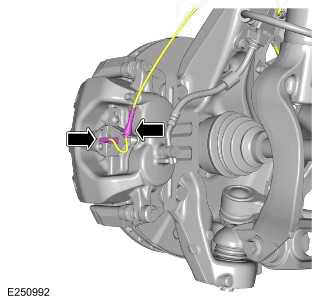

- Disconnect the brake pad wear sensor.
- Release the brake pad wear sensor grommet and position the component to
one side.
5.
6.

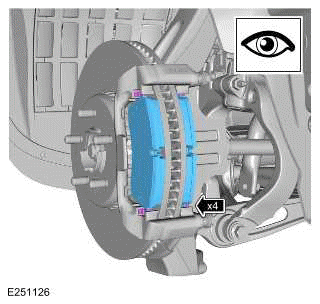

NOTE:
Note the orientation of the brake pads prior to removal.
Remove the 2 brake pads.
7. Repeat the above steps for the other side.
INSTALLATION
1.
WARNING:
Do not use compressed air to clean brake components. Dust from friction
materials can be harmful
if inhaled.

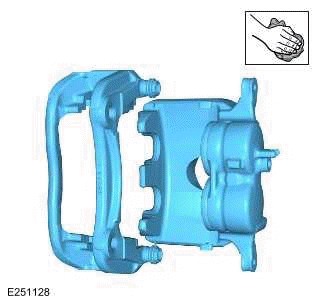

Use brake cleaner fluid to clean the brake caliper housing and brake caliper
carrier.
Material: Brake Cleaner (3U7J-2C410-AA)
2.
CAUTION:
As the piston is pushed back into the caliper housing, the brake fluid
level in the reservoir will rise.
Do not allow the reservoir to overflow.
Check the brake fluid reservoir level before pushing the piston back, failure to
follow this
instruction may result in damage to the vehicle.

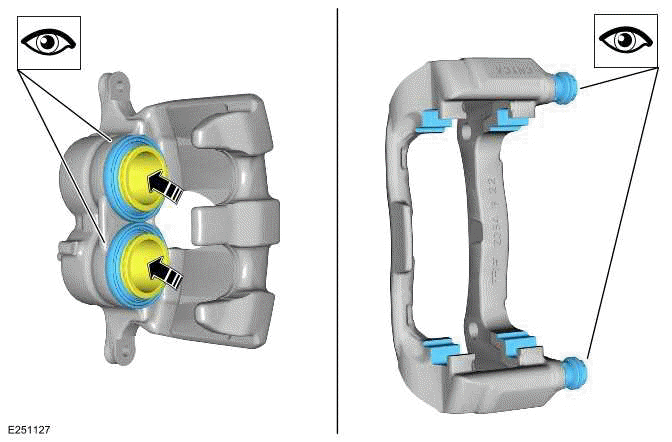

- Inspect the caliper piston, slide pin seals and brake pad contact points
for damage.
- Use the special tool to press the 2 brake caliper pistons into the brake
caliper housing.
Special Tool(s): 206-080
3.
CAUTION:
Make sure the brake pads are installed in the correct orientation.
- Install the anti-rattle spring.
- Install the brake pads.
4.

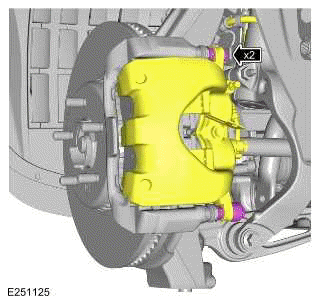

Install and tighten the 2 brake caliper slide pins.
Torque: 35Nm
5. Repeat the above procedure for the other side.
6.
NOTE: Left side only.
- Connect the brake pad wear sensor to the brake pad.
- Secure the brake pad wear sensor grommet.
7. Install the wheels and tires.
8.
CAUTION:
Failure to follow this instruction may lead to brake warning lamps and
Diagnostic Trouble Code(s)
(DTC) being set.
- NOTE:
Although the brake pedal might feel firm make sure to hold the pedal through
the 10
second period.
If the Integrated Power Brake unit - 'Assembly Mode' has not been
activated, press and hold the
brake pedal in a single apply for 10 seconds.
- If the brake pedal felt soft and fell to the floor proceed to substep 4.
- If the brake pedal felt firm proceed to substep 5.
- NOTE:
Make sure to repeatedly press the brake pedal until a firm brake pedal feel
is reached.
If the Integrated Power Brake unit - 'Assembly Mode' has been activated,
press the brake pedal
several times until a firm brake pedal feel is reached.
- Check the fluid level in the brake fluid reservoir and top-up with brake
fluid if necessary.
9. Use the JLR approved diagnostic equipment to deactivate the Integrated
Power Brake assembly mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
