Land Rover Defender: Certification and Tire Data Labels
NAS

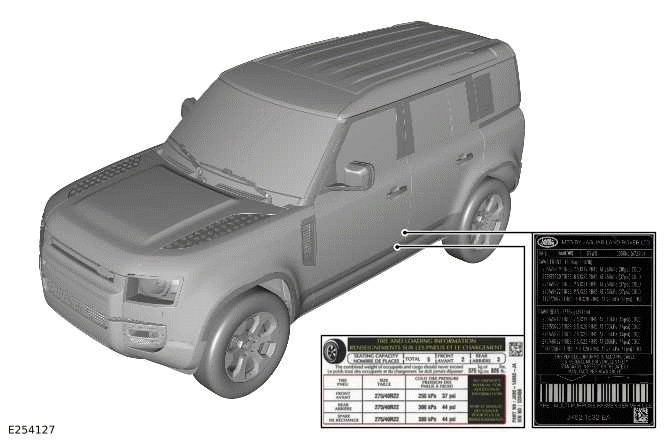

The Certification Label contains the VIN and bar code information.
Canada

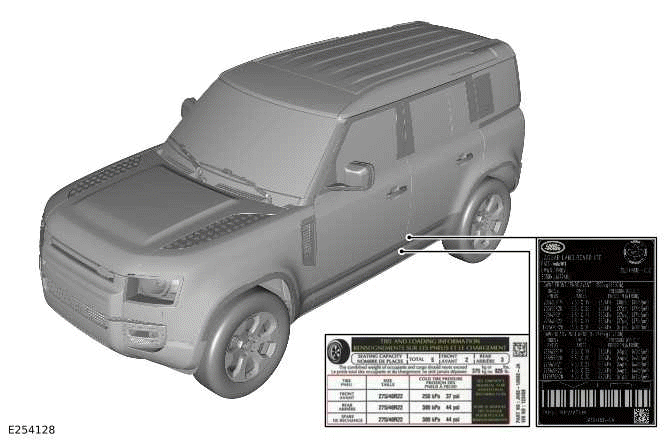

The Certification Label contains the VIN and bar code information.

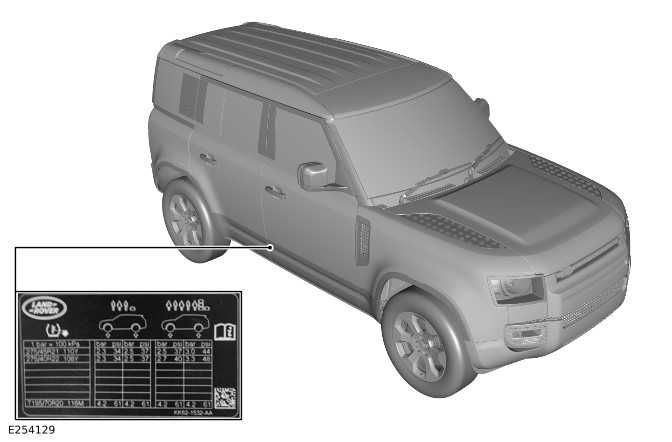

UK, Europe and Rest Of World (ROW)
ENGINE SERIAL NUMBERS
2.0L I4 Diesel Engine

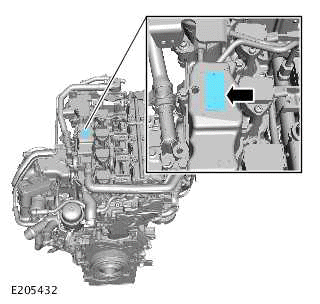

The engine serial number is visible on the cylinder block.
2.0L I4 Petrol Engine

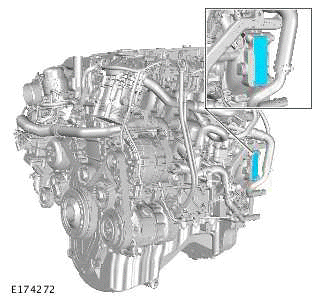

The engine serial number is visible on the engine vent oil separator.
3.0L I6 Petrol Engine

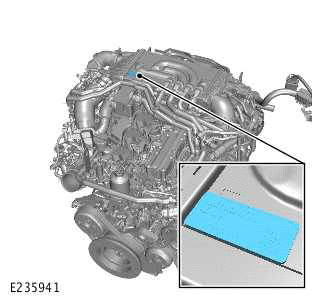

The engine serial number is visible on the charge air cooler.
TRANSMISSION SERIAL NUMBERS
Transmission Serial Number

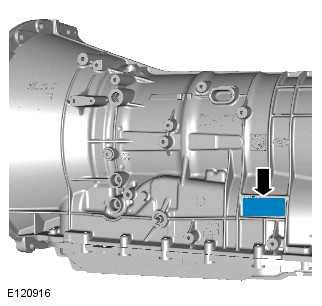

The transmission serial number is visible on the casing.
DIFFERENTIAL SERIAL NUMBERS
Front Differential Serial Number

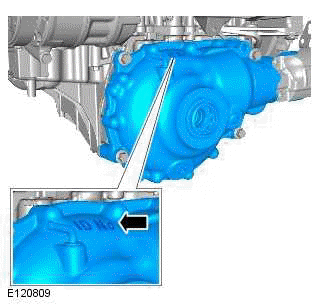

The differential serial number is visible on top of the casing.
Rear Differential Serial Number

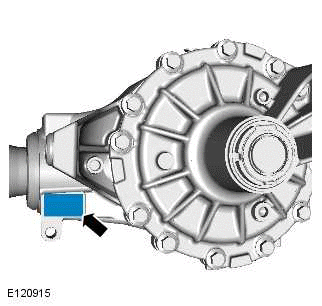

The differential serial number is visible on the underside of the casing.
DRIVE TRANSFER SERIAL NUMBERS
Twin Speed Transfer Case Serial Number

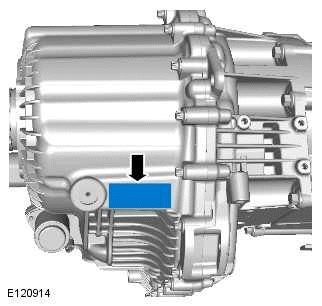

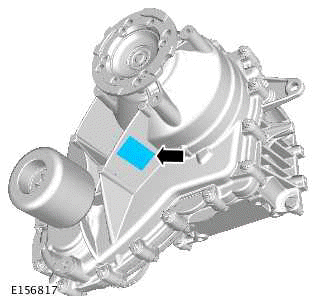

The transfer case serial number is visible on the side of the casing.
Single Speed Transfer Case Serial Number
The transfer case serial number is visible on the side of the casing.
