Land Rover Defender: Steel Subframe Thread Repair Insert

GENERAL PROCEDURES

SPECIAL TOOL(S)

Steel Subframe Thread Repair Insert

JLR-502-041

Steel Subframe Insert Kit

ACTIVATION

CAUTION: Make sure that the drill speed is not at maximum when repairing the damaged hole/thread. Use a suitable electric drill with a slow speed setting.

NOTES:

1.

CAUTION: Apply a suitable cutting lubricate to the drill bit prior to drilling.

Steel Subframe Thread Repair Insert

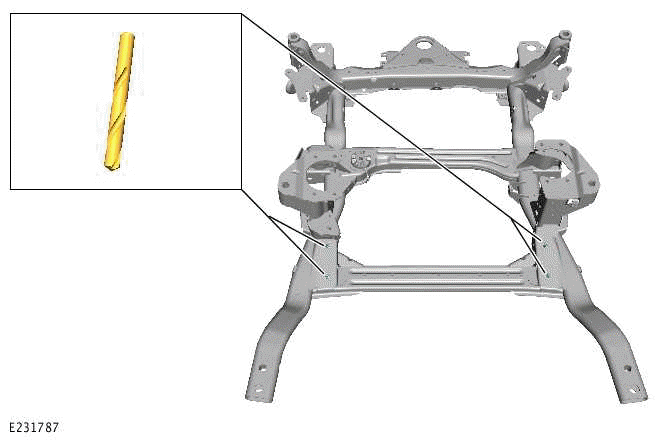

Using the M12 drill bit supplied, drill out the remaining thread.

Special Tool(s): JLR-502-041

2.

NOTE: Apply a suitable cutting lubricate to the tap bit prior to re-threading.

Steel Subframe Thread Repair Insert

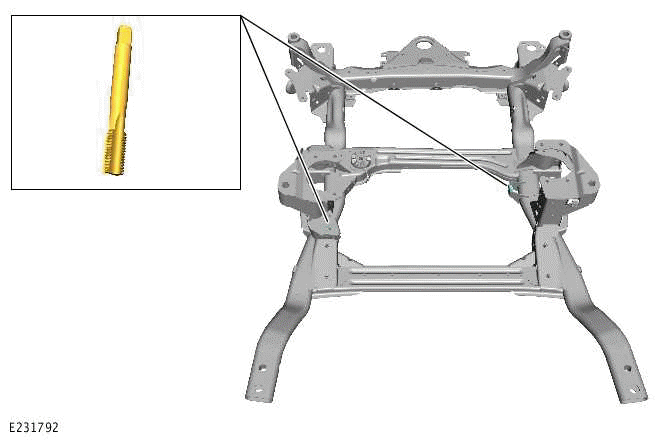

Using the M12 cutting tool provided, install a new thread.

Special Tool(s): JLR-502-041

3.

WARNING: Eye protection must be worn.

Using compressed air make sure the hole is clean and free of debris.

4.

Steel Subframe Thread Repair Insert

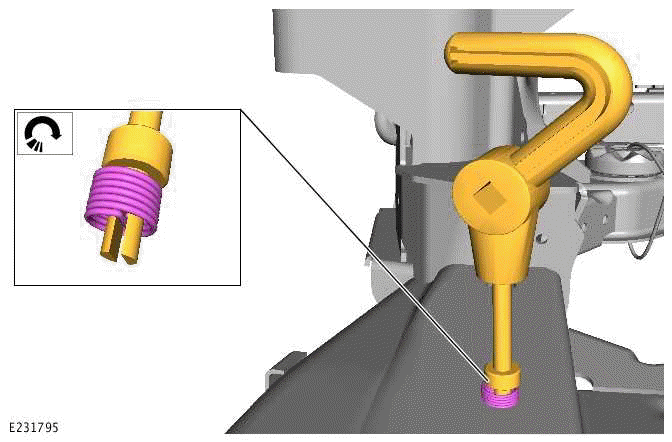

Using the special tool, install the insert.

Special Tool(s): JLR-502-041

5.

Steel Subframe Thread Repair Insert

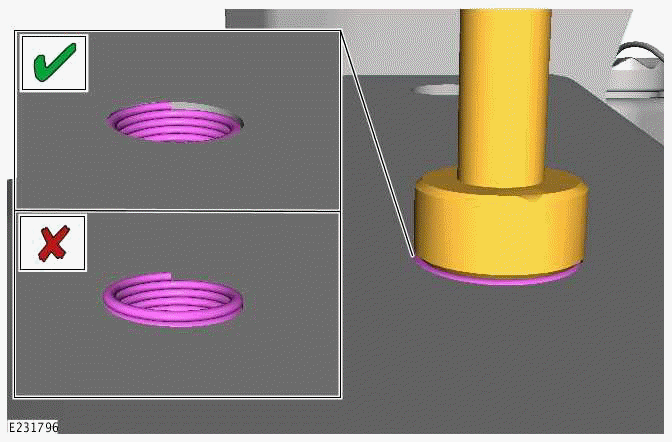

Make sure that the insert is correctly installed.

6.

Steel Subframe Thread Repair Insert

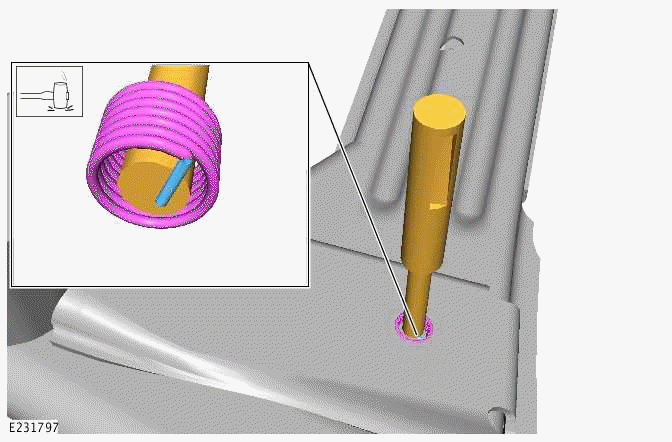

Using the special punch tool, remove the remaining insertion tang shown above.

Special Tool(s): JLR-502-041

7.

CAUTION: Apply a suitable cutting lubricate to the drill bit prior to drilling.

Steel Subframe Thread Repair Insert

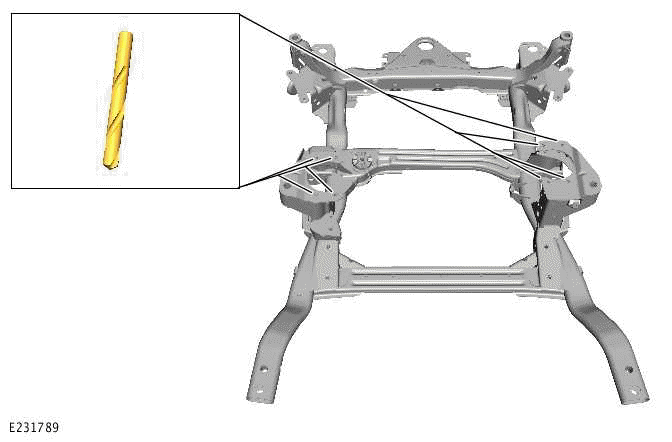

Using the M8 drill bit supplied, drill out the remaining thread.

Special Tool(s): JLR-502-041

8.

NOTE: Apply a suitable cutting lubricate to the tap bit prior to re-threading.

Steel Subframe Thread Repair Insert

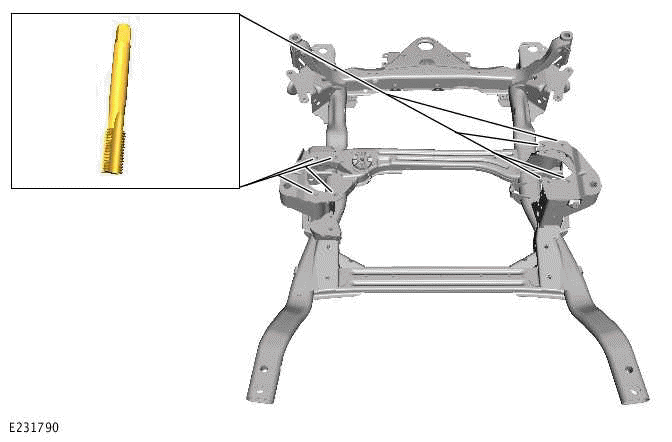

Using the M8 cutting tool provided, install a new thread.

Special Tool(s): JLR-502-041

9.

WARNING: Eye protection must be worn.

Using compressed air make sure the hole is clean and free of debris.

10.

Steel Subframe Thread Repair Insert

Using the special tool, install the insert.

Special Tool(s): JLR-502-041

11.

Steel Subframe Thread Repair Insert

Make sure that the insert is correctly installed.

12.

Steel Subframe Thread Repair Insert

Using the special punch tool, remove the remaining insertion tang shown above.

Special Tool(s): JLR-502-041

13.

CAUTION: Apply a suitable cutting lubricate to the drill bit prior to drilling.

Steel Subframe Thread Repair Insert

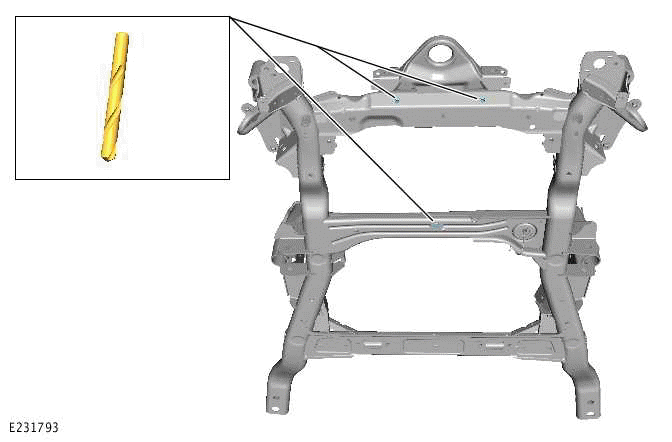

Using the M10 drill bit supplied, drill out the remaining thread.

Special Tool(s): JLR-502-041

14.

NOTE: Apply a suitable cutting lubricate to the tap bit prior to re-threading.

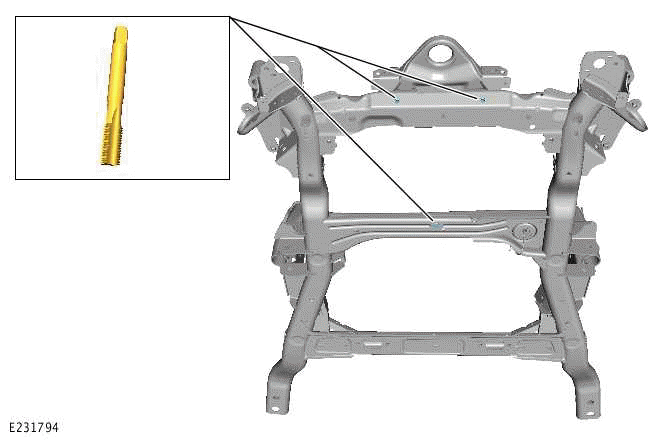

Steel Subframe Thread Repair Insert

Using the M10 cutting tool provided, install a new thread.

Special Tool(s): JLR-502-041

15.

WARNING: Eye protection must be worn.

Using compressed air make sure the hole is clean and free of debris.

16.

Steel Subframe Thread Repair Insert

Using the special tool, install the insert.

Special Tool(s): JLR-502-041

17.

Steel Subframe Thread Repair Insert

Make sure that the insert is correctly installed.

18.

Steel Subframe Thread Repair Insert

Using the special punch tool, remove the remaining insertion tang shown above.

Special Tool(s): JLR-502-041

19.

CAUTION: Apply a suitable cutting lubricate to the drill bit prior to drilling.

Steel Subframe Thread Repair Insert

Using the M8 drill bit supplied, drill out the remaining thread.

Special Tool(s): JLR-502-041

20.

NOTE: Apply a suitable cutting lubricate to the tap bit prior to re-threading.

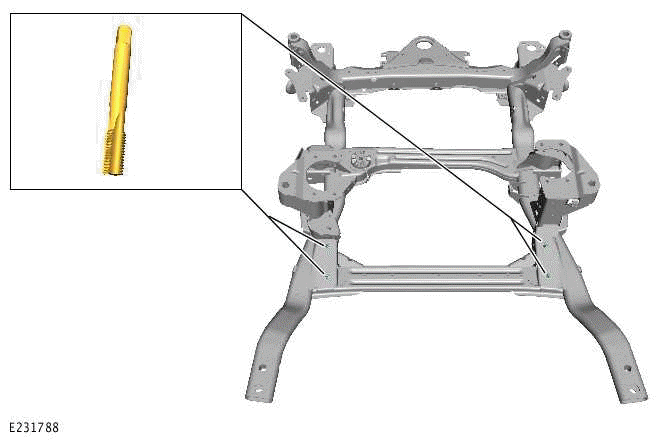

Steel Subframe Thread Repair Insert

Using the M8 cutting tool provided, install a new thread.

Special Tool(s): JLR-502-041

21.

WARNING: Eye protection must be worn.

Using compressed air make sure the hole is clean and free of debris.

22.

Steel Subframe Thread Repair Insert

Using the special tool, install the insert.

Special Tool(s): JLR-502-041

23.

Steel Subframe Thread Repair Insert

Make sure that the insert is correctly installed.

24.

Steel Subframe Thread Repair Insert

Using the special punch tool, remove the remaining insertion tang shown above.

Special Tool(s): JLR-502-041
