Land Rover Defender: Click & Work Folding Table
CLICK & WORK FOLDING TABLE - PART NUMBER:
VPLRS0395
REMOVAL AND INSTALLATION
WARNINGS:
- Accessories which are not correctly installed can be dangerous. Read
the instructions carefully prior to
installation. Comply with instructions at all times. If in doubt, contact
your nearest approved retailer.
- The click & work folding table does not restrain items placed on it.
- Items may come lose if the vehicle abruptly changes direction and may
cause injury to the vehicle
occupants.
- If the click & work folding table is open while the vehicle is being
driven sudden changes of direction or
heavy braking could cause harm to the vehicle occupants. Close the table and
the support bracket before
every journey.
CAUTIONS:
- Take suitable care not to damage the click & work folding table if
the second row seats are folded down.
- When not in use the click & work folding table should be stored in
the loadspace.

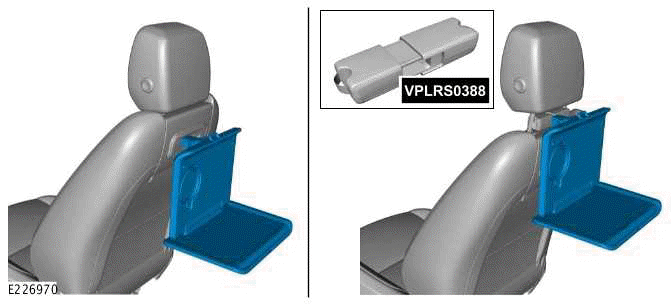

- If your vehicle seats are equipped with an integrated seat backrest
base unit as illustrated, you do not
need the click & go system base unit, item VPLRS0388.
INSTALLATION

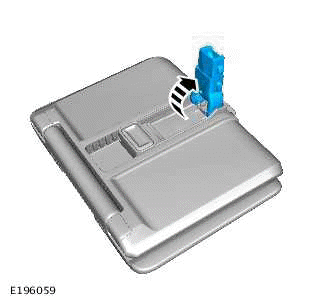

1.
Lift the installation clip.

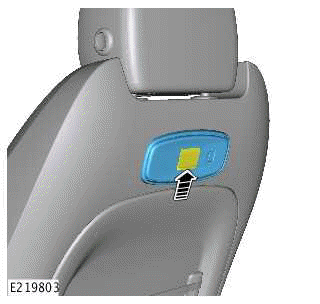

2.
If your vehicle seats are equipped with an integrated seat backrest base
unit, raise and hold open the flap while
installing the click & work folding table.

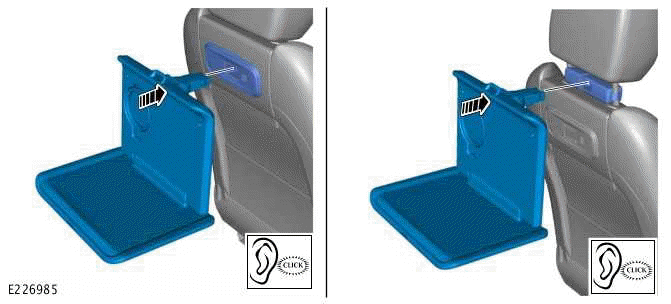

3.
Push the table fully into position.

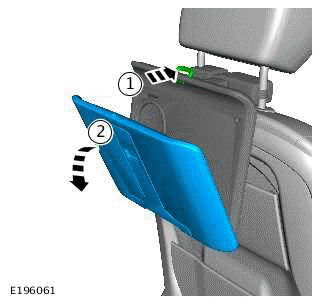

4.
- Push the retaining clip.
- Lower the table.

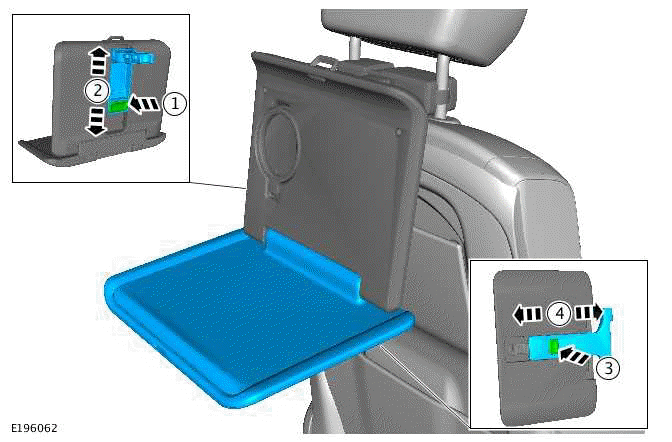

5.
- Depress the height adjustment button.
- Adjust the height of the table as required.
- Depress the table support button.
- Adust the table support arm as required.
6.

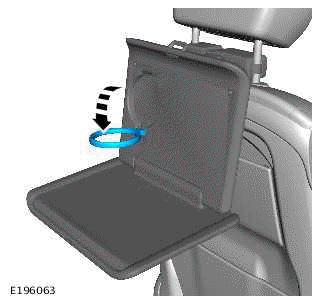

Lower the cup holder if necessary.
7.

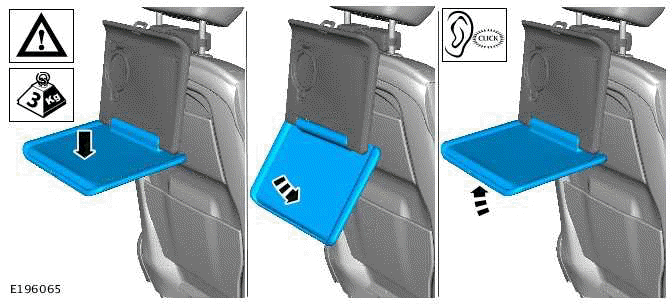

CAUTION:
Do not exceed 3 Kg on the table surface. If the load is exceeded the table
surface may fold down, in
this state lift the table surface until it clicks into position.
REMOVAL

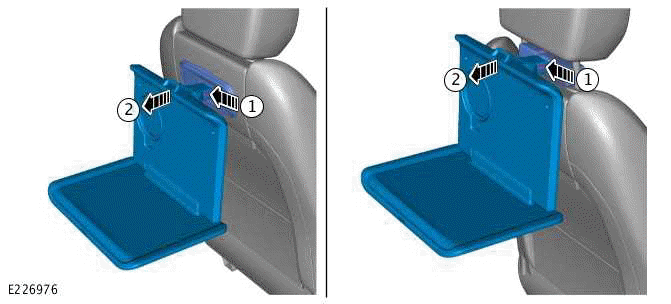

1.
Removing the click & work folding table from the base unit.
- Depress the buttons.
- Pull out the table.
