Land Rover Defender: Front Roof Trim Panel
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the headliner.
2.
CAUTION: Protect the surrounding paintwork to avoid damage.
.png)

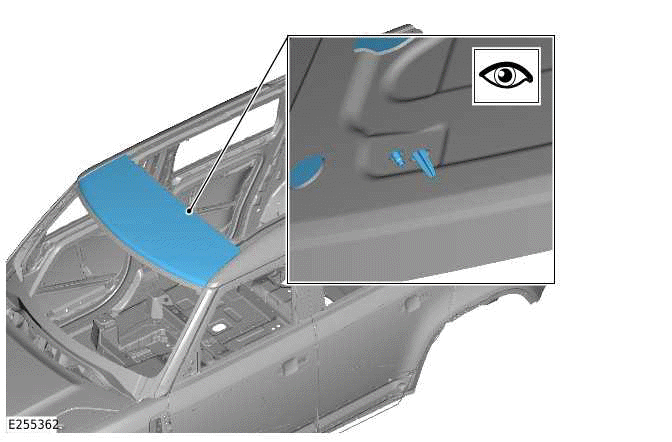

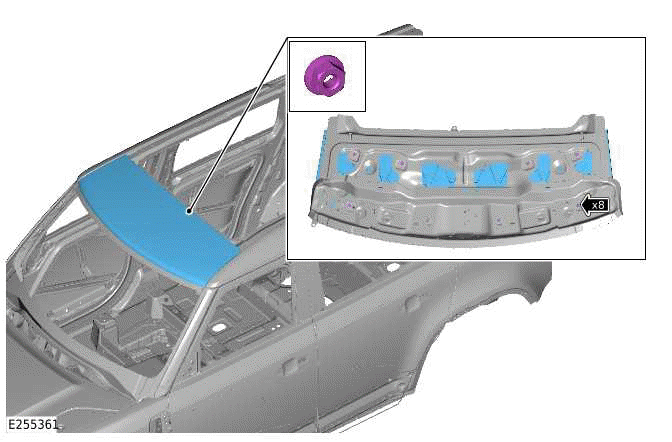

- Remove the 8 nuts.
- Use suitable cutting wire to remove the roof front trim panel.
3.
CAUTION: Take extra care not to damage the surrounding components.
Use a suitable scraper to remove the sealant.
4.
CAUTION:
- Use Isoprpanol (IPA) of Heptane cleaning solution to clean the roof surface.
- Make sure that all bonding surfaces are free of moisture.
Use a suitable cleaning fluid to clean the surface.
INSTALLATION
1.
.png)
CAUTION: If the date on the panel has expired the primer should be reactivated with Sika PSA activator.

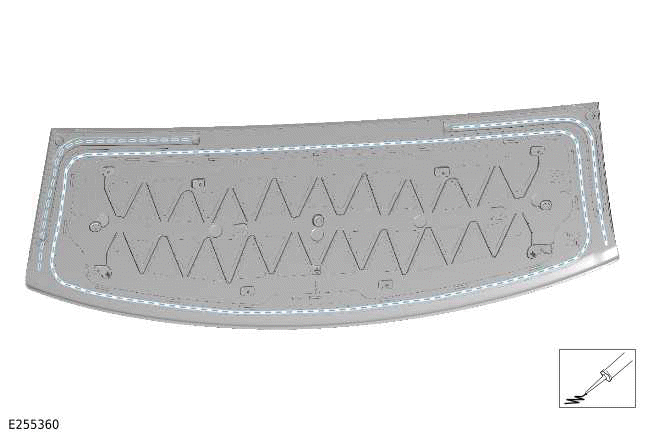

Apply a bead of JLR-5 sealant to the new roof front trim panel as illustrated.
2.
CAUTION: Make sure that the trim panel is correctly installed.
.png)
Install the front roof trim panel.
3.
.png)

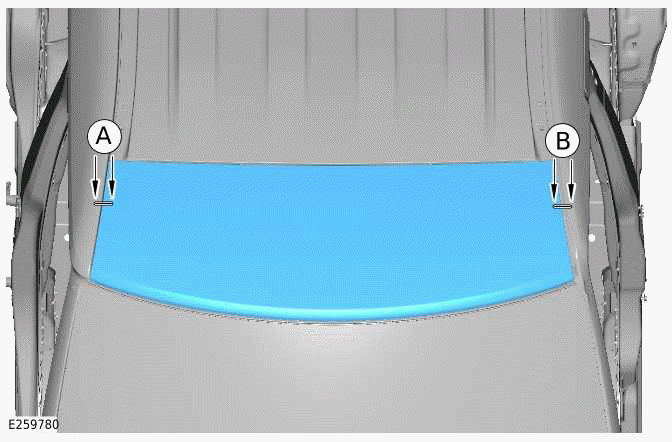

Make sure the front roof trim panel has a even gap between to the trim panel and body as illustrated.
4. Install and tighten the 8 nuts.
Torque: 4Nm
5. Install the headliner.
