Land Rover Defender: Component Location, Overview
COMPONENT LOCATION
COMPONENT LOCATION - 1 OF 4
NOTES:
- Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD)
vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Passenger airbag
- Driver airbag
- Driver side airbag
- Passenger side airbag
- Restraints Control Module (RCM)

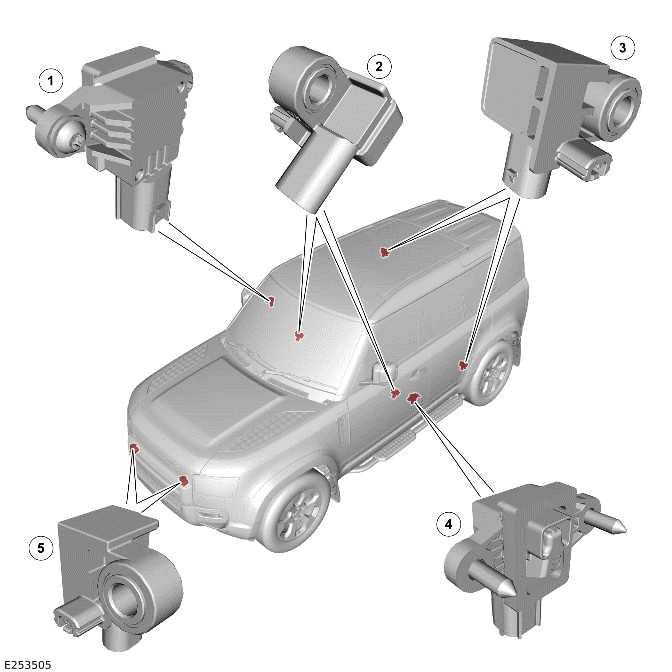

COMPONENT LOCATION - 2 OF 4
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Right pressure sensor
- Front side impact sensor (quantity 2)
- Rear side impact sensor - (quantity 2) - vehicle with 5 doors only
- Left pressure sensor
- Front impact sensor (quantity 2)

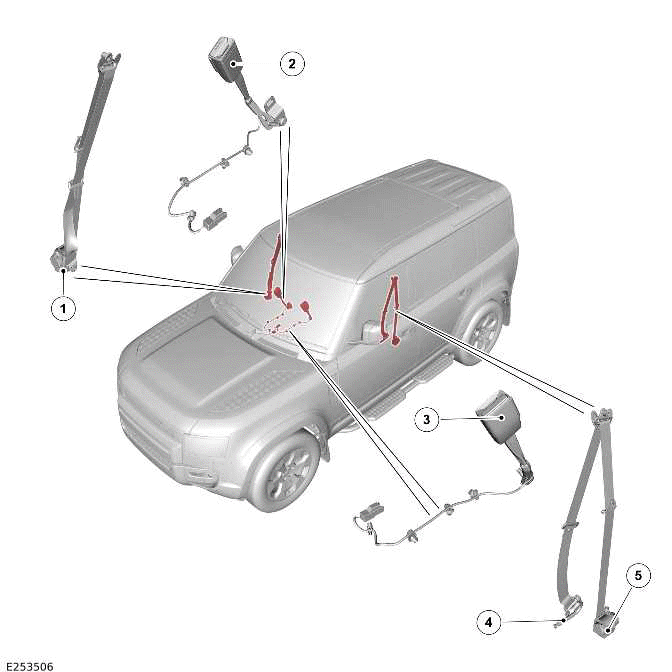

COMPONENT LOCATION - 3 OF 4
NOTES:
- LHD vehicle is shown, RHD vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Seatbelt retractor - Passenger side
- Seatbelt buckle - Passenger side
- Seatbelt buckle - Driver side
- Seatbelt pretensioner - North American Specification (NAS) market
vehicles only
- Seatbelt retractor - Driver side
COMPONENT LOCATION - 4 OF 4
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Seatbelt buckle - Center seat
- Seatbelt retractor - Center seat
- Occupant detection sensor - Center seat
OVERVIEW
WARNING:
All pyrotechnic devices are dangerous. Before performing any procedures on any
pyrotechnic device, read
all information contained within the Standard Workshop Practices section of this
manual.
The RCM controls the operation of the system. The Supplementary Restraint
System (SRS) provides additional
protection for vehicle occupants in certain impact conditions by selective
activation of:
- Driver airbag
- Passenger airbag
- Driver side airbag
- Passenger side airbag
- Seatbelt pretensioner.
The RCM receives inputs from various sensors around the vehicle to determine
which devices, if any, should be
activated during an accident.
The inputs are:
- An Occupant Classification Sensor Control Module (OCS) - NAS market only
- Front impact sensors
- Front side impact sensors
- Rear side impact sensors - vehicle with 5 doors only
- Right and left pressure sensors
- X, Y and Z axis acceleration sensors
- Vehicle speed
- Seat track position sensor.
On all vehicles except NAS, Australia and Japan market, the passenger airbag
can be enabled and disabled. Use the
vehicle setup menu in the Instrument Panel Cluster (IPC) message center to
enable and disable the passenger
airbag.
The activation status of the passenger airbag is given by an indicator in the
front overhead console. The status of the
SRS is given by an airbag warning indicator in the IPC.
The airbags feature hybrid inflaters, which use a self-contained pyrotechnic
device to heat a cylinder of compressed
inert gas within the inflater. Above a calibrated pressure, the cylinder bursts
and releases the gas into the airbag. The
benefits of hybrid inflaters are a cooler inflation gas, resulting in lower
airbag surface temperatures and elimination of
the post-deployment effluent associated with solid pyrotechnic inflaters.
READ NEXT:
RCM
NOTES:
RHD vehicle is shown, LHD vehicle is similar.
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
The RCM is located under the floor console and controls the operation of t
In a collision, the force of the impact is measured by the impact sensors,
pressure sensors and the RCM internal
accelerometer. The RCM evaluates the readings to determine the impact point on
the ve
CONTROL DIAGRAM - 1 OF 2
A = HARDWIRED: AX = FLEXRAY.
RCM
BCM/ GWM
PCM
IPC
Passenger airbag
Clockspring
Driver airbag
Driver seatbelt pretensioner - NAS only
Passenger seatbelt retractor
D
