Land Rover Defender: Supplementary Restraint System
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Supplementary Restraint System
SPECIFICATIONS

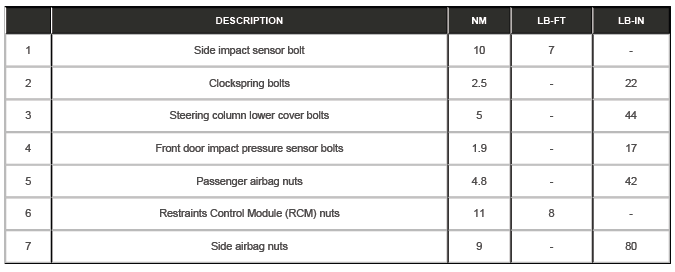

Torque Specifications

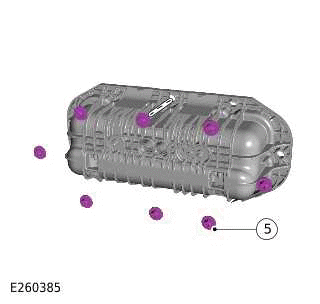

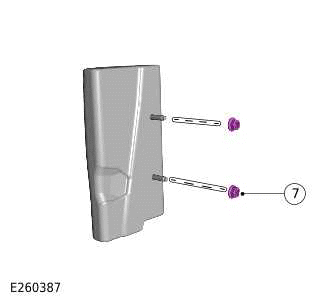

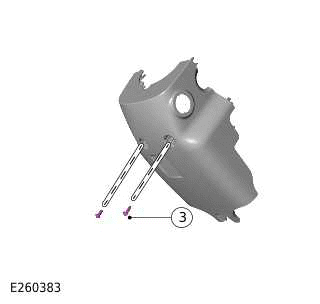

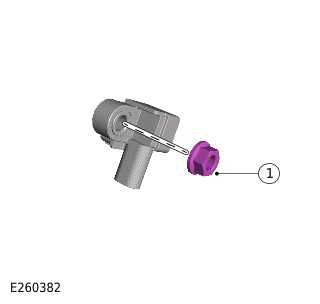

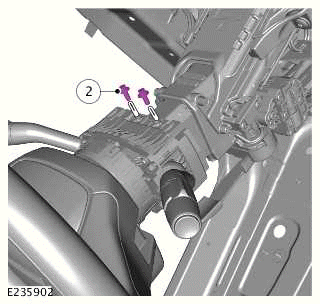

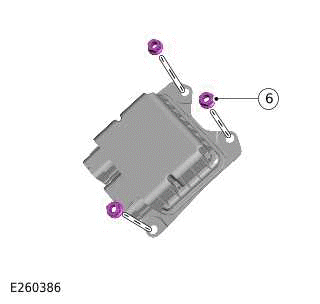

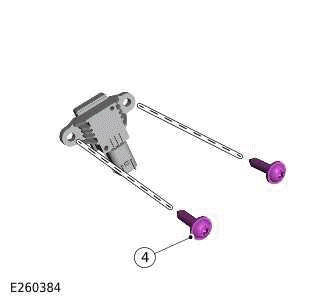

COMPONENT TORQUE LOCATION
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
- Airbag and Safety Belt Pretensioner Supplemental Restraint System - [+] Vehicles With 2ND / 3RD Row Seats
- Airbag and Safety Belt Pretensioner Supplemental Restraint System - [+] Front Row Seats Only
- Airbag Supplementary Restraint System
- Airbag Disposal
- B-Pillar Side Impact Sensor
- C-Pillar Side Impact Sensor
- Driver Airbag
- Front Door Impact Pressure Sensor
- Passenger Airbag
- Restraints Control Module
- Side Airbag Module
