Land Rover Defender: Description

TRANSMISSION

The transmission comprises the main casing which houses all of the transmission components. The main casing also incorporates an integral torque converter housing.

A fluid pan is attached to the lower face of the main casing and is secured with bolts. The fluid pan is sealed to the main casing with a gasket. Removal of the fluid pan allows access to the Mechatronic valve block. The fluid pan has magnets located at the rear which collects any ferrous metallic particles present in the transmission fluid.

A fluid filter is located inside the fluid pan. If the Automatic Transmission Fluid (ATF) becomes contaminated or after any service work, the fluid pan with integral filter must be replaced.

The transmission does not have a Bowden cable for park lock operation. This is initiated electronically when the Transmission Control Switch (TCS) is moved to the PARK (P) position. An Emergency Park Release (EPR) mechanism is provided to release the park interlock if a failure occurs.

A feature of the 8 speed transmission is decoupling of the transmission when the vehicle is at a standstill. Normally the transmission remains in gear with the torque converter slipping and the vehicle is prevented from moving by applying the brake. The new system disengages 1 of the transmission clutches and only a minimum rotating load remains. This has the effect of further reducing fuel consumption.

The ATF pump is driven by a simplex chain and 2 drive gears from the input shaft. The ATF pump is a double stroke vane cell pump which delivers 50 cm³ of ATF per revolution.

The integral torque converter housing provides protection for the torque converter assembly and also provides the attachment for the transmission to the engine. The torque converter is a serviceable assembly which also contains the lock-up clutch mechanism.

The main casing contains the following major components:

• Input shaft
• Output shaft
• Mechatronic valve block which contains the solenoids, speed sensors and the
• Transmission Control Module (TCM)
• 3 rotating multiplate drive clutches
• 2 fixed multiplate brake clutches
• 4 planetary gear trains.

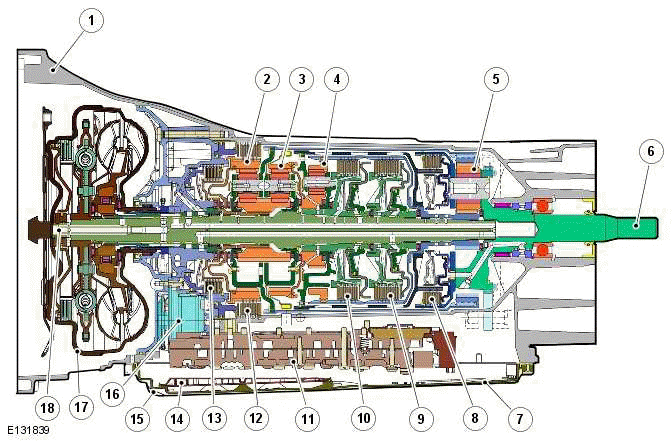

Transmission Sectional View

1. Transmission casing
2. Gear set 1
3. Gear set 2
4. Gear set 3
5. Gear set 4
6. Output shaft
7. Drain plug
8. Clutch D
9. Clutch C
10. Clutch E
11. Mechatronic valve block
12. Brake B
13. Brake A
14. Fluid filter
15. Fluid pan
16. Automatic Transmission Fluid (ATF) pump
17. Torque converter
18. Input shaft

TORQUE CONVERTER

A torsional damper torque converter is used on 8HP45 transmissions.

The torsional damper enables a more direct engine connection for highly efficient power transmission when starting and shifting. The inner spring set is connected directly to the transmission, the outer spring set responds to torque from the engine through the lock-up clutch. When the lock-up clutch is applied, the hydro-dynamic circuit is by-passed and torque is transferred directly to the transmission input shaft. In comparison to conventional torque converters, the tandem torsional damper applies the lock-up clutch earlier. This improves driving comfort at low engine speeds. This also increases fuel efficiency by enabling the engine to be operated at lower Revolutions Per Minute (RPM) levels.

When the converter lock-up clutch is not applied, torque is transferred hydro-dynamically. Power from the engine is transmitted through the pump and turbine to the transmission input shaft. When the converter lock-up clutch is applied, the hydro-dynamic circuit is by-passed, torque is transferred directly through the lock-up clutch and the tandem spring sets. The turbine inertia is coupled between the 2 spring sets which improves disengagement, helps reduce wear on the transmission and improve noise insulation.

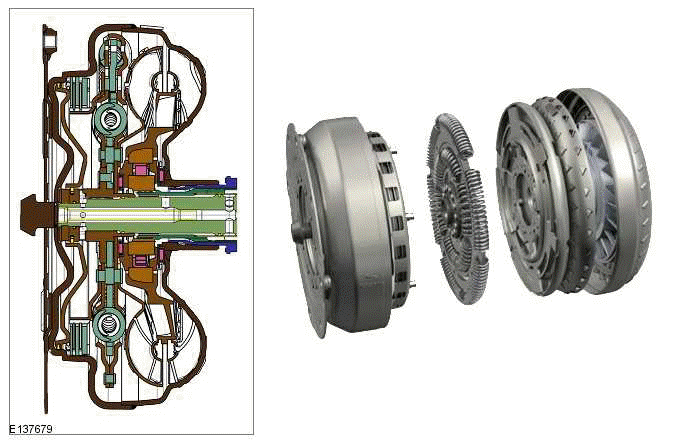

The torque converter is the coupling element between the engine and the transmission. The torque converter is located in the torque converter housing, on the engine side of the transmission. The driven power from the engine crankshaft is transmitted hydraulically and mechanically through the torque converter to the transmission. The torque converter is connected to the engine by a drive plate attached to the rear of the crankshaft.

The torque converter comprises a torsional damper, an impeller, a stator and a turbine. The torque converter is a sealed unit with all components located between the converter housing cover and the impeller. The 2 components are welded together to form a sealed, fluid filled housing. With the impeller brazed to the converter housing cover, the impeller is therefore driven at engine crankshaft speed.

The converter housing drive plate has 4 threaded bosses, which provide for attachment of the engine drive plate. The threaded bosses also provide for location of special tools which are required to remove the torque converter from the torque converter housing.

Lock-Up Clutch

The torque converter lock-up clutch is hydraulically controlled by an Electronic Pressure Regulating Solenoid (EPRS), which is controlled by the Transmission Control Module (TCM). This allows the torque converter to have 3 states of operation as follows:

• Fully engaged
• Controlled slip variable engagement
• Fully disengaged.

The torque converter pressure valve reduces system pressure and guarantees the pressure needed for the torque converter. It also limits the maximum torque converter pressure, to prevent the torque converter from expanding.

The EPRS is operated by Pulse Width Modulation (PWM) signals from the TCM to give full, partial or no lock-up of the torque converter.

The lock-up clutch is a hydro-mechanical device which eliminates torque converter slip, improving fuel consumption.

The engagement and disengagement is controlled by the TCM to allow a certain amount of controlled 'slip'. This allows a small difference in the rotational speeds of the impeller and the turbine which results in improved shift quality.

The lock-up clutch comprises a piston and a clutch comprising of friction and steel plates.

In the unlocked condition, the oil pressure supplied to the piston chamber is reduced. The pressure in the turbine chamber is allowed to push the piston back. In this condition the clutch plates are released and torque converter slip is permitted.

In the locked condition, the lock-up clutch spool valves are actuated by the EPRS. Pressurized Automatic Transmission Fluid (ATF) is directed into the lock-up clutch piston. The piston moves with the pressure and pushes the clutch plates together. As the pressure increases, the friction between the clutch plates increases, finally resulting in full lock-up of the clutch plates. In this condition there is direct mechanical drive from the engine crankshaft to the transmission planetary gear train.

The Transmission Idle Control feature is a standstill decoupling feature for the 8 speed transmission. When the vehicle comes to a standstill, the converter is disconnected from the driveline so that only a slight residual load remains. This further reduces fuel consumption. Decoupling is by actuating clutch B in the transmission, and is dependent on load and output speed.

AUTOMATIC TRANSMISSION FLUID PUMP

The Automatic Transmission Fluid (ATF) pump is an integral part of the transmission. The ATF pump is used to supply hydraulic pressure for the operation of the control valves and clutches. The ATF pump also passes the ATF through the transmission cooler and the transmission to lubricate the gears and shafts.

The 8HP45 ATF pump is a double stroke, vane type pump and is located below the transmission input shaft. The pump is driven by a chain drive from a sprocket located on the torque converter. The pump has a delivery rate of 50 cm³ per revolution. The drive sprocket is driven at engine speed through a splined connection in the torque converter shell.

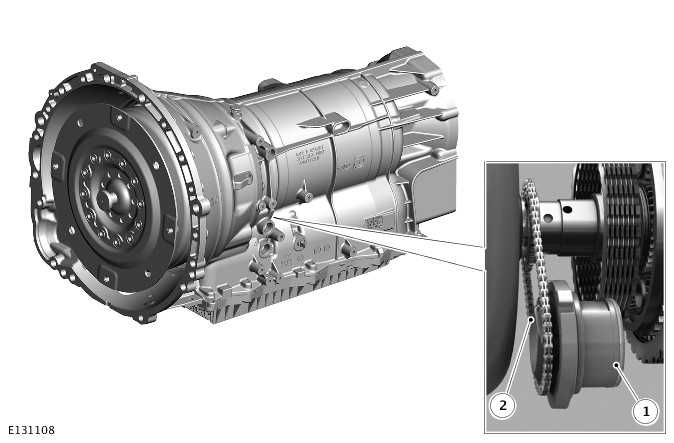

Automatic Transmission Fluid Pump Location

1. Vane pump
2. Chain drive from torque converter cover

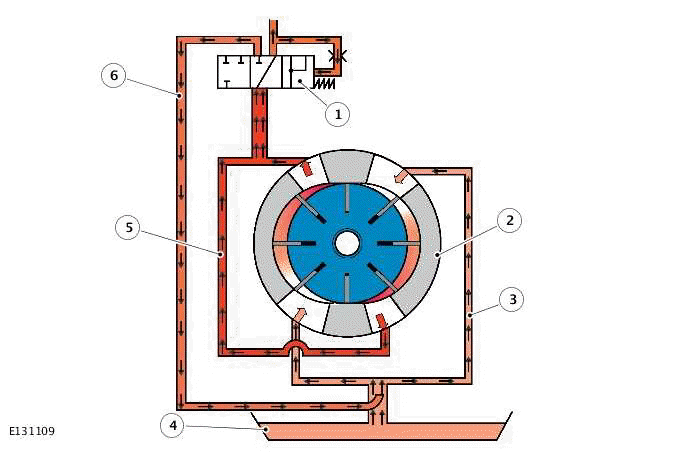

Automatic Transmission Fluid Pump Schematic Diagram

1. System pressure valve
2. Automatic Transmission Fluid (ATF) pump
3. Intake pipe
4. Oil pan
5. Pressure pipe
6. Recycling of redundant fluid

The Automatic Transmission Fluid (ATF) pump comprises:

• A sprocket
• A rear cover with bearing
• A front cover with bearing
• A cylinder
• A rotor shaft and a rotor with vanes.

A pressure relief valve is equipped in the pressure outlet gallery from the pump, but is not an integral part of the pump itself.

A sprocket is located around the transmission input shaft. Splines on the torque converter nose and the sprocket make a positive drive sure. A simplex chain transmits the rotation of the torque converter cover into rotation of the pump rotor shaft. The gearing of the 2 sprockets rotates the ATF pump rotor shaft at a speed slightly higher than the Revolutions Per minute (RPM) of the torque converter cover. The torque converter cover is directly connected to the engine crank.

The ATF pump contains 7 vanes which are attached to the rotor and rotate within the cam shaped cylinder. As the vanes rotate, the eccentricity of the central hole in the cylinder causes the space between the vanes to increase. This causes a depression between the vanes and fluid is drawn into the space between the vanes through a suction port connected to the fluid pan. The fluid passes through the fluid pan filter before it is drawn into the ATF pump.

As the rotor shaft rotates further, the inlet port is closed, trapping the fluid in the space between the vanes. The eccentric hole in the cylinder causes the space between the vanes to decrease and consequentially compresses and pressurizes the fluid trapped between them.

Further rotation of the rotor shaft moves the vanes towards the outlet port. As the vanes pass the outlet port, the pressurized fluid passes from the space between the vanes to the pressure relief valve.

As the ATF pump is a double stroke vane pump, this sequence is repeated twice per revolution of the rotor shaft.

The pressure relief valve controls the pressure and flow of ATF delivered to the transmission valve block, torque converter and other components. Pressure is controlled by a relief valve which limits the maximum system pressure to 32 bar (464 psi). The pressure control maintains a constant pressure of ATF irrespective of torque converter input shaft rotational speed. A metering orifice is subject to the pump output pressure. If the pressure in the orifice reaches a predetermined level, a spring loaded ball in the flow control valve is lifted from its seat. The pressurized fluid is allowed to recirculate through the pump.

MECHATRONIC VALVE BLOCK

The Mechatronic valve block is located in the bottom of the transmission and is covered by the fluid pan. The valve block houses the following components:

• Transmission Control Module (TCM)
• Electrical actuators
• Speed sensors
• Control valves
• Hydraulic Impulse Storage (HIS) (if equipped).

The above components provide all electro-hydraulic control for all transmission functions.

The Mechatronic valve block comprises the following components:

• TCM
• 7 Electronic Pressure Regulating Solenoids (EPRS)
• 2 park lock solenoids
• Twenty 1 hydraulic spool valves
• Temperature sensor
• Turbine speed sensor
• Output shaft speed sensor
• Hydraulic Impulse Storage (HIS) (if equipped).

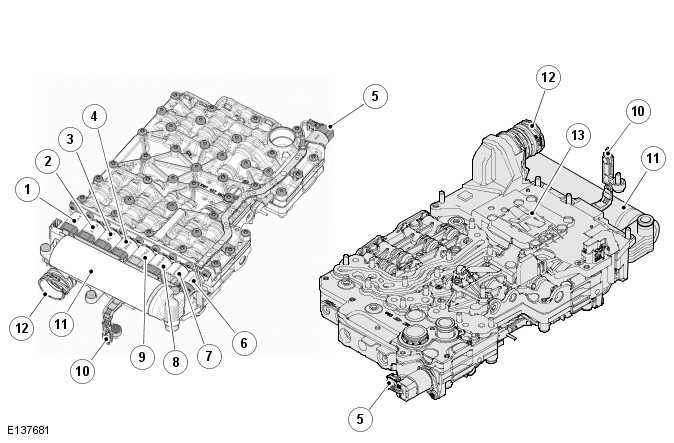

1. Electronic Pressure Regulating Solenoid (EPRS) A - A brake valve
2. EPRS D - D clutch valve
3. EPRS B - B brake valve
4. EPRS E - E clutch valve
5. Magnetic Valve (MV) 2 - magnet-valve 2 for electrical park interlock (hold out of park)
6. MV 1 - pressure reducing valve
7. EPRS SYS - system pressure valve
8. EPRS WK - Torque converter lock-up clutch valve
9. EPRS C - C clutch valve
10. Transmission output shaft speed sensor
11. Hydraulic Impulse Storage (HIS) (if equipped)
12. Electrical connector
13. Transmission Control Module (TCM) - hidden

Electronic Pressure Regulator Solenoids

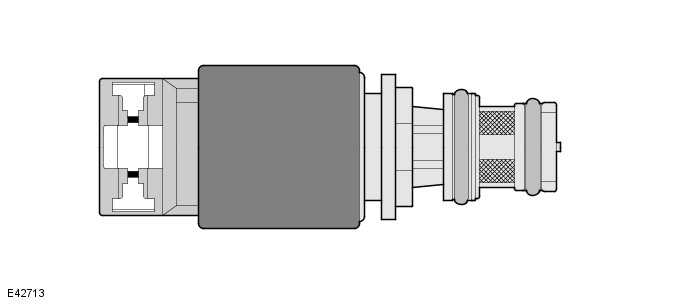

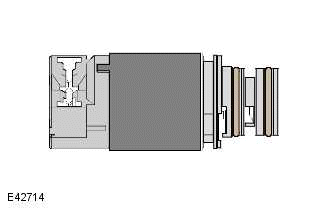

7 Electronic Pressure Regulator Solenoids (EPRS) are located in the valve block. The solenoids are controlled by Pulse Width Modulation (PWM) signals from the Transmission Control Module (TCM). The solenoids convert the electrical signals into hydraulic control pressure proportional to the signal to actuate the spool valves for precise transmission operation.

EPRS A, B, D, E and WK supply a higher control pressure as the signal amperage increases and can be identified by an orange connector cap. The TCM operates the solenoids using PWM signals. The TCM monitors engine load and clutch slip and varies the solenoid duty cycle accordingly. The solenoids have a 12V operating voltage and a pressure range of 0 - 4.7 bar (0 - 68 psi).

EPRS C and SYS supply a lower control pressure as the signal amperage increases and can be identified by a gray connector cap. The TCM monitors engine load and clutch slip and varies the solenoid duty cycle accordingly. The solenoids have a 12V operating voltage and a pressure range of 4.7 - 0 bar (68 - 0 psi).

The resistance of the solenoid coil winding for EPRS is 5.05 Ohms at 20ºC (68ºF).

Control Solenoid - MV 1

A shift control solenoid Magnetic Valve 1 (MV1) is located in the valve block. The solenoid is controlled by the Transmission Control Module (TCM) and converts electrical signals into hydraulic control signals to control clutch application.

The shift control solenoid is an open/closed, on/off solenoid which is controlled by the TCM switching the solenoid to earth. The TCM also supplies power to the solenoid. The TCM energizes the solenoid in a progamed sequence for clutch application for gear ratio changes and shift control.

The resistance of the solenoid coil winding for solenoid is between 10 to 11 Ohms at 20ºC (68ºF).

Control Solenoid - MV 2

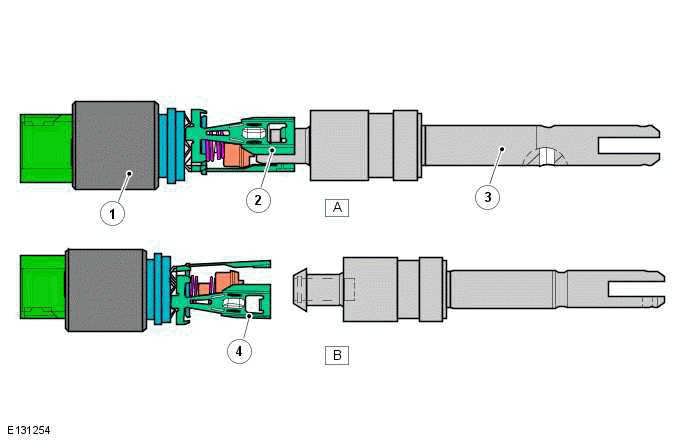

1. Solenoid in locked (energized) condition - park lock released
2. Solenoid in unlocked (de-energized) condition - park lock engaged

1. Solenoid
2. Claw - locked
3. Piston
4. Claw - unlocked

A control solenoid Magnetic Valve 2 (MV2) is located in the valve block. The solenoid is controlled by the Transmission Control Module (TCM) and converts electrical signals into hydraulic control signals to control the electronic park lock function.

The control solenoid is an on/off solenoid which is controlled by the TCM by switching the solenoid to earth.

When the park position is deselected, control solenoid MV2 resets the parking lock valve in the Mechatronic valve block. This is achieved by the TCM providing the ground for the solenoid which is energized, releasing the claws from retaining the park lock piston. Main Automatic Transmission Fluid (ATF) pressure acting on the parking lock piston, pushes the piston back to release the lock.

When the park position is selected, control solenoid MV2 is de-energized. The ATF pressure at the parking lock cylinder piston is vented and the mechanical interlock of the piston is opened. A pre-tensioned torsion spring at the park lock disc pulls the piston into the 'park' position. In the 'park' position the piston engages with the control solenoid claws and is locked in the park position. An emergency release wire cable can be used to release the parking lock manually if an electrical failure occurs.

The resistance of the solenoid coil winding for solenoid is 25 Ohms at 20ºC (68ºF).

When the NEUTRAL (N) position is selected and the engine is turned OFF, the ATF pressure at the park lock cylinder piston is released. The current supply to the control solenoid MV2 remains. The park lock cylinder piston is still held in the unlocked position by the spring force acting on the park lock disc. This prevents the park lock plate from engaging the parking lock. This allows the vehicle to be moved when the engine is not running for a short time. Should the battery voltage fall below the level required to maintain the solenoid in the energized condition, the park lock is engaged.

Sensors

Speed Sensors

The turbine speed sensor and the output shaft speed sensor are Hall effect type sensors located in the Mechatronic valve block and are not serviceable items. The Transmission Control Module (TCM) monitors the signals from each sensor to determine the input (turbine) speed and the output shaft speed.

The turbine speed is monitored by the TCM to calculate the slip of the torque converter clutch and internal clutch slip.

This signal allows the TCM to accurately control the slip timing during shifts and adjust clutch application or release pressure for overlap shift control.

The output shaft speed is monitored by the TCM. It is compared to engine speed signals received on the FlexRay system bus from the Powertrain Control Module (PCM). Using a comparison of the 2 signals the TCM calculates the transmission slip ratio for plausibility and maintains adaptive pressure control.

Temperature Sensor

The temperature sensor is also located in the Mechatronic valve block. The Transmission Control Module (TCM) uses the temperature sensor signals to determine the temperature of the transmission fluid. These signals are used by the TCM to control the transmission operation. The TCM uses the temperature signals to promote faster warm-up in cold conditions. The TCM also uses the temperature signal to assist with fluid cooling by controlling the transmission operation when high fluid temperatures are experienced. If the sensor fails, the TCM uses a default value and a fault code is stored in the TCM.

Spool Valves

The valve block contains spool valves which control various functions of the transmission. The spool valves are of conventional design and are operated by Automatic Transmission Fluid (ATF) pressure.

Each spool valve is located in its spool bore and held in a default (unpressurized) position by a spring. The spool bore has a number of ports which allow ATF to flow to other valves and clutches to enable transmission operation. Each spool has a piston which is waisted to allow ATF to be diverted into the applicable ports when the valve is operated.

When ATF pressure moves a spool, 1 or more ports in the spool bore are covered or uncovered. ATF is prevented from flowing or is allowed to flow around the applicable waisted area of the spool and into another uncovered port.

The ATF is either passed through galleries to actuate another spool, operate a clutch or is returned to the fluid pan.

HYDRAULIC IMPULSE STORAGE - IF EQUIPPED

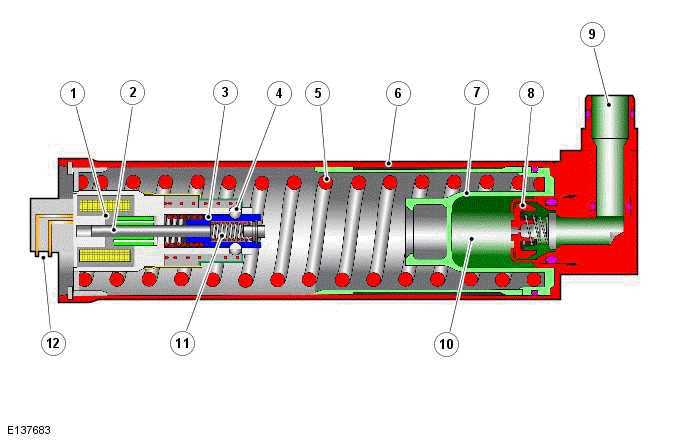

1. Solenoid
2. Magnetic core
3. Keeper
4. Balls
5. Piston spring
6. Accumulator cylinder
7. Piston
8. 1-way restrictor
9. Inlet/outlet port
10. Piston ATF volume
11. Keeper spring
12. Electrical connector

The Hydraulic Impulse Storage (HIS) system is equipped to vehicles with the auto stop/start system.

The HIS system comprises a cylindrical accumulator which contains an electro-mechanical locking unit, a spring actuated piston and a 1-way restrictor. The accumulator is located at the rear of the Mechatronic valve block. It is secured in position with 3 screws and sealed into a port in the transmission casing with an O-ring seal.

The electro-mechanical locking unit comprises a low-current solenoid, a spring loaded keeper incorporating a magnetic core and a number of balls. The keeper has a detent into which the balls locate during filling of the HIS when the engine is running and the Automatic Transmission Fluid (ATF) pump is producing pressure.

The 1-way restrictor is located in the inlet/outlet port of the accumulator. The restrictor provides a controlled charging of the HIS, to allow a small volume flow of ATF. This makes sure that the operation of the transmission shift elements are not compromised by a sudden drop in ATF pressure. The restrictor allows a charging time for the HIS of approximately 5 seconds. When discharge is required, the restrictor allows full flow from the cylinder.

The filling process for the HIS has several steps:

• When the engine is running and the ATF pump is producing pressure, the 1-way restrictor allows a controlled flow of ATF which acts on the piston.
• The ATF pressure moves the piston into the accumulator cylinder. A retaining ring on the piston passes over the balls which are at this point located in the keeper detent.
• As the piston continues to move, a spring in the center of the keeper moves the locking cylinder and the magnetic core towards the solenoid windings and into the final fully charged position. The energized solenoid holds the magnetic core and the balls are lifted from the detent by the movement of the keeper, locking the piston in the charged position. The HIS is now electro-mechanically locked and ready for an engine stop to occur.
• When the engine is stopped, the ATF pump also stops and ATF pressure is decayed. The pressure acting on the piston is also decayed and the piston moves to be held in the locked position by the balls. The energy required for hydraulic filling during engine start is now stored in the tensioned piston spring. The solenoid remains energized to hold the keeper in position and the balls out of the detent to lock the piston.

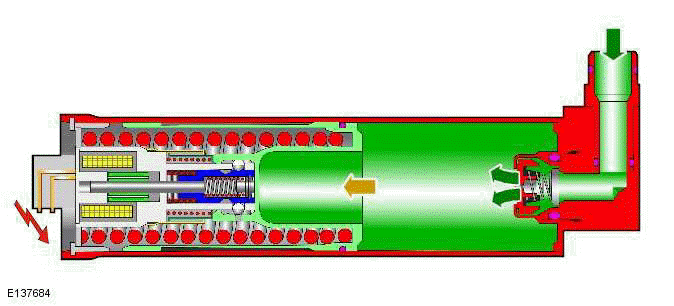

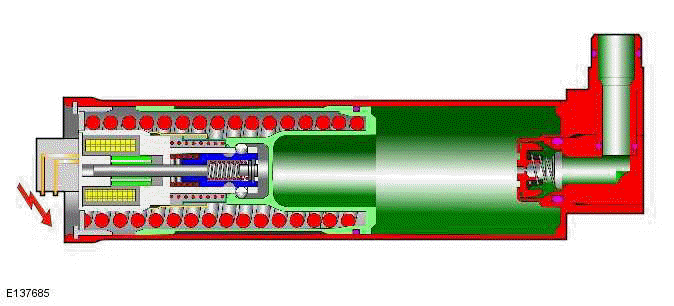

Charging

Charged

Engine start process:

• When the engine is restarted, the solenoid holding current is removed, which starts the unlocking process.
• The magnetic core is released and the keeper is moved towards the piston under spring pressure. The balls fall into the detent in the keeper, releasing the piston.
• The piston is moved under spring pressure, pushing out the volume of ATF. The 1-way restrictor opens fully to allow unrestricted flow of ATF from the accumulator cylinder into the transmission housing. The process is completed between 300 and 350 ms.
• When the engine is started, the ATF pump produces flow and pressure to provide seamless transmission shift element engagement as soon as the engine is started.

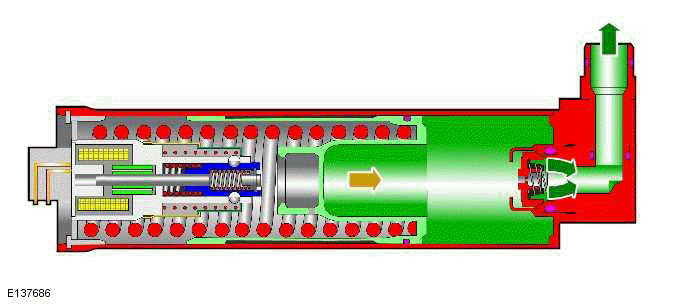

Discharging

DRIVE CLUTCHES

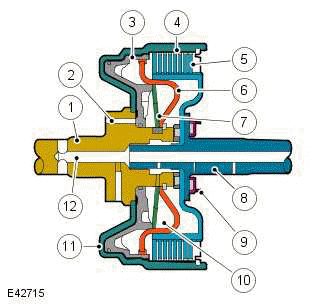

Multiplate Clutch or Brake - Typical

1. Input shaft
2. Main pressure supply port
3. Piston
4. Cylinder - external plate carrier
5. Clutch plate assembly
6. Baffle plate (for clutch, not brake)
7. Diaphragm spring
8. Output shaft
9. Bearing
10. Dynamic pressure equalization chamber
11. Piston chamber
12. Lubrication channel

There are 3 drive clutches and 2 brakes used in the transmission. Each clutch comprises a number of friction plates dependent on the output controlled. A typical clutch consists of a number of alternating steel plates and plates with friction material bonded to each face.

The clutch plates are held apart mechanically by a diaphragm spring and hydraulically by dynamic pressure. The pressure is derived from a lubrication channel which supplies fluid to the bearings and clutch cooling. The fluid is passed through a drilling in the input shaft into the chamber between the baffle plate and the piston. To prevent inadvertent clutch application due to pressure build up produced by centrifugal force, the fluid in the dynamic pressure equalization chamber overcomes any centrifugal pressure in the piston chamber and holds the piston off the clutch plate assembly.

When clutch application is required, main pressure from the Automatic Transmission Fluid (ATF) pump is applied to the piston chamber from the supply port. This main pressure overcomes the low pressure fluid present in the dynamic pressure equalization chamber. The piston moves, against the pressure applied by the diaphragm spring, and compresses the clutch plate assembly. When the main pressure falls, the diaphragm spring pushes the piston away from the clutch plate assembly, disengaging the clutch.

PLANETARY GEAR TRAINS

The 8 forward gears and the reverse gear are produced by a combination of 4 simple planetary gear sets, 3 clutches and 2 brakes. The front 2 gear sets share a common sun gear. Power is output always through the planetary carrier of the fourth gearset.

5 shift elements comprising 3 clutches and 2 brakes, are responsible for all 8 forward and reverse gears. High efficiency is achieved by the use of only 2 shift elements disengaged in each gear which reduces drag and so increases the efficiency.

Planetary Gear Set 1

The planetary gear sets 1 comprises:

• Sunwheel
• 4 planetary gears
• Planetary gear carrier (spider)
• Ring gear.

Planetary Gear Sets 2 and 3

The planetary gear sets 2 and 3 comprise:

• Sunwheel - shared by both gear sets
• 3 planetary gears per gear set
• Planetary gear carrier (spider) per gear set
• Ring gear per gear set.

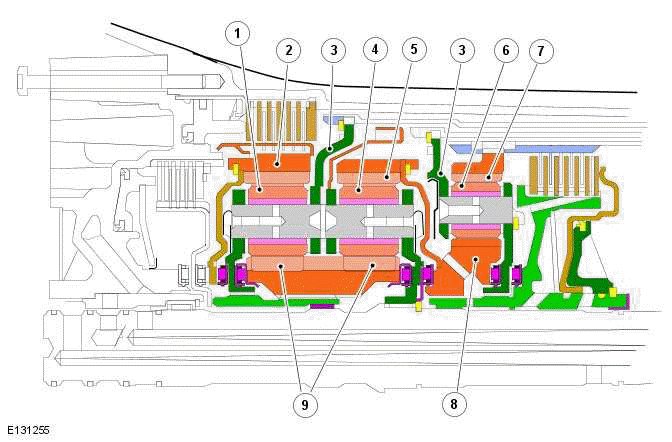

1. Planetary gears - gear set 1
2. Ring gear - gear set 1
3. Planetary gear carrier (spider)
4. Planetary gears - gear set 2
5. Ring gear - gear set 2
6. Planetary gears - gear set 3
7. Ring gear - gear set 3
8. Sun wheel - gear set 3
9. Sun wheel - joint gear sets 1 and 2

Planetary Gear Set 4

The planetary gear set 4 comprises:

• Sunwheel
• 4 planetary gears
• Planetary gear carrier (spider) - output shaft
• Ring gear.

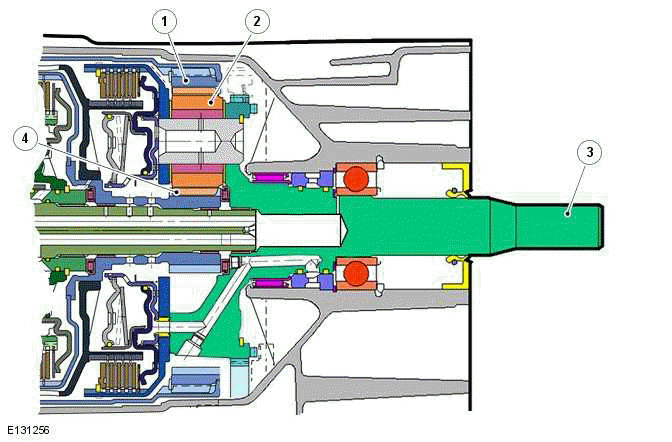

1. Ring gear
2. Planetary gears
3. Output shaft / gear carrier
4. Sun wheel

TRANSMISSION CONTROL MODULE

The Transmission Control Module (TCM) is an integral part of the Mechatronic valve block which is located at the bottom of the transmission, within the fluid pan. The TCM is the main controlling component of the transmission.

The TCM processes signals from the transmission speed and temperature sensors, Powertrain Control Module (PCM) and other vehicle systems. From the received signal inputs and pre-progamed data, the module calculates the correct gear, torque converter clutch setting and optimum pressure settings for gear shift and lock-up clutch control.
