Land Rover Defender: Diagnostics - Vehicles With: 8HP76 8-Speed Automatic Transmission, AWD
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Automatic Transmission, refer to the
relevant Description and Operation section in the
workshop manual.
INSPECTION, VERIFICATION AND ADDITIONAL WARNINGS FOR ELECTRIC VEHICLES
WARNINGS:
- A risk assessment must be performed before any work is undertaken.
Failure to comply with this
instruction may result in personal injury or death.
- All electric vehicle work must be performed by a suitably qualified
person. Failure to comply with this
instruction may result in personal injury or death.
- Appropriate Personal Protection Equipment (PPE) must be worn when
working on or near an electric
vehicle high voltage system. Failure to comply with this instruction may
result in personal injury or death.
- The hybrid/EV battery pack casing must not be disassembled due to the
risk of exposure to hazardous
voltage. Failure to comply with this instruction may result in personal
injury or death.
- The electric power inverter converter casing must not be disassembled
due to the risk of exposure to
hazardous voltage. Failure to comply with this instruction may result in
personal injury or death.
- If the hybrid/EV battery pack is damaged or overcharged, there is a
risk of exposure to hazardous voltage
and/or highly corrosive electrolyte mist. If liquid or vapour is observed
leaking from the hybrid/EV battery
pack, take the following action:
- Evacuate the area.
- Notify manager.
- Do not breathe smoke/vapor.
- Contain spillage using spill kit.
- Wash any spillage off body and clothing (remove contaminated
clothing).
- If the electric vehicle warning indicator is illuminated, the battery
energy control module cannot isolate the
high voltage cables. Be aware that live working will be necessary to rectify
the fault. Failure to comply with
this instruction may result in personal injury or death.
- Be aware that a motor generator can generate a voltage if the wheels
are rotated, even if the electric
vehicle system has been made safe. Failure to comply with this instruction
may result in personal injury or
death.
CAUTIONS:
- Diagnosis by substitution from a donor vehicle is NOT acceptable.
Substitution of control modules does
not guarantee confirmation of a fault, and may also cause additional faults
in the vehicle being tested and
/or the donor vehicle.
- When probing connectors to take measurements in the course of the
pinpoint tests, use the adaptor kit,
part number 3548-1358-00.
NOTES:
- If the control module or a component is suspect and the vehicle
remains under manufacturer warranty,
refer to the Warranty Policy and Procedures manual, or determine if any
prior approval programme is in
operation, prior to the installation of a new module/component.
- Generic scan tools may not read the codes listed, or may read only
5-digit codes. Match the 5 digits from
the scan tool to the first 5 digits of the 7-digit code listed to identify
the fault (the last 2 digits give extra
information read by the manufacturer-approved diagnostic system).
- When performing voltage or resistance tests, always use a digital
multimeter accurate to three decimal
places, and with an up-to-date calibration certificate. When testing
resistance, always take the resistance
of the digital multimeter leads into account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Inspect connectors for signs of water ingress, and pins for damage
and/or corrosion.
- If DTCs are recorded and, after performing the pinpoint tests, a
fault is not present, an intermittent concern
may be the cause. Always check for loose connections and corroded terminals.
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and carry out the
recommendations as required.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity

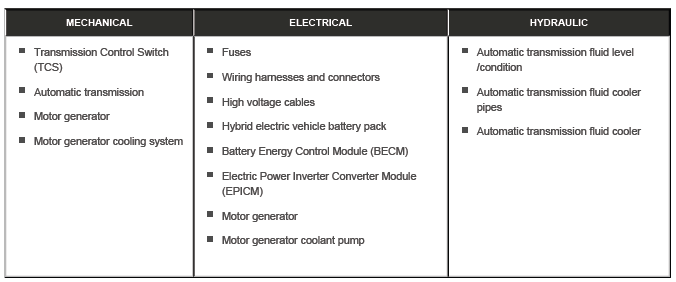

Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and carry out the
recommendations as required.
AUTOMATIC TRANSMISSION FLUID
FLUID LEVEL AND CONDITION CHECK
CAUTION:
The vehicle should not be driven if the fluid level is low as internal failure
can result.
NOTE:
The transmission fluid temperature must not be allowed to exceed 50ºC (122ºF)
whilst checking level.
Should the temperature rise above this figure, abort the check and allow the
transmission fluid to cool to
below 30ºC (86ºF).
This vehicle is not equipped with a fluid level indicator. An incorrect level
may affect the transmission operation and
could result in transmission damage. To correctly check and add fluid to the
transmission. Refer to the relevant
section in the workshop manual.
HIGH FLUID LEVEL
A fluid level that is too high may cause the fluid to become aerated due to
the churning action of the rotating internal
parts. This will cause erratic control pressure, foaming, loss of fluid from the
vent tube and possible transmission
damage. If an overfill condition is identified, with the engine at idle ensure
the fluid temperature is within the specified
range and allow the excess fluid to drain until a small thread of fluid runs
from the filler/level plug hole.
LOW FLUID LEVEL
A low fluid level could result in poor transmission engagement, slipping, or
damage. This could also indicate a leak in
one of the transmission seals or gaskets.
ADDING FLUID
CAUTION:
The use of any other type of transmission fluid other than that specified can
result in transmission damage.
If fluid needs to be added, add fluid in 0.50 liter increments through the
fill hole opening. Do not overfill the fluid. For
fluid type, refer to the Specification section in the workshop manual.
FLUID CONDITION CHECK
- Check the fluid level.
- Observe the color and the odor of the fluid. The color under normal
circumstances should be like honey, not
dark brown or black.
- Allow the fluid to drip onto a facial tissue and examine the stain.
- If evidence of solid material is found, the transmission fluid pan
should be removed for further inspection.
NOTE: In the event of a transmission unit replacement for internal
failure, the oil cooler and pipes must also be
replaced.
VIBRATION FROM TRANSMISSION
Vibration from the transmission may be caused by the installation of
incorrect front/rear drive units. Refer to Sections
205-02 and 205-03 for further guidance on how to diagnose and rectify this
issue.
