Land Rover Defender: Electric Park Brake Release When The Vehicle Has No Electrical Power

Land Rover Defender 2020-2024 Service Manual / Chassis / Brake System / Parking Brake and Actuation / Electric Park Brake Release When The Vehicle Has No Electrical Power

GENERAL PROCEDURES

GENERAL EQUIPMENT

Electric Park Brake Release When The Vehicle Has No Electrical Power

PART(S)

Electric Park Brake Release When The Vehicle Has No Electrical Power

CHECK

NOTES:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Remove the 2 rear wheels and tires.

3.

Electric Park Brake Release When The Vehicle Has No Electrical Power

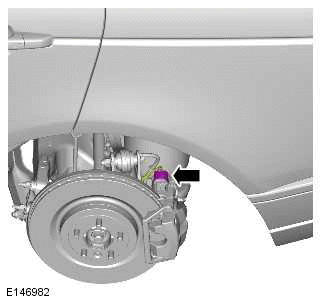

Disconnect the electrical connector from the Electric Park Brake (EPB) actuator.

4.

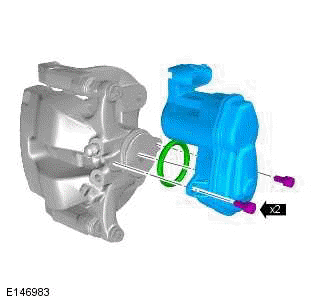

Electric Park Brake Release When The Vehicle Has No Electrical Power

5.

CAUTION: The piston must only be released far enough to release the clamping force on the brake disc.

Electric Park Brake Release When The Vehicle Has No Electrical Power

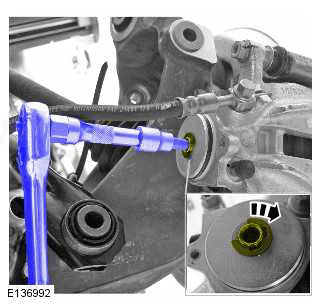

Use a suitable tool to release the piston as illustrated.

6. Repeat steps 3 to 5 for the other side.

ADJUSTMENT

1.

Electric Park Brake Release When The Vehicle Has No Electrical Power

2.

Electric Park Brake Release When The Vehicle Has No Electrical Power

Connect the electrical connector to the EPB actuator.

3. Repeat steps 1 and 2 for the other side.

4. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to calibrate the EPB actuator.

General Equipment: Jaguar Land Rover approved diagnostic equipment

5. Install the 2 rear wheels and tires.
