Land Rover Defender: Exterior Lighting - Component Location, Overview
COMPONENT LOCATION

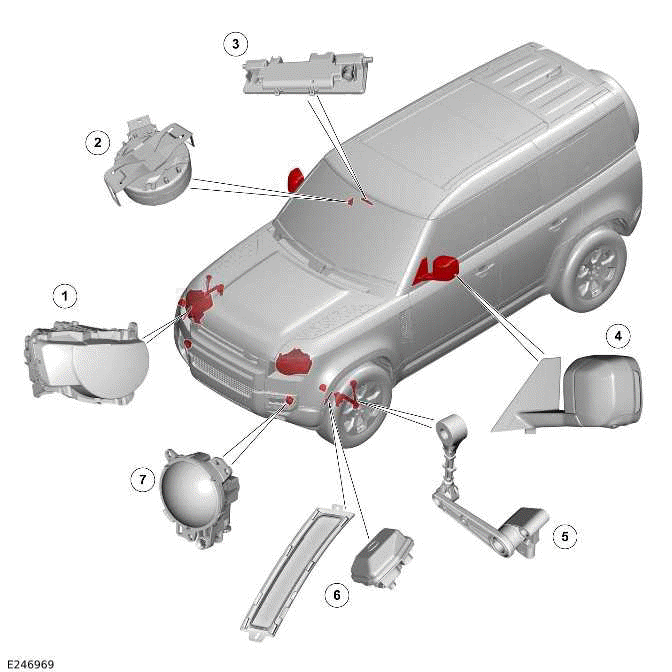

COMPONENT LOCATION - 1 OF 4 - FRONT LAMPS
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Headlamp assembly (quantity 2)
- Rain/light sensor
- Image Processing Module (IPMA)
- Door mirror - Side repeater lamp (quantity 2)
- Front height sensor (quantity 2)
- Front side marker lamp/Reflector (quantity 2) (North American
Specification (NAS) only)
- Front fog lamp (quantity 2) (if equipped)

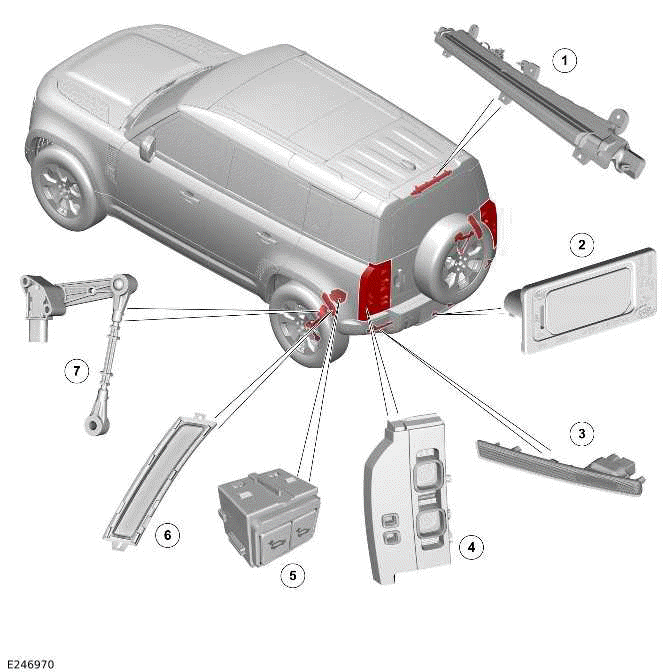

COMPONENT LOCATION - 2 OF 4 - REAR LAMPS
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- High Mounted Stop Lamp (HMSL)
- License Plate Lamp (quantity 2)
- Rear fog lamp/Reflector (quantity 2)
- Tail lamp assembly (quantity 2)
- Rear height adjust switch
- Rear side marker lamp/Reflector (quantity 2) (NAS only)
- Rear height sensor (quantity 2)

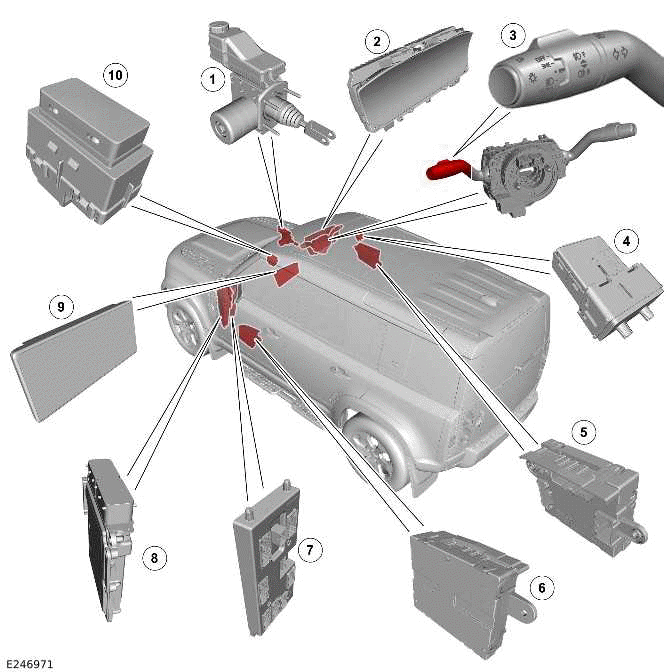

COMPONENT LOCATION - 3 OF 4
NOTES:
- Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD)
vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Integrated Power Brake
- Instrument Panel Cluster (IPC)
- Left steering column switch
- IPC dimmer (if equipped)
- Driver Door Control Module (DDM)
- Passenger Door Control Module (PDM)
- Body Control Module (BCM)/ Gateway Control Module (GWM)
- Powertrain Control Module (PCM)
- Touch Screen (FCDIM)
- Hazard warning lamp switch

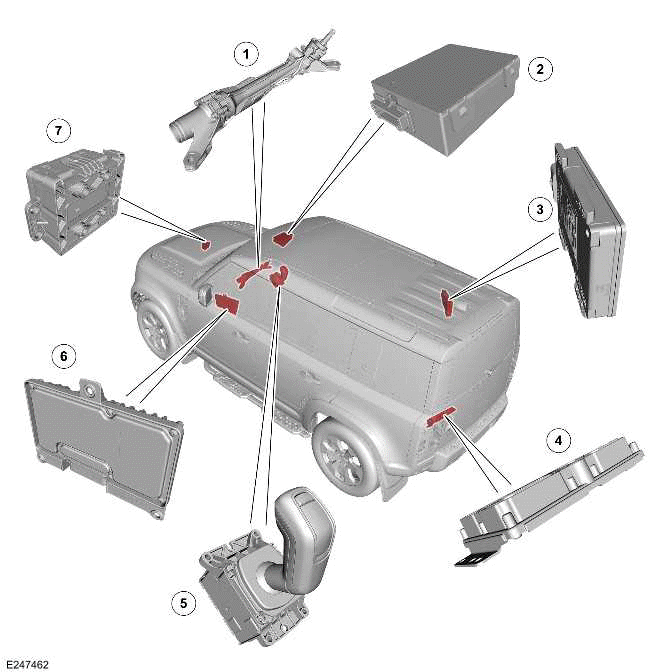

COMPONENT LOCATION - 4 OF 4
NOTES:
- RHD vehicle is shown, LHD vehicle is similar.
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- Power Steering Control Module (PSCM)
- Tire Pressure Monitoring System Control Module (TPM)
- Blindspot Monitoring Control Module (SODR)
- Rear Differential Control Module (RDCM)
- Transmission Control Switch (TCS)
- Driver Assistance Domain Controller (DADC)
- Cruise Control Module (CCM)
OVERVIEW
EXTERIOR LIGHTING
The exterior lighting consists of:
- The 2 headlamp assemblies, each contains:
- Low beam
- High beam
- Turn Signal Indicator
- Daytime Running Lamps (DRLs)
- Front Position Lamp (ROW)/Parking Lamp (NAS)
- The 2 tail lamp assemblies, each contains:
- Turn Signal Indicator
- Rear Position Lamp (ROW)/Tail Lamp (NAS)
- Stop lamp
- Reverse Lamp.
- Front side marker lamp/Reflector (quantity 2) (NAS only)
- Rear side marker lamp/Reflector (quantity 2) (NAS only)
- The front fog lamp (quantity 2) (if equipped)
- The rear fog lamp/Reflector (quantity 2)
- HMSL
- The front and rear height sensors
- License Plate Lamp (quantity 2)
- The IPMA
- The rain/light sensor.
The BCM/ GWM is connected to the High Speed (HS) Controller Area Network
(CAN) system buses and the FlexRay.
The BCM/ GWM contains a microprocessor which controls, monitors and evaluates
the functions.
Driver lighting selections are made using the:
- Left steering column switch
- The hazard warning lamp switch
- The IPC dimmer (if equipped)
- The FCDIM.
Depending on model and market specification, the lighting system may have:
- Auto High Beam, operates the headlamp automatically switched between low
and high beam in response to
signals from the IPMA or.
- Adaptive Driving Beam, evaluates the road scene ahead of the vehicle,
automatically adapts the light distribution
according to the position of the preceding, oncoming traffic. The Adaptive
Driving Beam also uses the IPMA.
- Adaptive Front lighting System (AFS) modifies the beam patterns based on
driving conditions and speed.
