Land Rover Defender: First Aid Kit

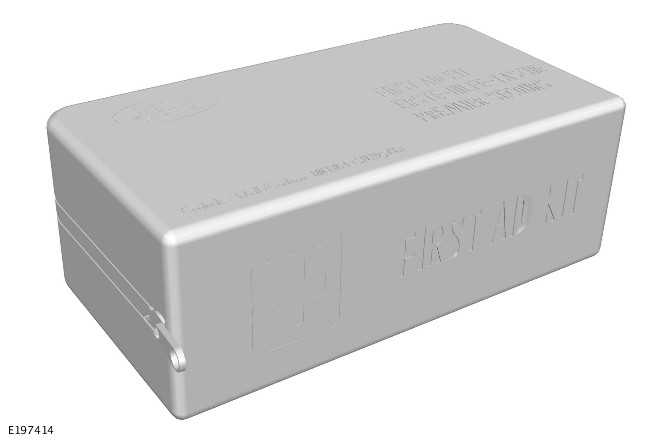

FIRST AID KIT - PART NUMBER: VPLCS0319
REMOVAL AND INSTALLATION
WARNING: Accessories which are not properly installed can be dangerous. Read the instructions carefully prior to fitting.
When fitting, comply with instructions at all times. If in doubt, contact your nearest approved retailer.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
INSTALLATION
1. Open the front passenger door.
2.
Open the lower glove compartment.
3.

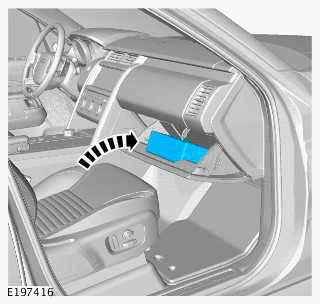

Place the first aid kit in the lower glove compartment.
4.

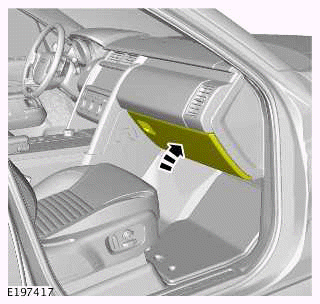

Close the lower glove compartment.
5. Close the front passenger door.
