Land Rover Defender: Floor Console
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the floor console upper trim.
3.
.png)

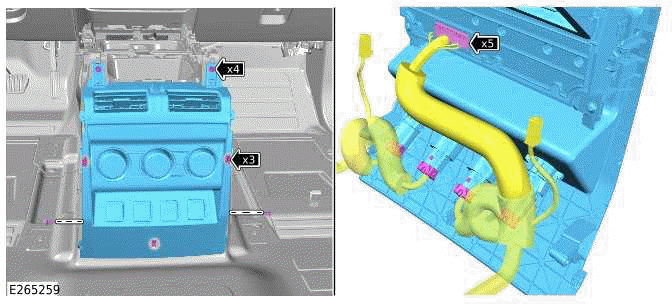

- Remove the 4 screws.
- Release the 3 clips.
- Disconnect the 5 electrical connectors.
- Remove the floor console rear trim panel.
4.
.png)

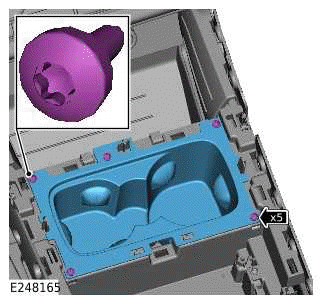

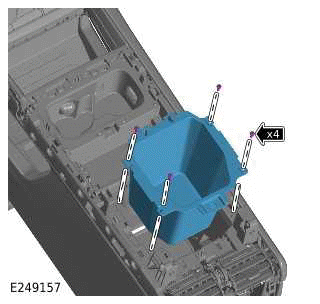

- Remove the 5 screws.
- Remove the cup holder.
5.
.png)
- Remove the 4 screws.
- Remove the floor console rear stowage compartment.
6.
.png)

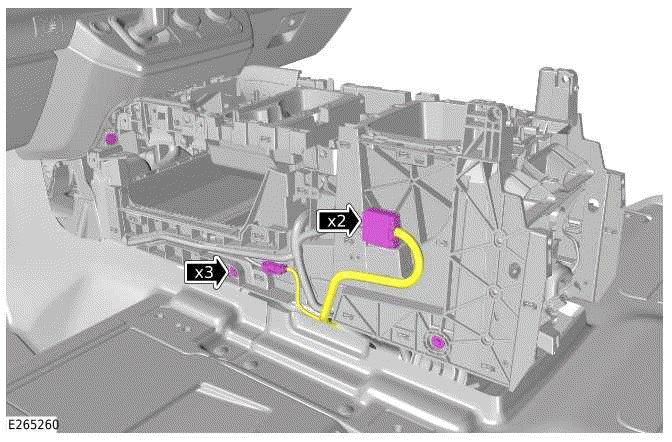

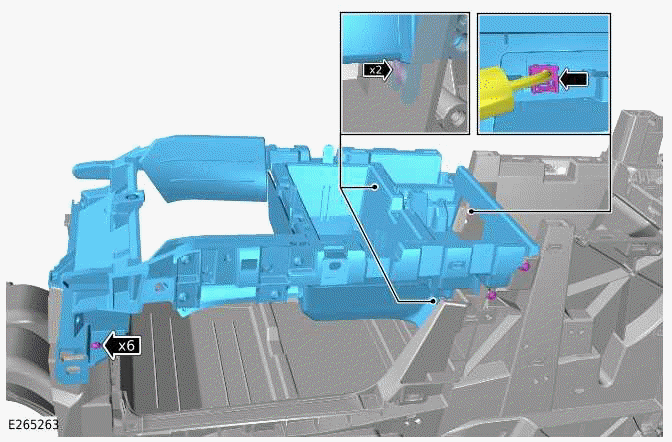

- Remove the 3 bolts.
- Disconnect the 2 electrical connectors.
- Reposition the floor console wiring harness.
7.
.png)

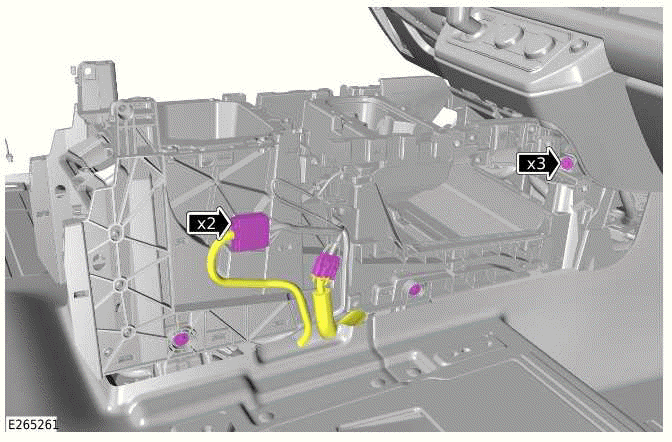

- Remove the 3 bolts.
- Disconnect the 2 electrical connectors.
- Reposition the floor console wiring harness.
8.
.png)

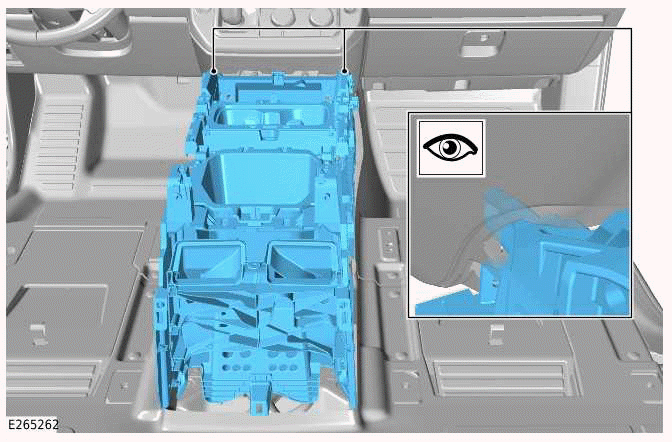

Remove the floor console.
9.
NOTE:
Only complete the following step(s) if a new component is to be installed.
.png)
- Remove the 6 screws.
- Release the 2 clips.
- Disconnect the electrical connector.
- Remove the floor console upper moulding.
10.
.png)

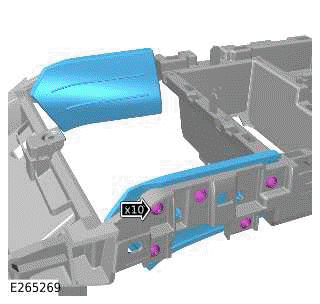

- Remove the 10 screws.
- Remove the 2 trim panels.
11.
.png)

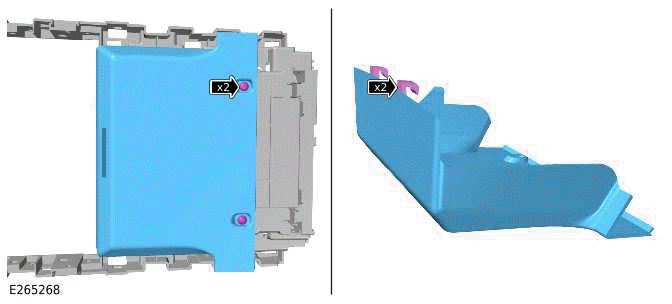

- Remove the 2 screws.
- Release the 2 clips.
- Remove the floor console lower moulding.
12.
.png)

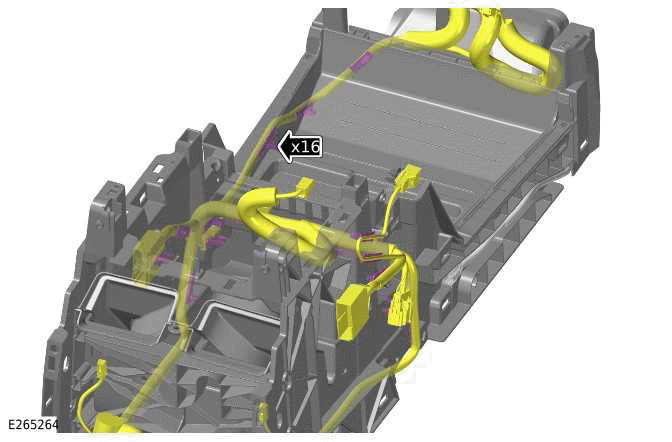

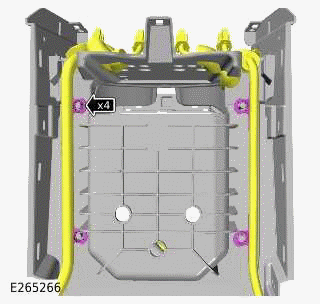

Release the 16 wiring harness clips.
13.
.png)

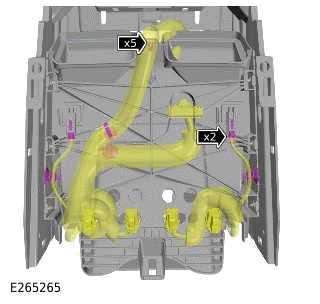

- Disconnect the 2 electrical connector from the climate sensors.
- Release the 5 clips.
14.
.png)
Release the 4 clips.
15.
.png)

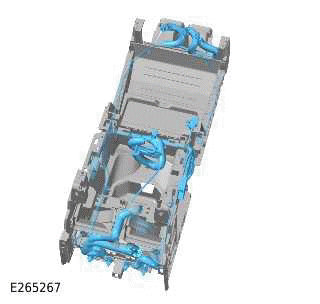

Remove the floor console wiring harness.
INSTALLATION
1.
NOTE:
Only perform the steps 1 to 5 if the component was previously removed.
Install the floor console wiring harness.
2.
- Install the 4 wiring harness clips to the bottom of the floor console.
- Install the 5 wiring harness clips to the rear of the floor console.
- Connect the 2 electrical connectors to the climate sensors.
- Install the 16 wiring harness clips to the front of the floor console.
3.
- Install the floor console lower moulding.
- Install the 2 clips.
- Install and tighten the 2 screws.
Torque: 1.7Nm
4.
- Install the 2 trim panels.
- Install and tighten the 10 screws.
Torque: 1.7Nm
5.
- Connect the electrical connector.
- Install the floor console upper moulding.
- Install the 2 clips.
- Install and tighten the 6 screws.
Torque: 1.7Nm
6.
- Install the floor console.
- Connect the 4 electrical connectors.
- Install and tighten the 6 bolts.
Torque: 9Nm
7.
- Install the cup holder.
- Install and tighten the 5 screws.
Torque: 1.2Nm
8.
- Install the floor console rear stowage compartment.
- Install and tighten the 4 bolts.
Torque: 1.7Nm
9.
- Connect the 5 electrical connectors.
- Install the 3 clips.
- Install the floor console rear trim panel.
- Install and tighten the 4 screws.
Torque: 1.7Nm
10. Install the floor console upper trim.
11. Connect the startup battery ground cable.
