SPECIFICATIONS
Capacities
.png)

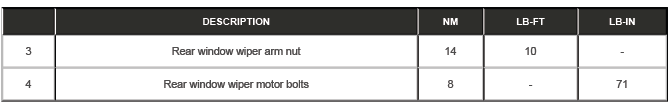

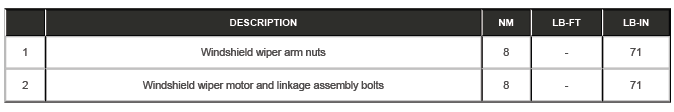

Torque Specifications

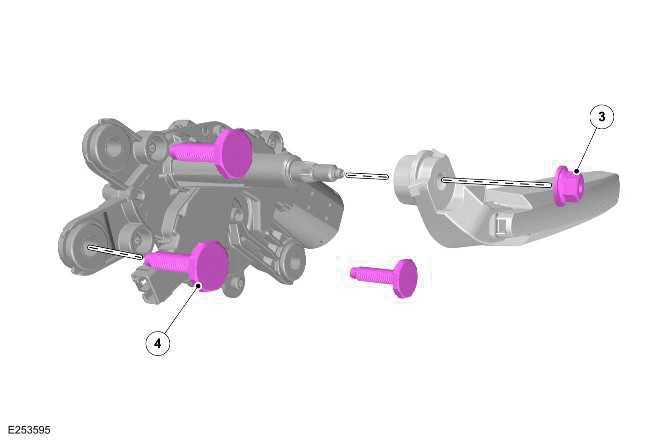

COMPONENT TORQUE LOCATION
.png)
.png)

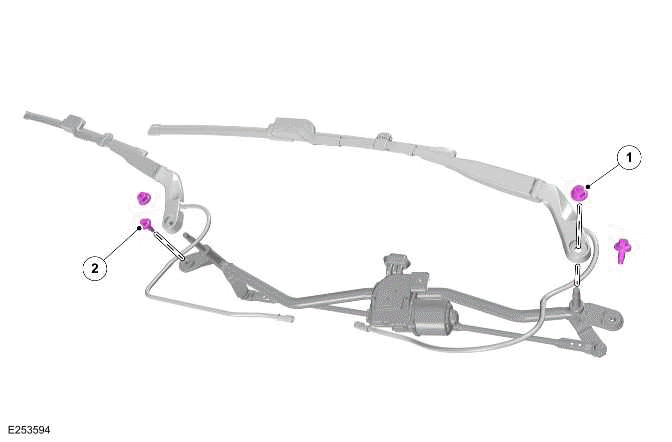

COMPONENT TORQUE LOCATION
.png)
.png)

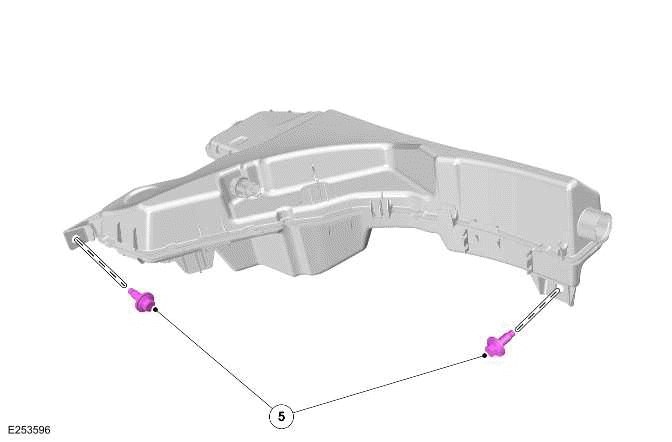

COMPONENT TORQUE LOCATION
.png)
.png)
- Wipers and Washers - Component Location, Overview
- Wipers and Washers - Description
- Wipers and Washers - Operation
- Headlamp Washer Jet
- Headlamp Washer Pump
- Rain/Light Sensor
- Rear Window Wiper Arm
- Windshield Washer Fluid Level Sensor
- Windshield Wiper Pivot Arm
- Windshield Washer Pump
- Windshield Washer Reservoir
- Windshield Wiper Motor and Linkage Assembly
- Rear Window Wiper Motor
READ NEXT:
Wipers and Washers - Component Location, Overview
COMPONENT LOCATION
COMPONENT LOCATION - 1 OF 2
NOTES:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD)
vehicle is similar.
Vehicle with 5 doors is shown, vehicle with 3 doors is sim
Wipers and Washers - Description
DESCRIPTION
WINDSHIELD WIPER CONTROL SWITCH
Tailgate wiper intermittent wipe position
Windshield wiper control switch
Rain/light sensor sensitivity adjust
Windshield fast wipe position
Windshie
Wipers and Washers - Operation
WINDSHIELD WIPERS
The windshield wiper system has the following functionality:
Flick wipe
Slow wipe
Fast wipe
Windshield wash and wipe
Automatic wipe.
Flick wipe
Flick wipe is activated when th
