Land Rover Defender: FM2 and DAB Antenna Amplifier
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the headliner.
2.

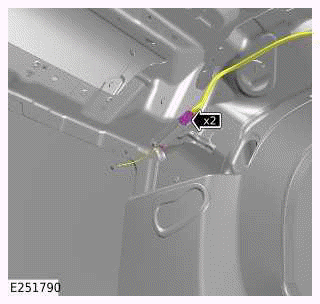

Disconnect the 2 electrical connectors.
3.

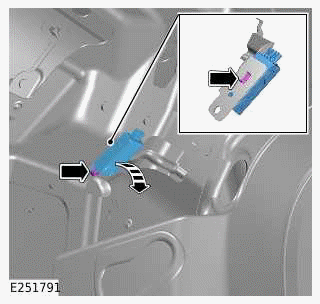

- Remove the bolt.
- Release the clip.
- Remove the FM2 and DAB antenna.
INSTALLATION
1.
NOTE:
Make sure that the component is correctly located.
- Install the FM2 and DAB antenna.
- Install and tighten the bolt.
Torque: 5Nm
2. Connect the 2 electrical connectors to the FM2 and DAB antenna.
3. Install the headliner.
