Land Rover Defender: Front Row Seat Backrest Cushion
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Seating / Front Row Seat Backrest Cushion
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to: All vehicles
1. Remove the front row seat backrest cover.
The following step(s) applies to: Vehicles with heated front row seats

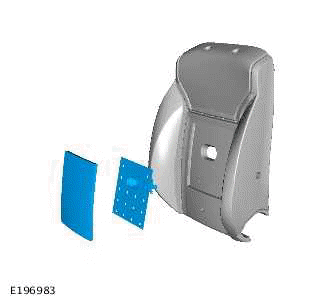

2.
.png)
Remove the front row seat backrest heater element.
The following step(s) applies to: Vehicles with climate controlled seats

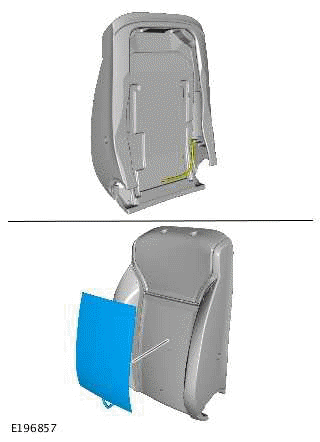

3.
.png)
Remove the climate control insert.
INSTALLATION
The following step(s) applies to: Vehicles with climate controlled seats
1. Install the climate control insert.
The following step(s) applies to: Vehicles with heated front row seats
2. Install the front row seat backrest heater element.
The following step(s) applies to: All vehicles
3. Install the front row seat backrest cover.
