Land Rover Defender: Front Row Seat Switchpack
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

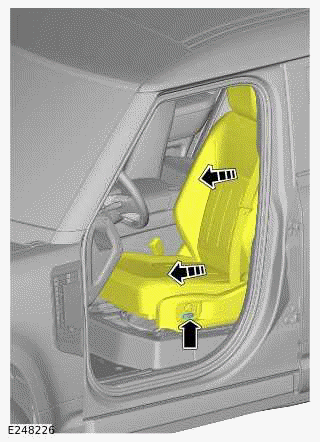

Position the front row seat forward.
2.
CAUTION: Take care not to damage the front row seat side trim during removal. Examine illustration before removal.
.png)

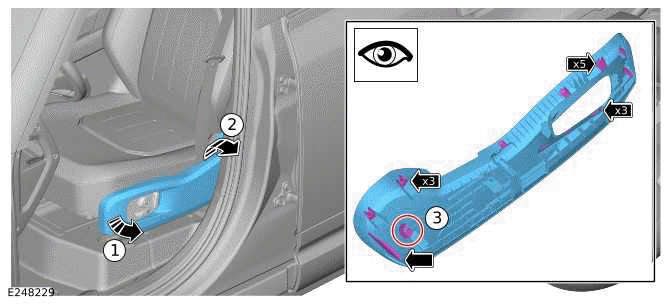

- Release the front row seat side trim front section.
- Release the front row seat side trim rear section.
- Release the highlighted clip and remove the front row seat side trim.
3.
.png)

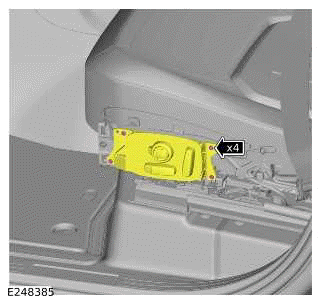

- Remove the 4 screws.
- Reposition the front row seat switchpack.
4.
.png)

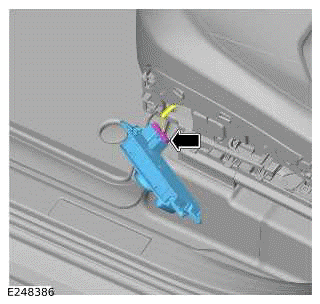

- Disconnect the electrical connector.
- Remove the front row seat switchpack.
INSTALLATION
1.
- Connect the electrical connector.
- Install the front row seat switchpack.
- Install and tighten the 4 screws.
Torque: 1.5Nm
2.
CAUTION: Make sure all the clips are correctly installed.
Install the front row seat side trim.
3. Reposition the front row seat to the center position.
