Land Rover Defender: Front Row Seat Recliner Motor
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Front Row Seat Recliner Motor
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the lumbar assembly.
2. Remove the front row seat cushion cover.
3.
.png)

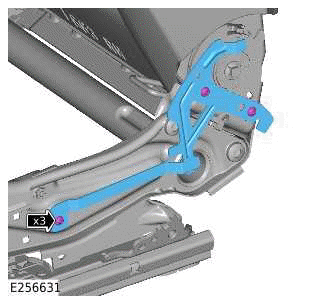

- Remove the 3 bolts.
- Remove the side trim panel bracket.
4.
.png)

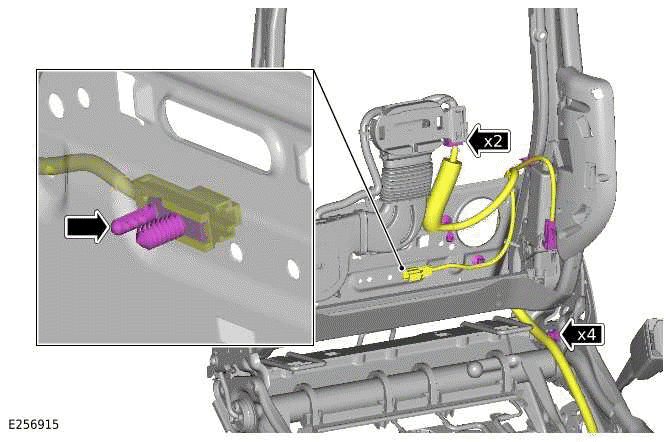

- Disconnect the 2 electrical connectors.
- Release the 5 wiring harness clips.
5.
.png)

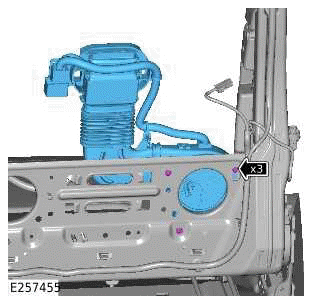

- Remove the 3 screws.
- Remove the front seat backrest blower motor.
6.
.png)

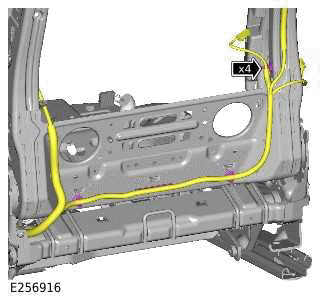

Release the 4 wiring harness clips.
7.
.png)

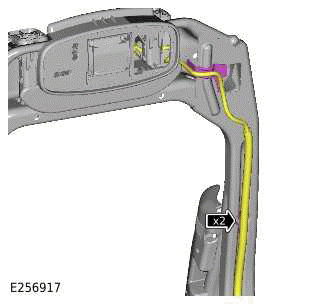

Release the 2 wiring harness clips.
8.
.png)

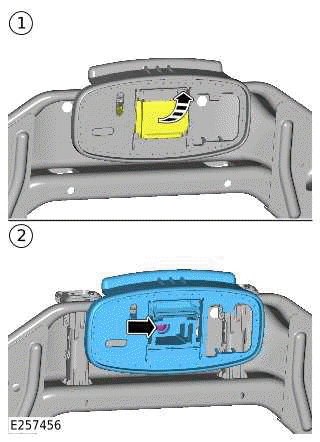

- Lift the cover to get access to the screw.
- Remove the screw.
- Remove the Rear Seat Entertainment (RSE) docking station.
9.
.png)

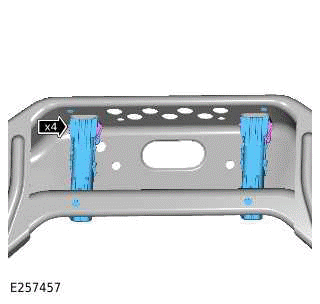

- Use a suitable tool to release the 4 clips.
- Remove the 2 head restraint support brackets.
10.
NOTE: Repeat the step for the other side.
.png)

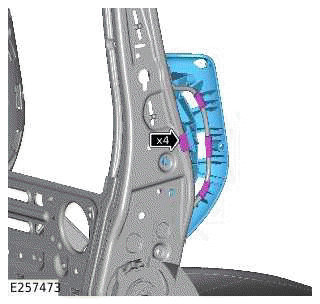

- Release the 4 clips.
- Remove the lumbar support.
11.
.png)

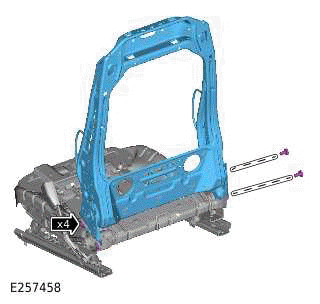

- Remove and discard the 4 bolts.
- Remove the front row seat recliner motor.
INSTALLATION
1.
- Install the front row seat recliner motor.
- Install and tighten the 4 new bolts.
Renew Part: Front seat frame bolt(s) Quantity: 4.
Torque: 50Nm
2.
NOTE: Repeat the step for the other side.
- Install the lumbar support.
- Secure the 4 clips.
3. Install the 2 head restraint support brackets.
4.
- Install the RSE docking station.
- Install and tighten the screw.
5. Install the 2 wiring harness clips.
6. Install the 4 wiring harness clips.
7.
- Install the front row seat backrest blower motor.
- Install and tighten the 3 screws.
8.
- Connect the 2 electrical connectors.
- Install the 5 wiring harness clips.
9.
- Install the side trim panel bracket.
- Install and tighten the 3 bolts.
10. Install the front row driver seat cushion cover.
11. Install the lumbar assembly.
