Land Rover Defender: Front Sunload Sensor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.
CAUTIONS:
- Take extra care not to damage the component.
- Do not use metal tools during this operation, removal of the
component(s) must be carried out
with a plastic trim tool.

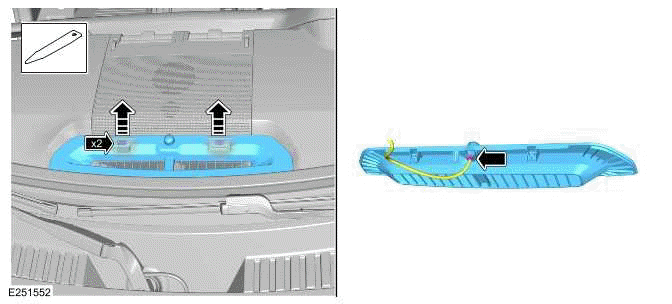

- Use a suitable plastic trim tool to remove the demist vent at the 2
clips.
- Disconnect the electrical connector from the sunload sensor.
2.
NOTE:

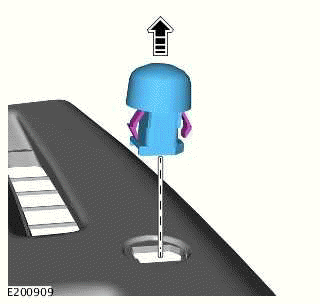

Make sure that the domed cap is used to remove the sunload sensor.
Remove the sunload sensor at the 2 clips.
INSTALLATION
1.
NOTE:
Make sure that the domed cap is used to install the sunload sensor.
Install the sunload sensor at the 2 clips.
2.
- Connect the electrical connector to the sunload sensor.
- Install the demist vent at the 2 clips.
