Land Rover Defender: Instrument Cluster - Removal and Installation
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
REMOVAL
NOTES:
- When a new instrument cluster is to be installed, the Jaguar Land
Rover (JLR) approved diagnostic
system must be connected to the vehicle and the instrument cluster renewal
procedure followed. This will
allow vehicle coding data and current service interval data to be correctly
installed to the new instrument
cluster.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.

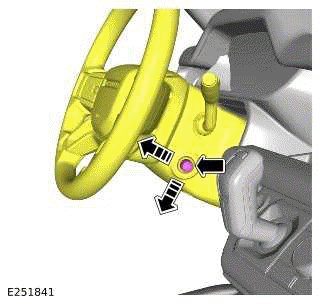

1.
Position the steering wheel as illustrated.
2. Disconnect the startup battery ground cable.
3. Remove the instrument panel lower trim.

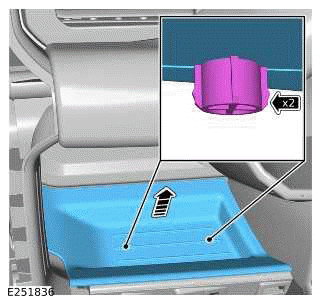

4.
Remove the instrument panel left upper tray at the 2 fasteners.

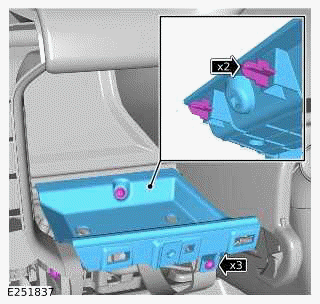

5.
- Remove the 2 screws and 1 bolt.
- Remove the bracket of the instrument panel left upper tray.

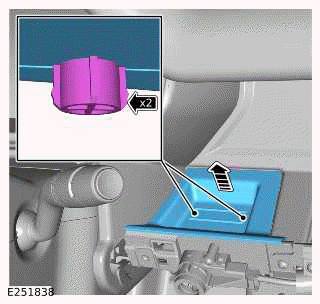

6.
- Remove the instrument panel center upper tray at the 2 fasteners.
7.
CAUTION:
Take extra care not to damage the component.
- Remove the 2 screws.
- Release the trim panel at the 2 clips.

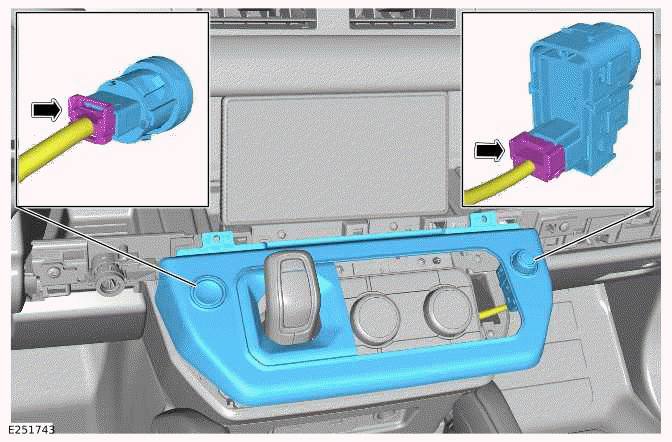

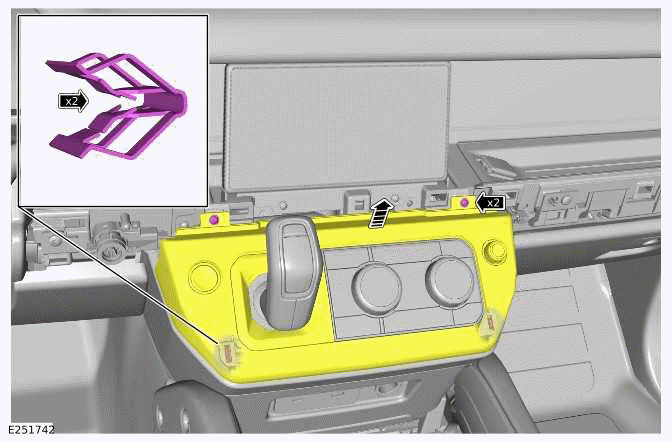

8.
- Disconnect the 2 electrical connectors from the 2 switches.
- Remove the trim panel.

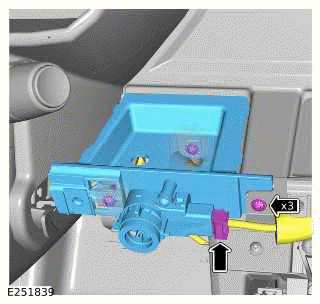

9.
- Remove the 3 screws.
- Disconnect the electrical connector from the in-vehicle temperature
sensor.
- Remove the bracket of the instrument panel center upper tray.

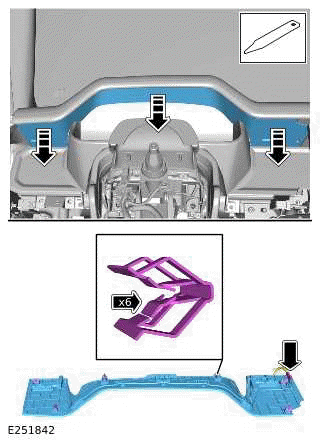

10.
CAUTIONS:
- Do not use metal tools during this operation, removal of the
component(s) must be completed
with a plastic trim tool.
- Take extra care not to damage the component.
- Use a suitable plastic trim tool, release the 6 clips.
- Disconnect the electrical connector from the ambience lighting wiring
harness.
- Remove the Instrument Cluster (IC) upper trim panel.

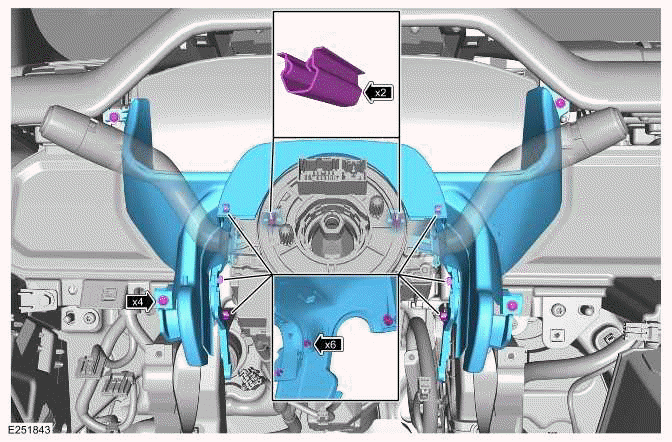

11.
- Release the 8 clips.
- Remove the 4 screws.
- Remove the steering column upper trim panel.

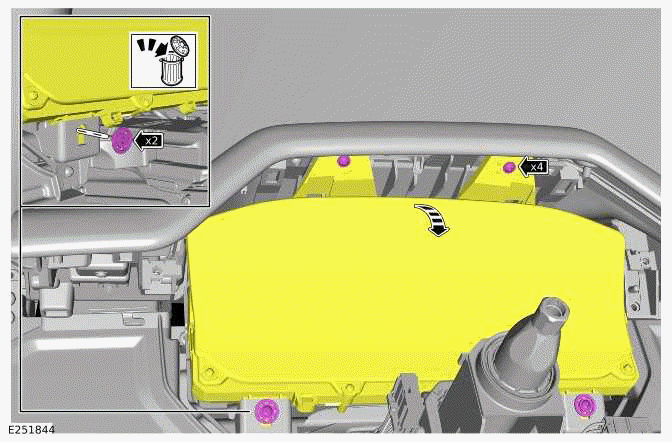

12.
CAUTION:
Take extra care not to damage the component.
- Remove the 4 screws.
- Remove and discard the 2 fasteners.
- Release the IC.
13.

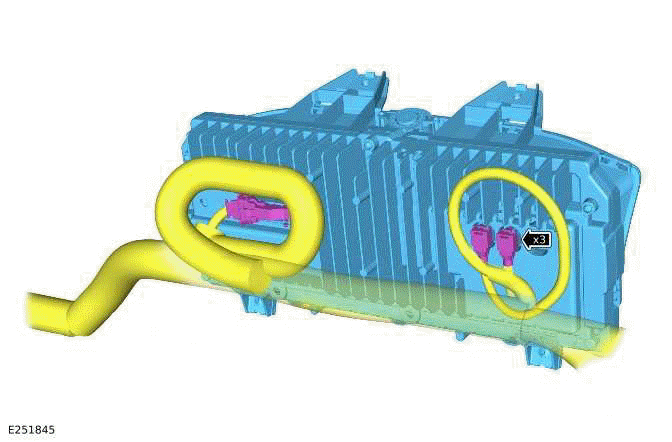

- Disconnect the 3 electrical connectors from the IC.
- Remove the IC.
INSTALLATION
1.
CAUTION:
Take extra care not to damage the component.
- Connect the 3 electrical connectors to the Instrument Cluster (IC).
- Install the IC.
- Install the 2 new fasteners.
- Install and tighten the 4 screws.
Torque: 1.7Nm
2.
- Install the steering column upper trim panel.
- Secure the 8 clips.
- Install and tighten the 4 screws.
Torque: 1.7Nm
3.
CAUTIONS:
- Make sure the connector is correctly secured.
- Take extra care not to damage the component.
- Connect the electrical connector to the ambience lighting wiring
harness.
- Install the instrument cluster upper trim panel to the 6 clips.
4.
- Install the bracket of the instrument panel center upper tray.
- Install and tighten the 3 screws.
Torque: 1.7Nm
- Connect the electrical connector in-vehicle temperature sensor.
5. Install the instrument panel center upper tray to the 2 fasteners.
6.
- Connect the 2 electrical connectors to the 2 switches.
- Install the trim panel at the 2 clips.
- Install and tighten the 2 screws.
Torque: 0.6Nm
7.
- Install the bracket of the instrument panel left upper tray.
- Install and tighten the 2 screws and 1 bolt.
Torque: 1.7Nm
8. Install the instrument panel left upper tray to the 2 fasteners.
9. Install the instrument panel lower trim.
10. Connect the startup battery ground cable.
11.
NOTE:
This step is only required if a new component is installed.
