Land Rover Defender: Driver Door Module
DIAGNOSIS AND TESTING
DESCRIPTION AND OPERATION
For a detailed description of the driver/passenger door modules, refer to the
relevant description and operation
sections in the workshop manual.
INSPECTION AND VERIFICATION
CAUTIONS:
NOTES:
- If a control module or a component may be at fault and the vehicle
remains under manufacturer warranty,
refer to the Warranty Policy and Procedures manual, or determine if any
prior approval program is in
operation, prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity

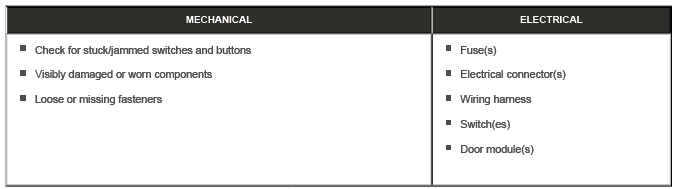

Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, check for diagnostic trouble codes
(DTCs) and refer to the diagnostic
trouble codes index
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required
