Land Rover Defender: Loadspace Rails - 110

LOADSPACE RAILS - 110, PART NUMBER: VPLES0543

REMOVAL AND INSTALLATION

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTES:

Loadspace Rails - 110

REMOVAL

1.

Loadspace Rails - 110

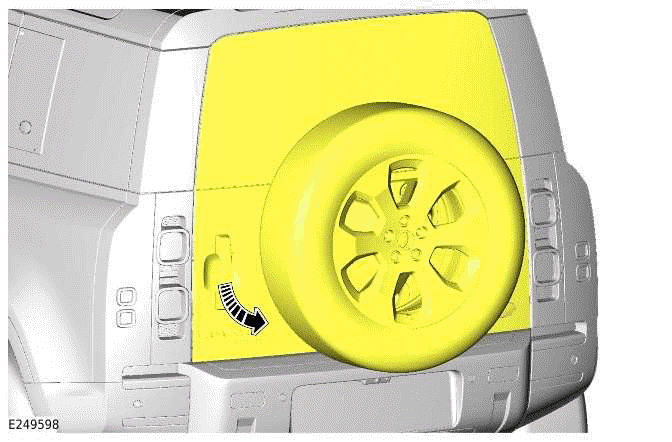

Open the tailgate.

2.

Loadspace Rails - 110

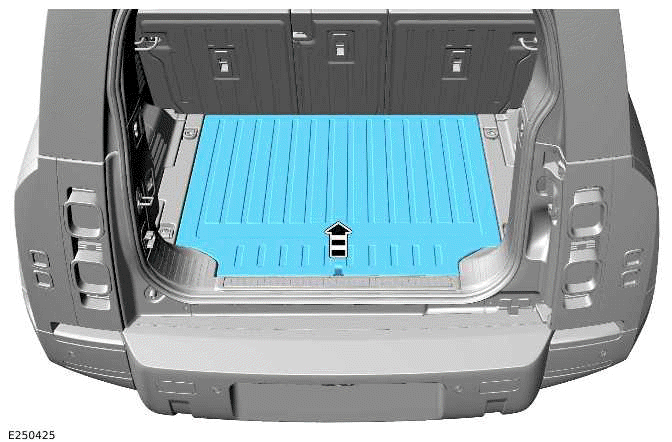

Remove the loadspace floor trim.

3.

NOTE: This step must be completed on both sides of the loadspace.

Loadspace Rails - 110

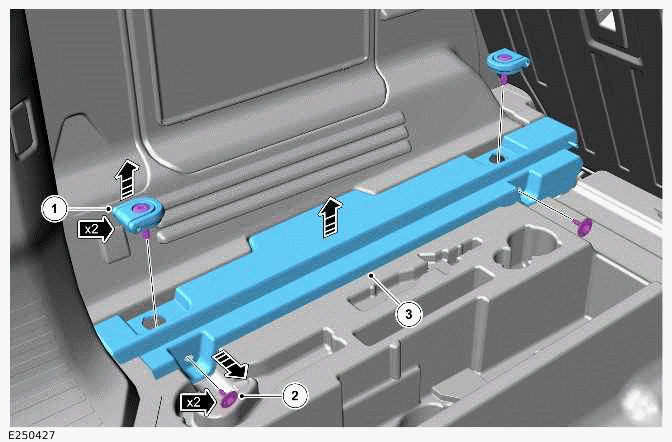

Remove the illustrated trim.

  1. Remove the fixed D-loop anchor points.
  2. Remove and discard the 2 retaining bolts.
  3. Remove and discard the trim.

INSTALLATION

1.

Loadspace Rails - 110

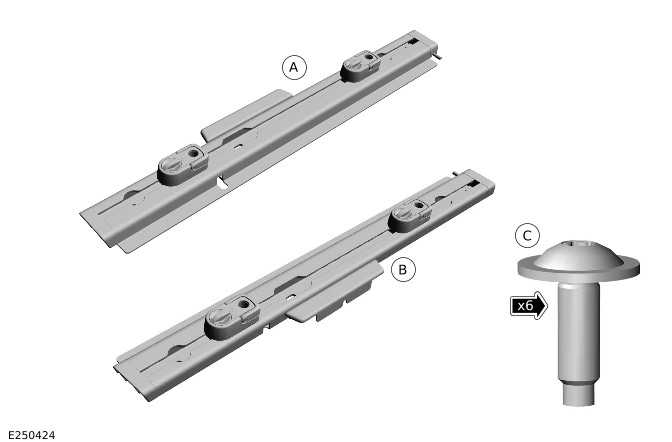

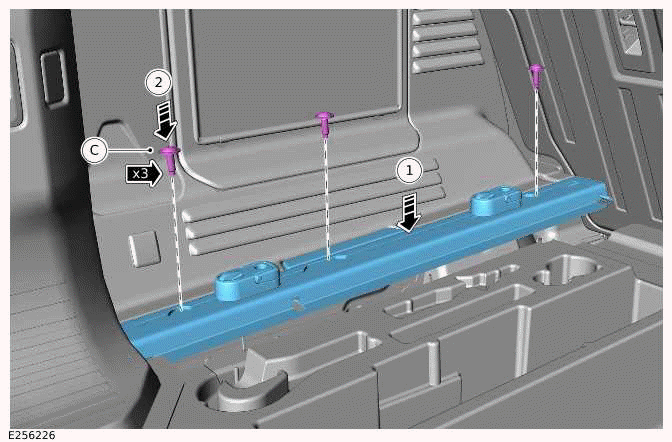

Install the loadspace rail (A) and the 3 bolts (C).

  1. Install the loadspace rail (A).
  2. Install the 3 loadspace rail bolts (C).

    Torque: 24 Nm

2.

Loadspace Rails - 110

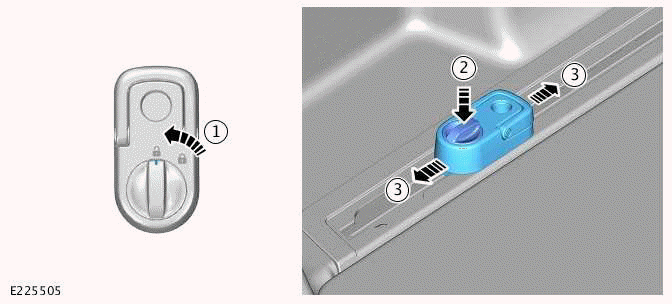

Adjust the sliding D-loop anchor points as required.

  1. Unlock the D-loop anchor point.
  2. Push down as illustrated.
  3. Slide the D-loop anchor point to the required position.
  4. Lock the D-loop anchor point.

3. Repeat install steps 1 to 2 to install the loadspace rail (B) to the right side of the loadspace.

4.

Loadspace Rails - 110

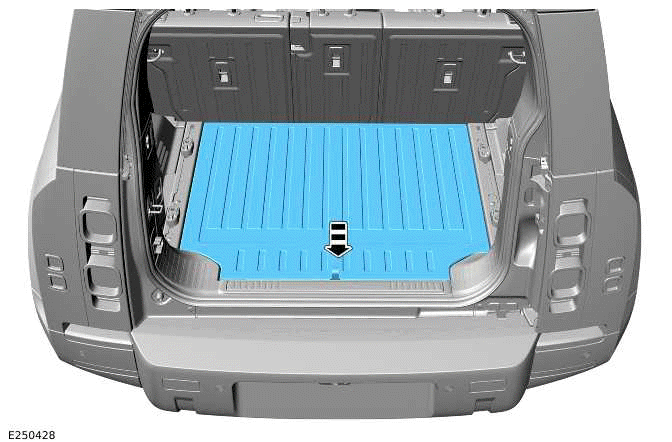

Install the loadspace floor trim.

5. Close the tailgate.
