Land Rover Defender: Manual front seats

Do not adjust the seat while the vehicle is moving. Doing so could cause a loss of vehicle control and personal injury.

Take care when retrieving items that have fallen down the side, back, front or underneath the seat. Sharp objects may be present in these areas, which could present a risk of injury. Always stop the vehicle before retrieving items.

Land Rover Defender. Front seats

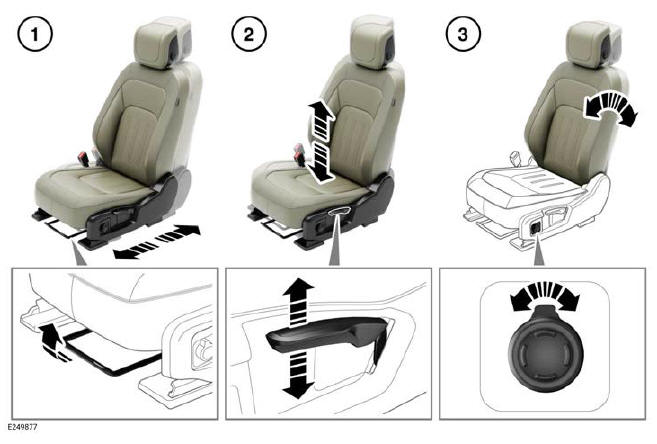

Adjust the position of the manual front seats as follows:

  1. Forward and rearward adjustment.
  2. Height adjustment.
  3. Seatback angle adjustment.

The position of the head restraints can also be adjusted.

ELECTRIC FRONT SEATS

Make sure that you have read and fully understood the relevant warnings before using any of the features in this section.

Land Rover Defender. Front seats

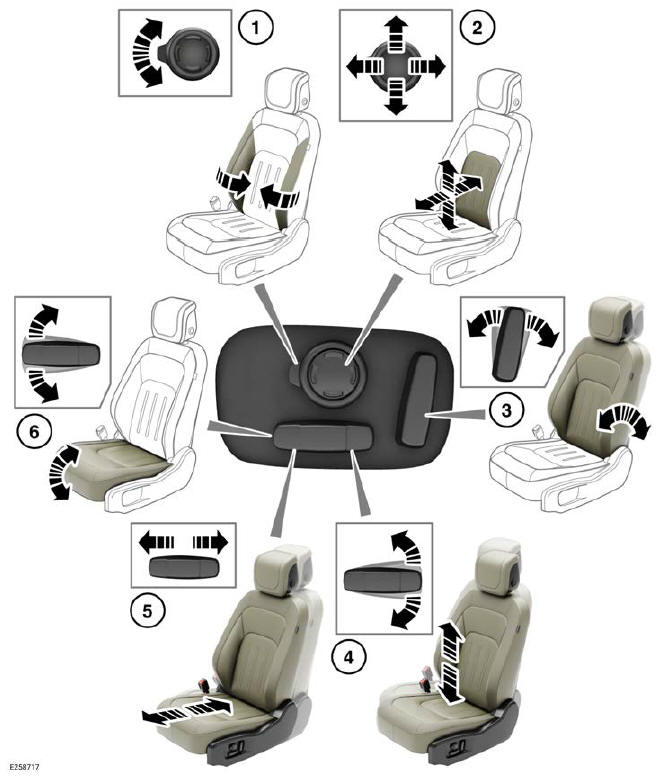

Adjust the position of the electric front seats as follows:

  1. Bolster inflate and deflate.
  2. Lumbar support.
  3. Seatback angle.
  4. Seat height.
  5. Forward and rearward position.
  6. Cushion tilt.

JUMP SEAT

Make sure that you have read and fully understood the relevant warnings before using any of the features in this section.

The jump seat is located between the driver and passenger seat, and can be folded to use the cup holders.

Land Rover Defender. Front seats

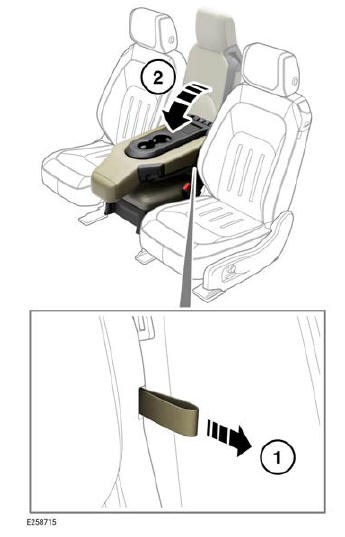

To fold the jump seat:

  1. Pull the strap downwards.
  2. Move the seatback forward until it locks into the lowered position.

RESTRICTED FRONT SEAT TRAVEL

Make sure that you have read and fully understood the relevant warnings before using any of the features in this section.

If front seat travel is restricted or obstructed, remove the obstruction and reset the seat adjustment mechanism, as follows:

1. Operate the seat switch again to continue the stalled adjustment.

2. When seat movement resumes, hold the seat switch until the end of travel in that direction has been reached.

3. Seat adjustment can now be carried out as normal.
