Land Rover Defender: Passenger Junction Box
Land Rover Defender 2020-2025 Service Manual / Electrical / Electrical Distribution / Module Communications Network / Passenger Junction Box
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Reft Hand Drive (RHD) illustration(s) shown, Light Hand Drive (LHD) is similar.
1. Disconnect the startup battery ground cable.
2. Remove the A-pillar lower trim panel.
3.
.png)

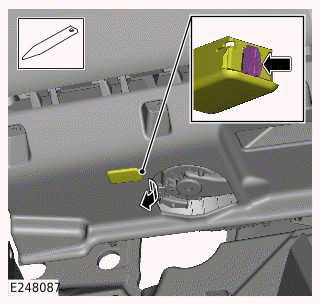

Use a suitable tool to release the footwell lamp.
4.
.png)

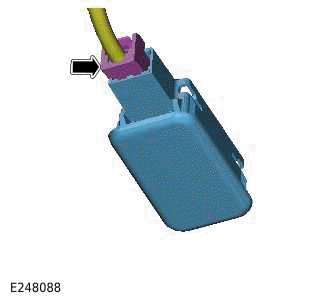

- Disconnect the electrical connector.
- Remove the footwell lamp.
5.
.png)

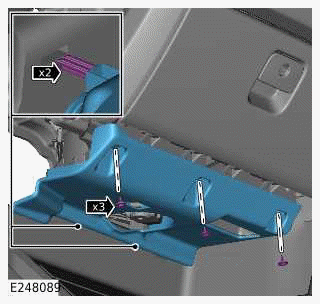

- Remove the 3 bolts.
- Release the 2 clips.
- Remove the passenger side footwell trim panel.
6.
.png)

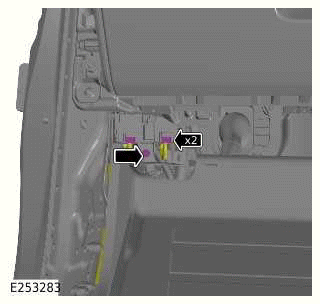

- Remove the nut.
- Disconnect the 2 electrical connectors from the Passenger Junction Box (PJB).
7.
.png)

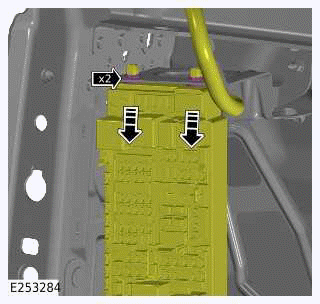

Release the 2 grommets.
8.
NOTE: Note the position of the electrical connectors.
.png)

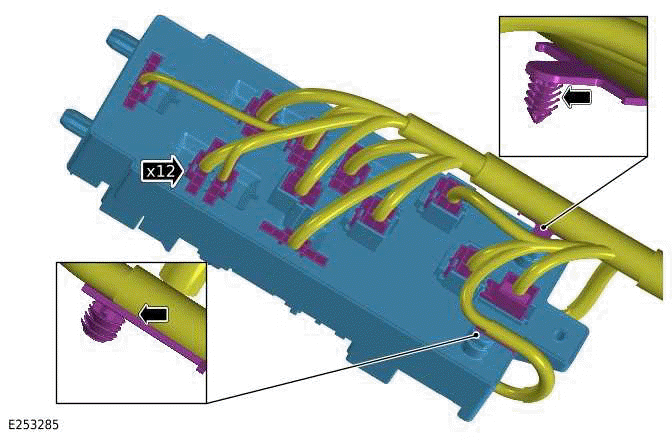

- Release the 2 wiring harness clips.
- Disconnect the 12 electrical connectors from the PJB.
- Remove the PJB.
INSTALLATION
1.
CAUTION: Make sure the electrical connectors are installed in the correct position.
- Install the 12 electrical connectors to Passenger Junction Box (PJB).
- Install the 2 wiring harness clips.
- Install the PJB.
2. Install the 2 PJB grommets.
3.
- Install and tighten the PJB nut.
Torque: 5.4Nm
- Connect the 2 electrical connectors to PJB.
4.
- Install the passenger side footwell trim panel.
- Install the 2 clips.
- Install and tighten the 3 bolts.
Torque: 5Nm
5.
- Connect the electrical connector to the footwell lamp.
- Install the footwell lamp.
6. Install the A-pillar lower trim panel.
7. Connect the startup battery ground cable.
