Land Rover Defender: Power Steering

SPECIFICATIONS

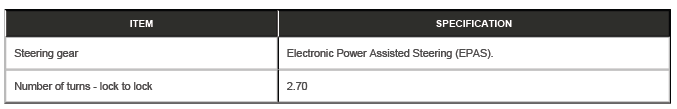

General Specification

Power Steering

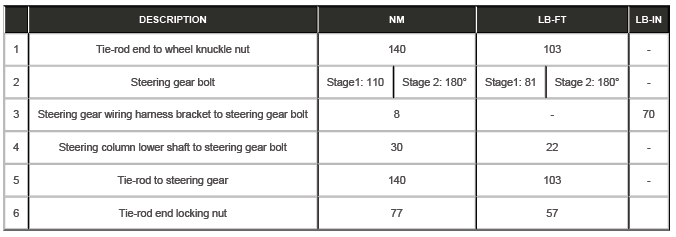

Torque Specifications

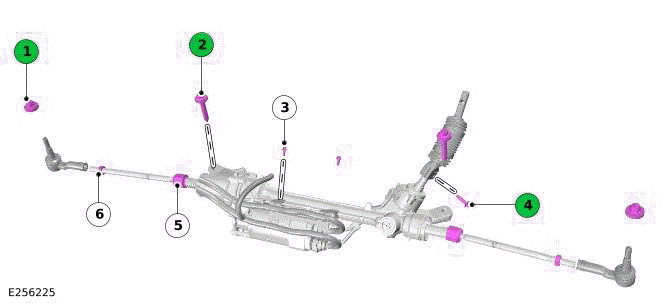

COMPONENT TORQUE LOCATION

Power Steering

NOTE: Numbers with green background are a single use component.

Power Steering
