Land Rover Defender: Raised Air Intake

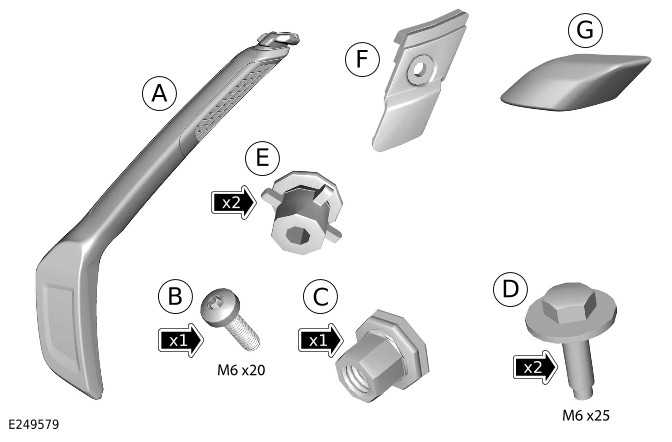

RAISED AIR INTAKE - PART NUMBER: VPLEP0435
REMOVAL AND INSTALLATION
WARNING:
Accessories which are not correctly installed can be dangerous. Read the
instructions carefully prior to
installation. Comply with instructions at all times. If in doubt, contact your
nearest approved retailer.
NOTES:
- The raised air intake is always installed to the left side of the
vehicle.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- Appearance of part (F) may vary. Install process remains the same.
REMOVAL
1.
CAUTIONS:
- Take care to avoid damage to the vehicle paintwork and exterior
finishers.
- Retain the lower section of the A-pillar trim.
NOTE:
The raised air intake is always installed to the left side of the vehicle.

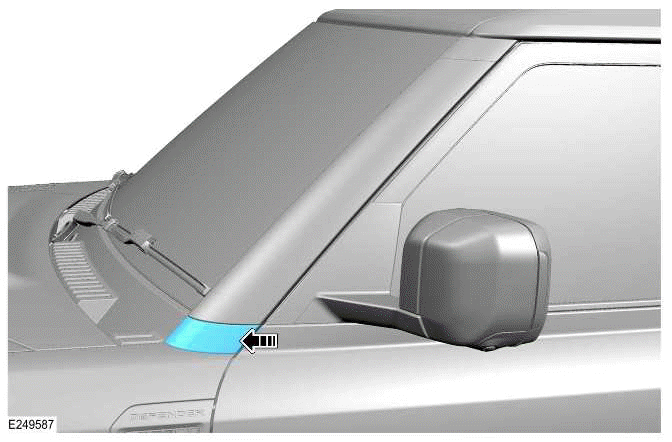

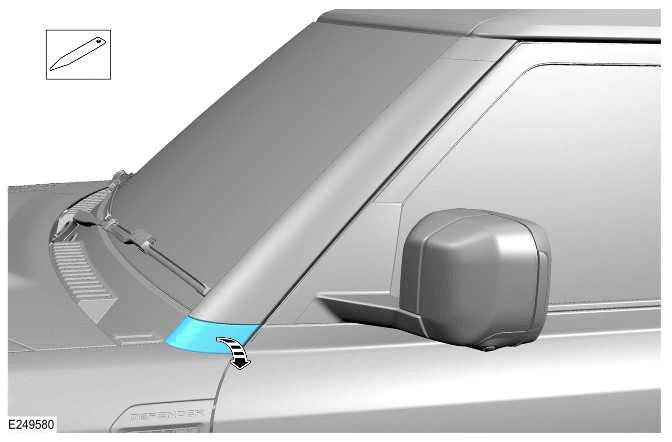

Use a suitable plastic trim tool to remove the lower section of the A-pillar
trim.

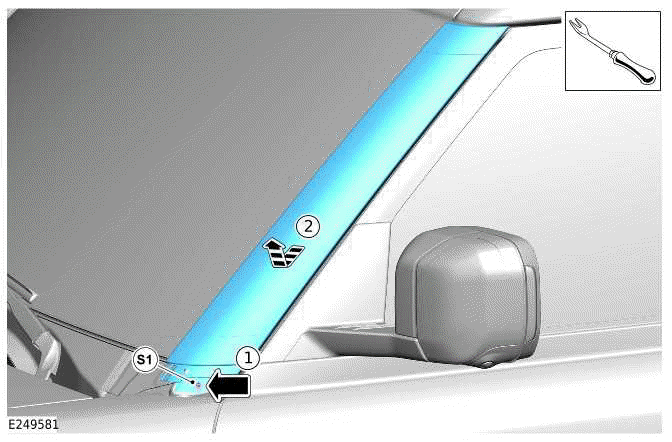

2.
CAUTIONS:
- Take care to avoid damage to the vehicle paintwork and exterior
finishers.
- Retain the A-pillar trim and the fixing.

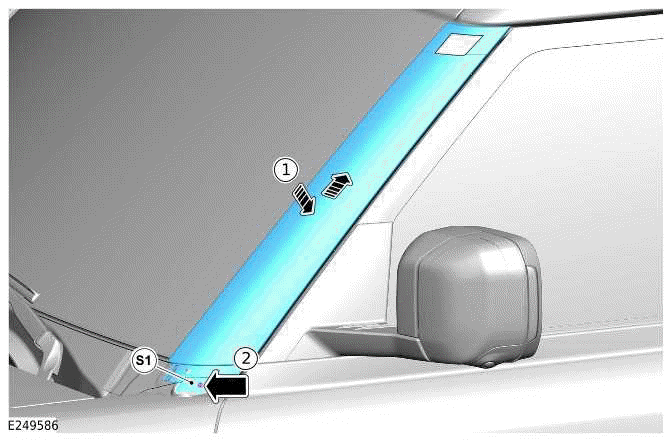

Use a suitable plastic trim tool to remove the A-pillar trim.
- Remove the fixing (S1).
- Remove the A-pillar trim by sliding downward first and then lifting
away.

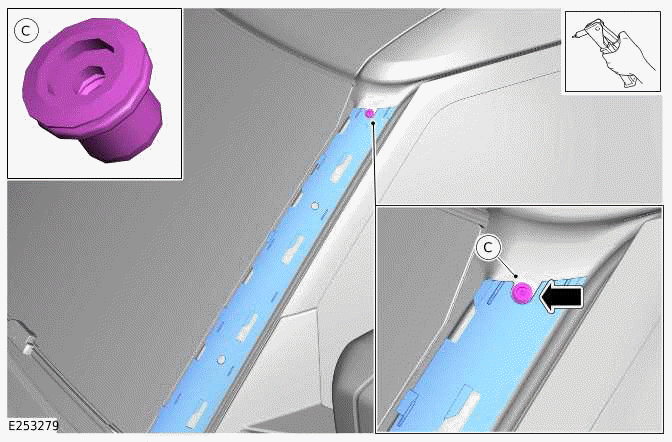

3.
WARNING:
Make sure that the rivet nut (C) is correctly formed in the A pillar and is
checked to make sure it is
secure before moving to the next step.
Use a rivet nut installation tool to install the rivet nut (C) to the vehicle
body as illustrated.
- There is a sticker over the hole that will need to be pierced before you
install the rivet nut.
- There is a cutout in the A-pillar trim that allows the rivet nut to be
installed at the correct location.

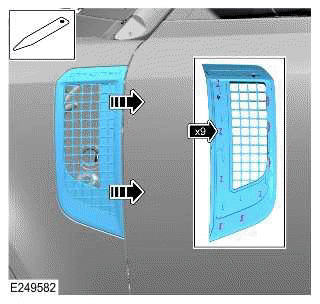

4.
CAUTION:
Take care to avoid damage to the vehicle paintwork and exterior finishers.
Use a suitable plastic trim tool to remove the side vent trim. Discard the
side vent trim.
INSTALLATION

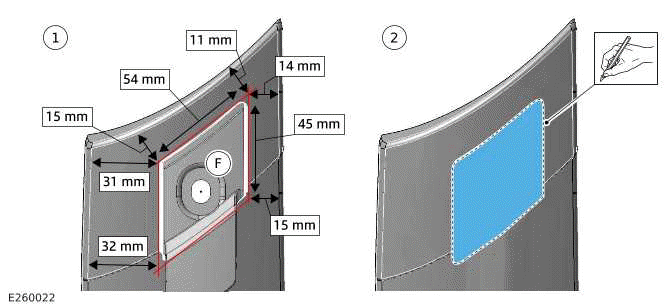

1.
Create guide lines that define the area to be cut from the A-pillar trim.
- Use the dimensions as illustrated to mark the area on the A-pillar trim
that needs to be cut. Use the
bracket (F) to check the guide lines are correct and help identify the cut
guide lines.
- Mark the cut guide line.
2.
WARNING:
Make sure to wear suitable personal protective equipment.

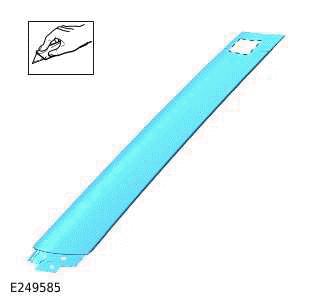

Use suitable tooling to cut the A-pillar trim as illustrated.
- Cut the A-pillar trim by following the cut guide line.
3.
Install the A-pillar trim.
- Install the A-pillar trim. Locate onto the A-pillar and then slide
upwards.
- Install the fixing (S1).
4.
Install the lower section of the A-pillar trim.

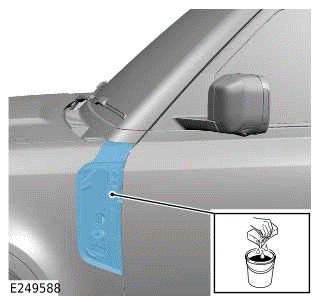

5.
WARNING:
Make sure to wear suitable personal protective equipment.
Clean the illustrated area.

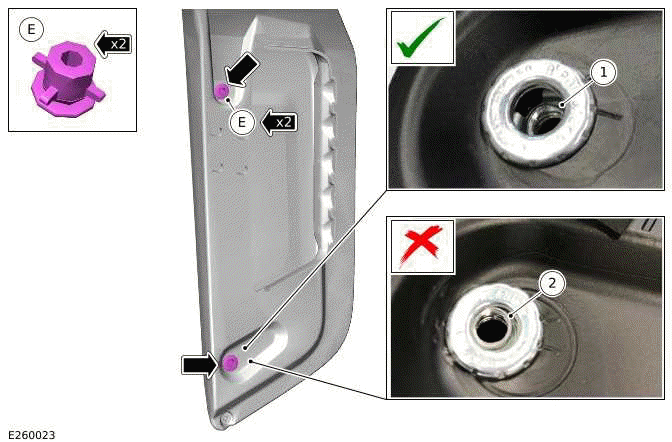

6.
CAUTIONS:
- Take care to avoid damage to the raised air intake (A) when
installing the rivet type nuts. Place
protective material under the raised air intake during this step.
- Take care that the rivet type nuts are not over tightened. Check the
appearance of the rivet type nut
as illustrated.
Use suitable tooling to install the 2 rivet type nuts (E) to the raised air
intake (A) as illustrated. Do not over
tighten the nuts.
- Rivet type nut correctly installed. Note the correct recessed position
of the thread. The thread must also
be concentric to the fixing.
- Rivet type nut damaged. Note the incorrect positioning of the thread
which is sitting flush with the face of
the fixing. The thread may also appear to one side within the fixing.
7. Remove left side door.
8.

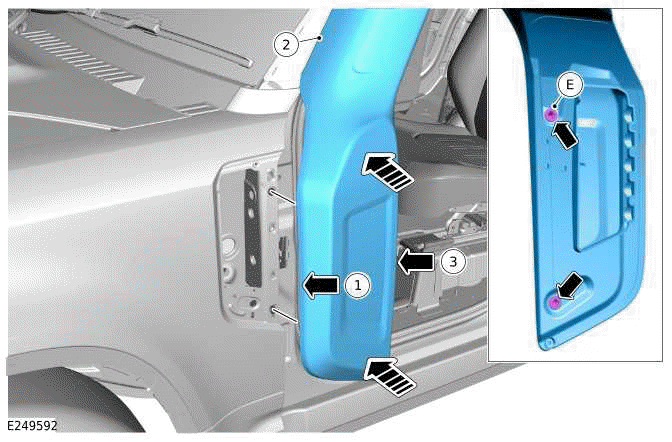

Align and position the raised air intake (A) against the vehicle.
- Install the arrowed edge.
- Check the alignment of the full height of the raised air intake against
the A-pillar.
- Install the arrowed edge. Make sure the rivet type nuts (E) align with
the matching holes.

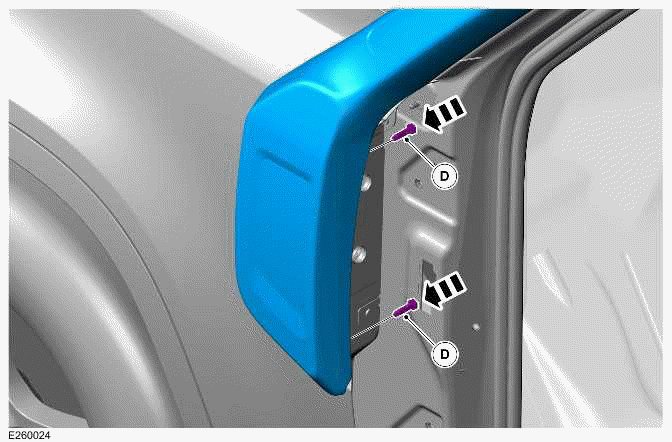

9.
CAUTIONS:
- Protect the gap between the body and the fender to prevent fixings
from dropping into the void.
- Check the alignment of the raised air intake against the vehicle
before installing.
NOTE:
This step requires the aid of another person.
Install, but do not fully tighten the 2 bolts (D) to the 2 rivet type nuts
(E) that are part of the raised air intake.
- Install the bolts (D) from the inside of the vehicle fender.
10.
NOTES:
- The A-pillar trim is hidden to provide extra clarity.
- The A post bracket must sit directly on to the feature on the A
pillar carrier as illustrated.

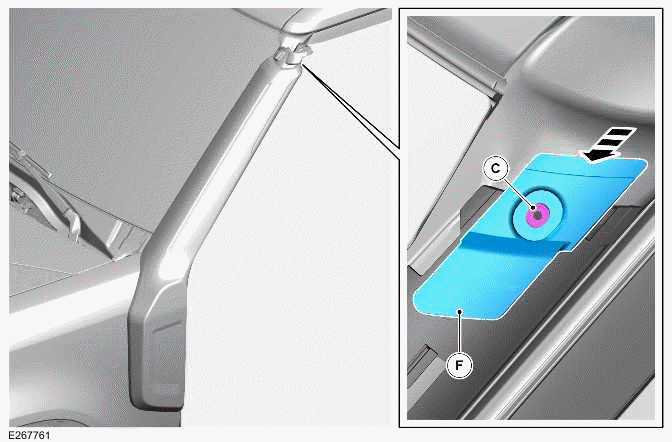

Install A post bracket (F) into the slot in the raised air intake.
- Make sure the hole in the A post bracket (F) aligns with the fixing (C).

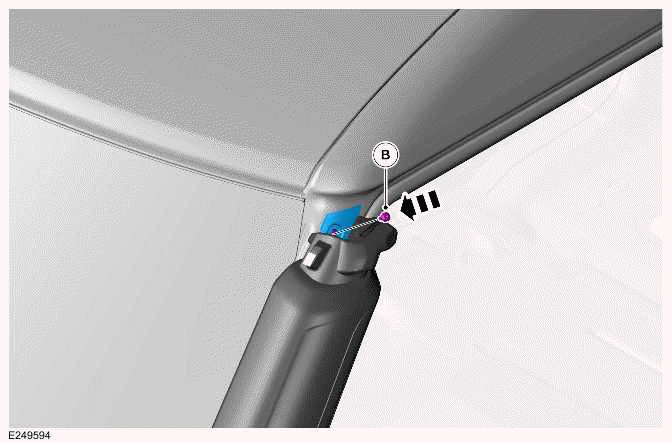

11.
NOTE:
The A-pillar trim is hidden to provide extra clarity.
Install the bolt (B) through the bracket (F) and into the rivet nut (C).
12.
WARNING:
If rivet type nut (E) is over torqued it will be damaged and result in the
raised air intake not being
securely held against the body.
Torque the bolt (D) installed in step 9.
13.
NOTE:
The A-pillar trim is hidden to provide extra clarity.

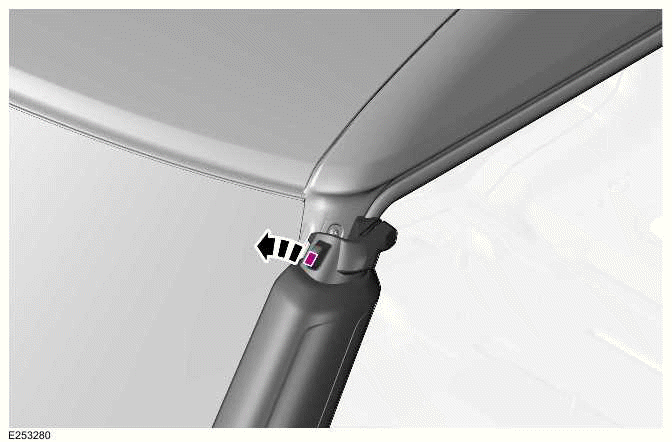

Remove the section of tape at the top of the raised air intake as
illustrated.
14.

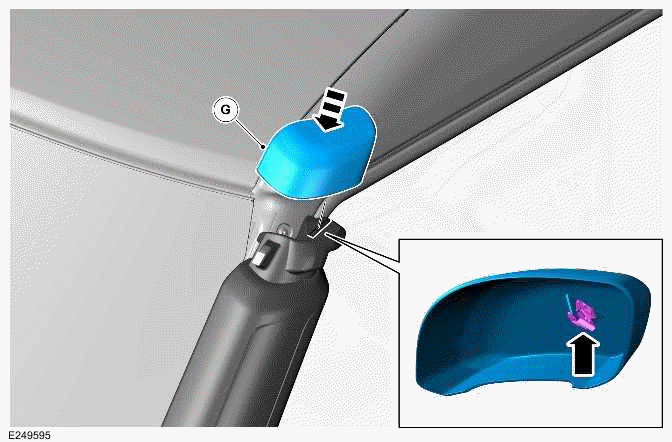

Install the cap (G) to the raised air intake and secure with clip.
- Apply pressure to the cap for 15 seconds to secure the cap to the adhesive tape
on the raised air intake.
15. Refit left side door.
16.

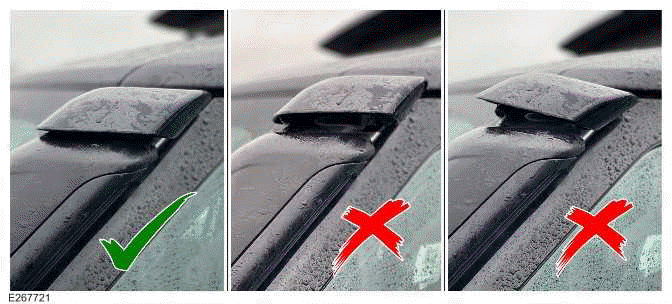

Make sure the raised air intake is correctly installed.
- Make sure that the top of the raised air intake is aligned with the top of the
A-pillar trim.
17.

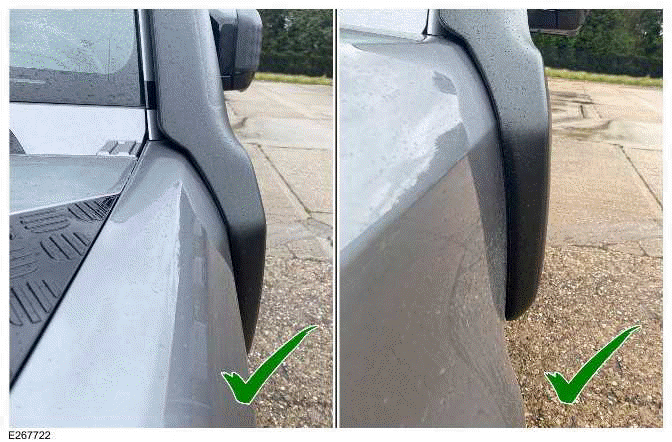

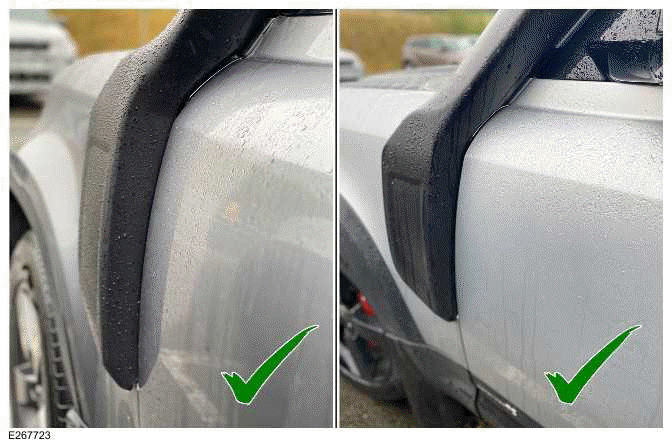

NOTE:
The raised air intake is not a snorkel and is designed not to have a water or
air tight fit to the fender.
The moulding is designed to fit against the fender as illustrated in the photos
below.
Make sure the raised air intake is correctly installed.
18.
Make sure the raised air intake is correctly installed.
