Land Rover Defender: Rear Scuff Plate

REAR SCUFF PLATE - PART NUMBER: VPLEP0447

REMOVAL AND INSTALLATION

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

CAUTIONS:

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Rear Scuff Plate

Rear Scuff Plate

INSTALLATION

1.

Rear Scuff Plate

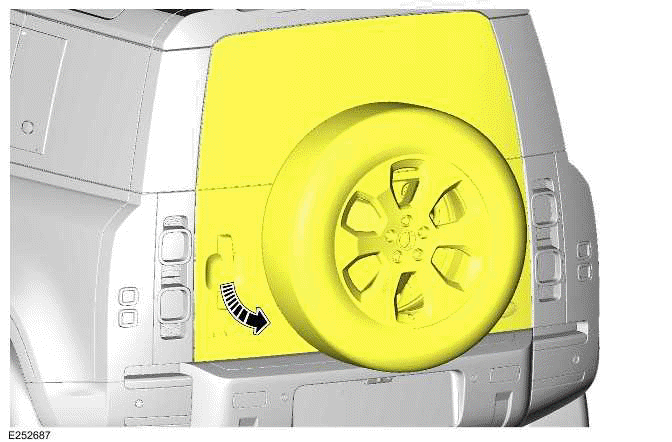

Open the tailgate.

2.

Rear Scuff Plate

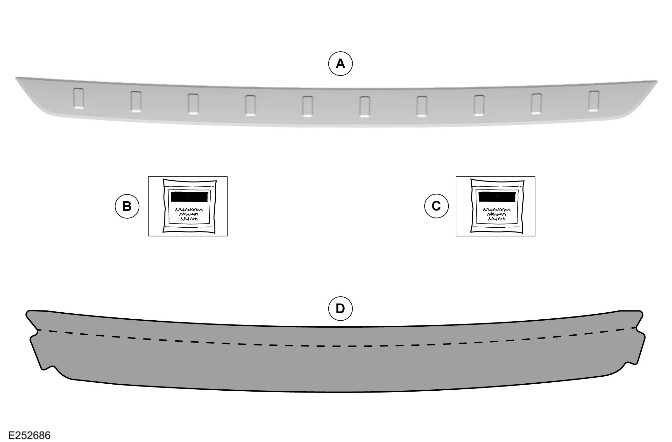

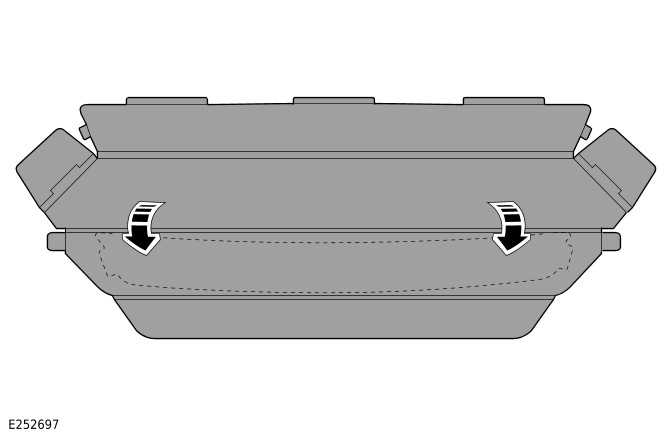

Fold out the rear scuff plate cardboard box to reveal the template.

3.

Rear Scuff Plate

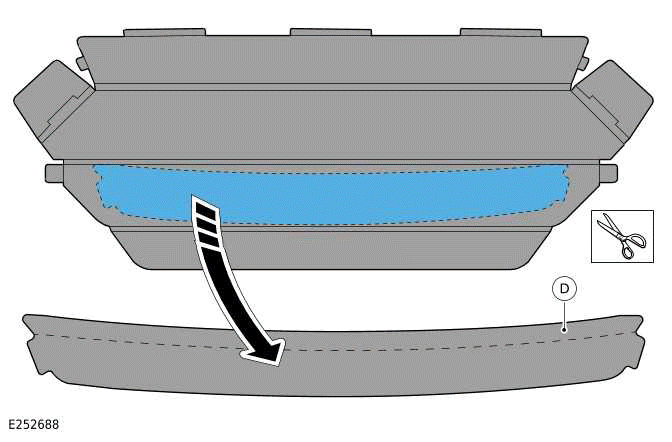

Cut out and remove the cardboard template (D) from the cardboard box.

4.

Rear Scuff Plate

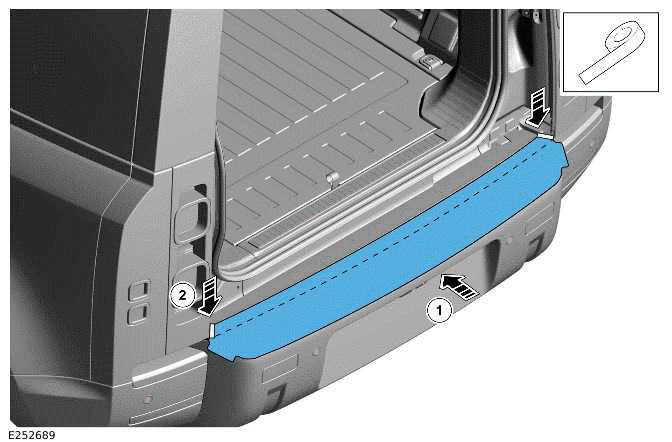

Install the cardboard template (D).

  1. Install the cardboard template into position as illustrated.
  2. Attach suitable tape to the inner part of the cardboard template above the perforated edge as illustrated.

5.

Rear Scuff Plate

Tear along the perforated edge to remove the outer part of the cardboard template. Only the inner part of the template should remain on the vehicle as illustrated.

6.

WARNING: Make sure to wear suitable personal protective equipment when using cleaner or adhesion promoter in the following steps.

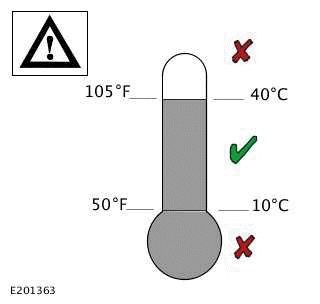

CAUTION: Allow to dry for a minimum of 2 minutes before proceeding to the next step.

Rear Scuff Plate

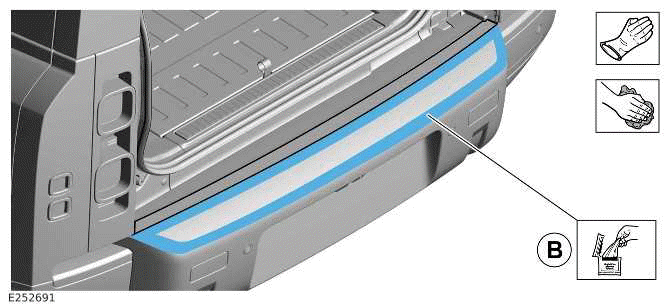

Using the supplied cleaner (B), clean the illustrated area.

7.

CAUTION: Allow to dry for a minimum of 5 minutes before proceeding to next step.

Rear Scuff Plate

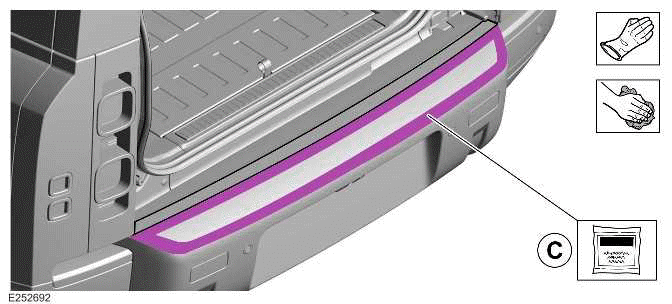

Apply the supplied adhesion promoter (C) to the illustrated area.

8.

CAUTION: Make sure the orientation of the rear scuff plate is lined up with the cardboard template (D).

Rear Scuff Plate

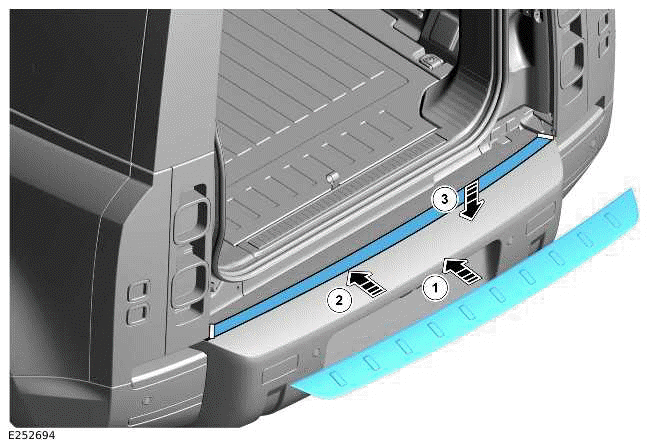

Install the rear scuff plate (A) to the bumper.

  1. Align the rear scuff plate to the cardboard template.
  2. Push the rear scuff plate against the cardboard template.
  3. Push down on the rear scuff plate to make sure the rear scuff plate is firmly on the bumper.

9.

CAUTION: Control the aligned position when peeling away the adhesion strip backing.

NOTE: Firmly push the edges of the rear scuff plate along its length to make sure there is good adhesion to the bumper.

Rear Scuff Plate

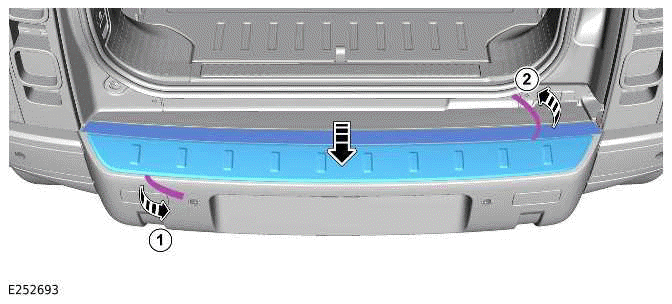

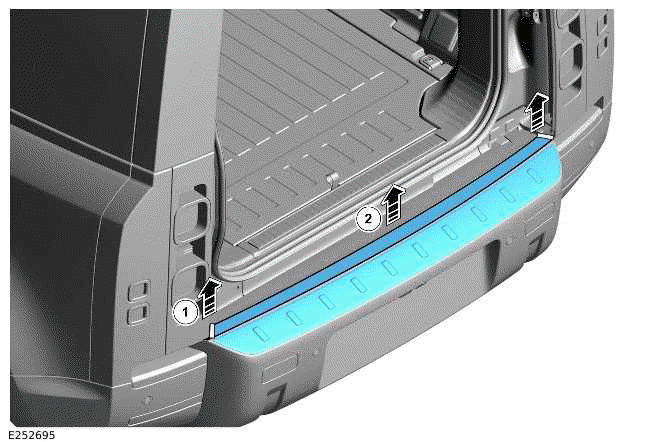

Remove the protective tape from the adhesive strip on the rear scuff plate (A).

  1. Remove the lower protection tape by pulling the tab at the side of the scuff plate.
  2. Remove the upper protection tape.

10.

CAUTION: Make sure to protect the paintwork.

Rear Scuff Plate

Remove the cardboard template (D) from the bumper and discard.

  1. Remove the tape from the cardboard template.
  2. Remove the cardboard template and discard.

11.

Rear Scuff Plate

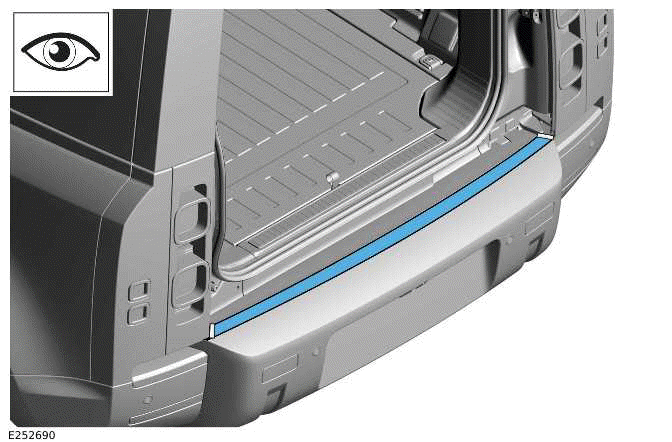

Check the rear scuff plate is installed correctly as illustrated. Remove the rear scuff plate protective layer.
