Land Rover Defender: Rear Door Window Control Switch
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Rear Door Window Control Switch
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Disconnect the startup battery ground cable.
2. Remove the rear door trim panel.

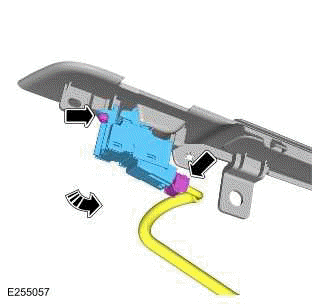

3.
.png)
- Disconnect the electrical connector from the rear door window control switch.
- Remove the screw.
- Remove the rear door window control switch as illustrated.
INSTALLATION
1.
- Install the rear door window control switch.
- Install and tighten the screw.
- Torque: 2Nm
- Connect the electrical connector to the rear door window control switch.
2. Install the rear door trim panel.
3. Connect the startup battery ground cable.
