Land Rover Defender: Roof Opening Panel - Diagnosis and Testing
DIAGNOSIS AND TESTING
PRINCIPLE OF OPERATION
For a detailed description of the roof opening panel system and operation,
refer to the relevant description and
operation section of the workshop manual. REFER to: Roof Opening Panel (Roof
Opening Panel, Description
and Operation).
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault and may also cause additional faults in the
vehicle being checked and/or
the donor vehicle
NOTES:
- If a control module or a component may be at fault and the vehicle
remains under manufacturer warranty,
refer to the Warranty Policy and Procedures manual, or determine if any
prior approval program is in
operation, prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter accurate to three decimal
places, and with an up-to-date calibration certificate. When testing
resistance always take the resistance
of the digital multimeter leads into account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests
- Verify the customer concern
- Visually inspect for obvious signs of mechanical or electrical damage
Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the symptom chart, alternatively check for
Diagnostic Trouble Code(s) and refer to the Diagnostic Trouble Code(s) (DTC)
Index
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required

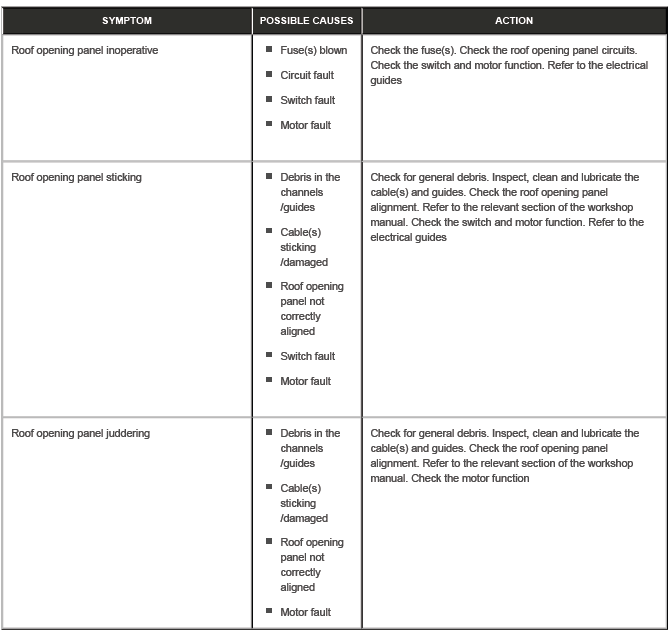

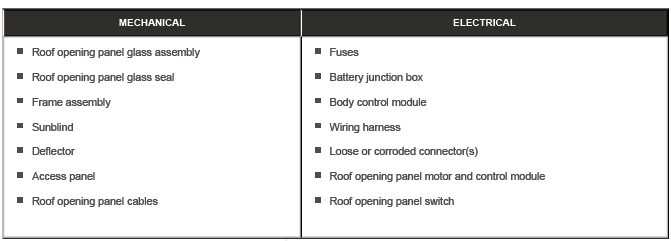

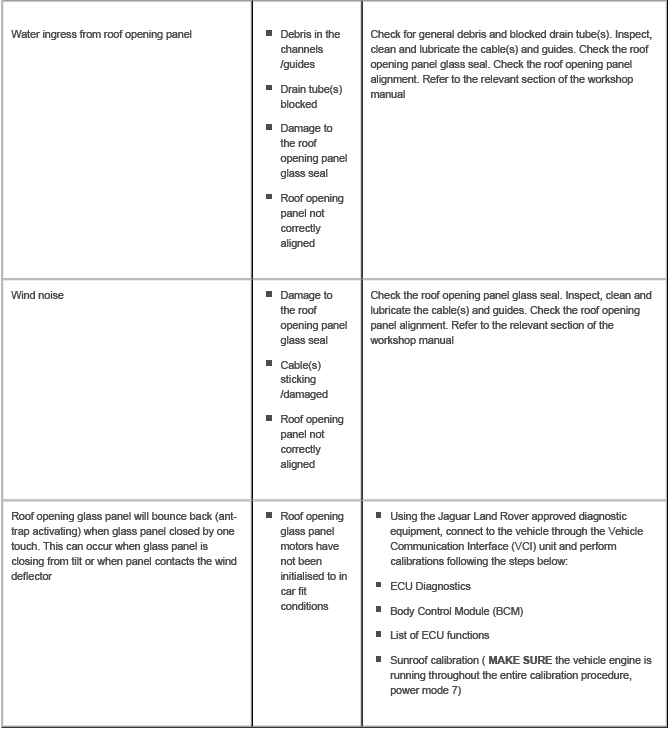

SYMPTOM CHART
FURTHER DIAGNOSTICS FOR ROOF OPENING PANEL GLASS/ROOF OPENING PANEL BLIND
ISSUES
The following diagnostic tests should be used if the customer reports that
the roof opening panel glass and/or roof
opening panel blind is not functioning as expected.
NOTE:
These diagnostic procedures allow the technician to accurately identify the
precise nature of the roof opening
panel glass/roof opening panel blind fault. To assist the retailer in
understanding the concerns (so that the
quality of the parts can be improved) please use the diagnostics aid below to
correctly identify and report the
specific concern description through the Retailer/Authorized Repairer warranty
system

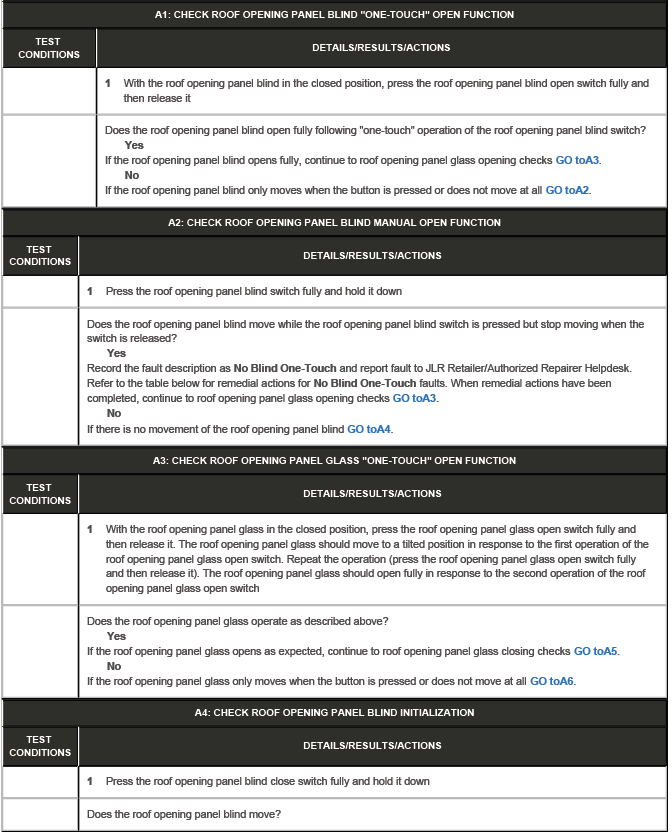

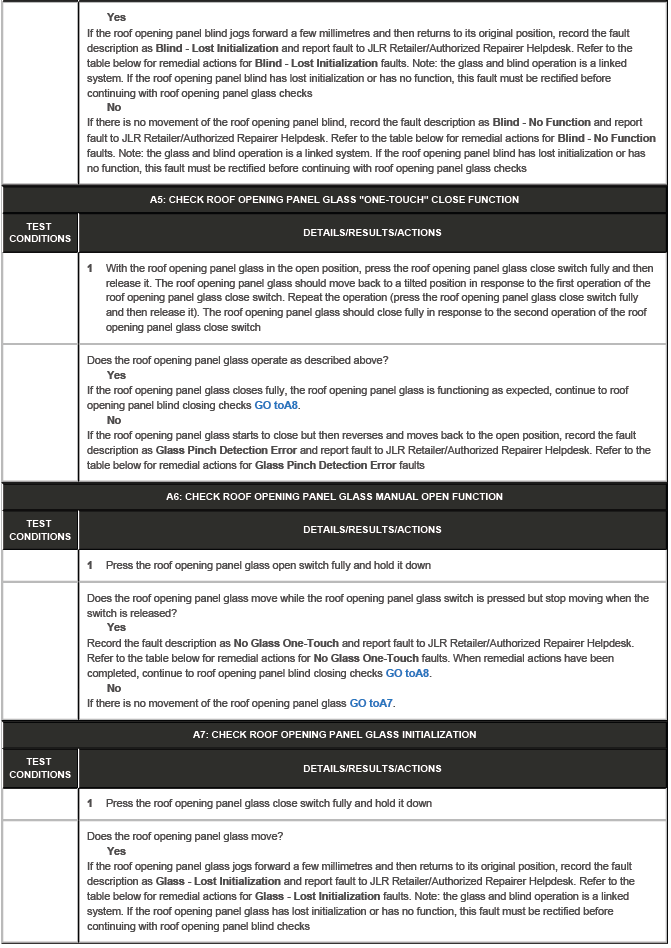

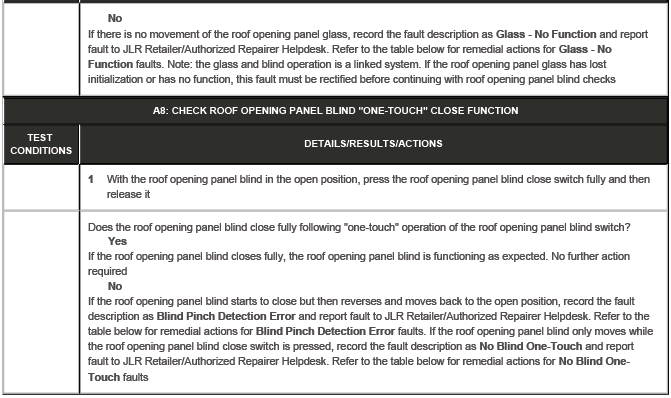

PINPOINT TEST A : ROOF OPENING PANEL GLASS/ROOF OPENING PANEL BLIND
PINPOINT TESTS

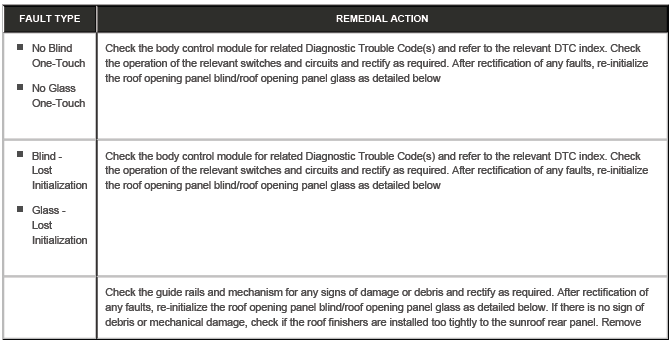

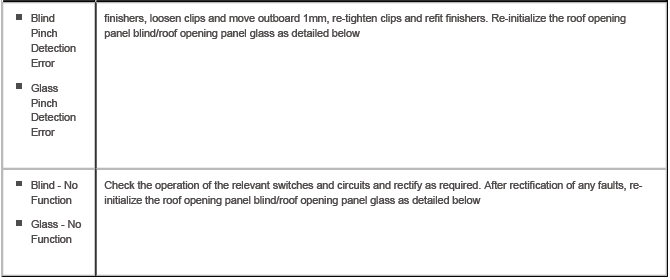

ROOF OPENING PANEL BLIND/ROOF OPENING PANEL GLASS FAULTS - REMEDIAL
ACTIONS
NOTE:
If the roof opening panel blind is de-normalised the roof opening panel glass
cannot open (roof opening
panel blind position is not known). If the roof opening panel glass is
de-normalised the roof opening panel
blind cannot close (roof opening panel glass position is not known)
ROOF OPENING PANEL BLIND/ROOF OPENING PANEL GLASS INITIALIZATION
NOTE:
Roof opening panel blind/roof opening panel glass initialization will be lost if
the battery is disconnected, or if
the roof opening panel blind/roof opening panel glass motor power supply is
interrupted when the roof
opening panel blind/roof opening panel glass is in motion.
Initialize the roof opening panel blind/roof opening panel glass as follows:
- Start the engine and leave running during the initialization process
- Make sure that the roof opening panel blind/roof opening panel glass is
in the fully closed position - press the
close switch to achieve this
- Press and hold the close switch again and wait for the roof opening
panel glass to jog forward a few millimetres
and then return to its original position (this should take approximately 30
seconds), then release the switch
- Within 3 seconds, press and hold the close switch. The roof opening
panel blind/roof opening panel glass will
automatically travel toward the open position and then to the fully closed
position. Release the switch when
movement is complete
