Land Rover Defender: Seats - [+] 7 Seat Configuration - Component Location

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Seats - [+] 7 Seat Configuration / Seats - [+] 7 Seat Configuration - Component Location

COMPONENT LOCATION - 1 OF 5 - SEAT ADJUSTMENT CONTROL MODULES

NOTE: Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.

Seats - [+] 7 Seat Configuration

  1. Heating, ventilation, and air conditioning (HVAC) control module
  2. Touch Screen (FCDIM)
  3. Instrument Panel Cluster (IPC)
  4. Driver Door Control Module (DDM)
  5. Rear Integrated Control Panel (FCIMB) (if equipped)
  6. Rear seat heater switch (if equipped)
  7. Roof pod
  8. Third row seat heater switch (quantity 2)
  9. Telematics Control Module (TCU)
  10. Passenger Door Control Module (PDM)
  11. Body Control Module (BCM)/ Gateway Control Module (GWM)
  12. Integrated Control Panel (FCIM)

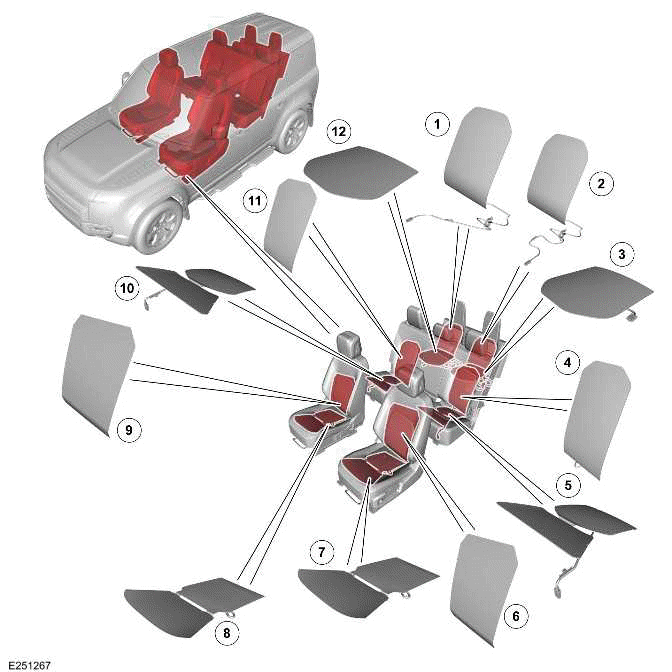

COMPONENT LOCATION - 2 OF 5 - SEAT HEATER - IF EQUIPPED

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Seats - [+] 7 Seat Configuration

  1. Thrid row seat heated backrest - Right
  2. Thrid row seat heated backrest - Left
  3. Thrid row seat heated cushion - Left
  4. Second row seat heated backrest - Left
  5. Second row seat heated cushion - Left
  6. Front row seat heated backrest - Left
  7. Front row seat heated cushion - Left
  8. Front row seat heated cushion - Right
  9. Front row seat heated backrest - Right
  10. Second row seat heated cushion - Right
  11. Second row seat heated backrest - Right
  12. Third row seat heated cushion - Right

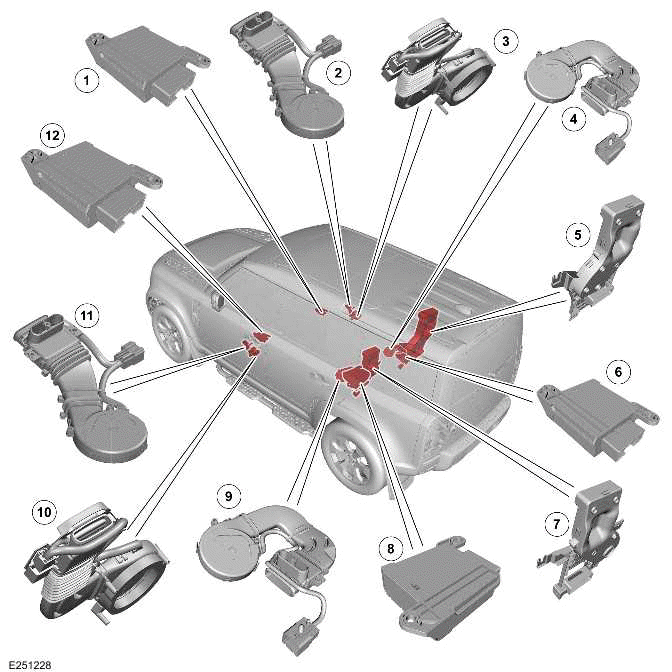

COMPONENT LOCATION - 3 OF 5 - CLIMATE SEAT - IF EQUIPPED

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Seats - [+] 7 Seat Configuration

  1. Seat Climate Control Module (SCME) - Right
  2. Front row climate seat cushion - Right
  3. Front row climate seat backrest - Right
  4. Second row climate seat cushion - Right
  5. Second row climate seat backrest - Right
  6. SCME - Rear right
  7. Second row climate seat backrest - Left
  8. SCME - Rear left
  9. Second row climate seat cushion - Left
  10. Front row climate seat backrest - Left
  11. Front row climate seat cushion - Left
  12. SCME - Left

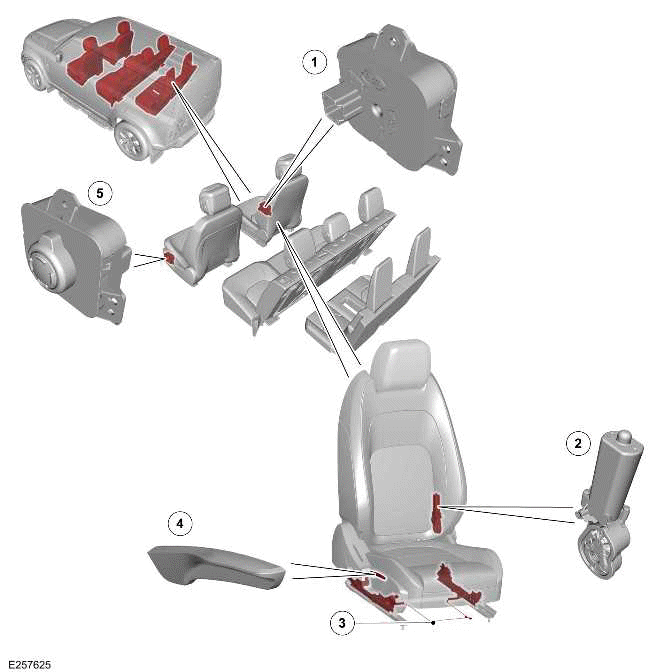

COMPONENT LOCATION - 4 OF 5 - SEMI-POWERED 8-WAY SEAT ADJUSTMENT

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Seats - [+] 7 Seat Configuration

  1. Front row seat switchpack - Right
  2. Front row seat backrest recline motor (quantity 2)
  3. Front row seat forward/rearward adjustment lever (quantity 2)
  4. Front row seat height adjustment lever (quantity 2)
  5. Front row seat switchpack - Left

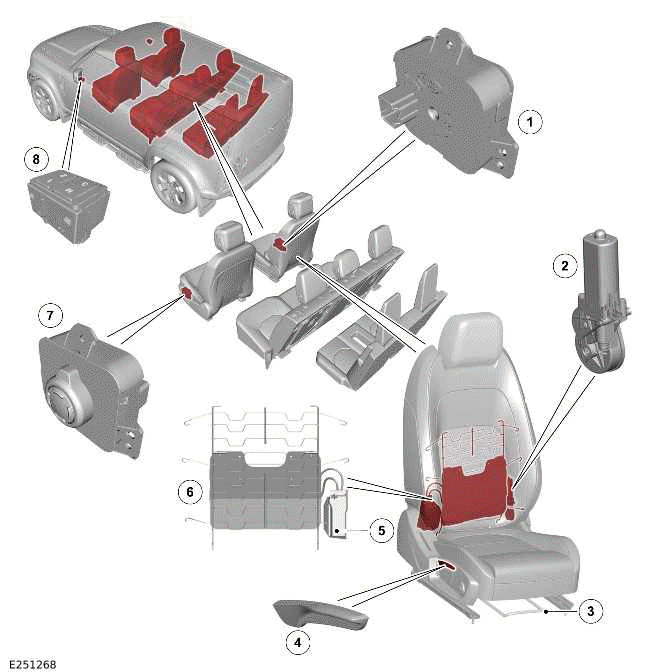

COMPONENT LOCATION - 5 OF 6 - SEMI-POWERED SEAT ADJUSTMENT

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Seats - [+] 7 Seat Configuration

  1. Front row seat switchpack - Right
  2. Front row seat backrest recline motor (quantity 2)
  3. Front row seat forward/rearward adjustment lever (quantity 2)
  4. Front row seat height adjustment lever (quantity 2)
  5. Front row seat lumbar air pump (quantity 2)
  6. Front row seat air reservoir valve block (quantity 2)
  7. Front row seat switchpack - Left
  8. Seat memory switchpack (quantity 2)

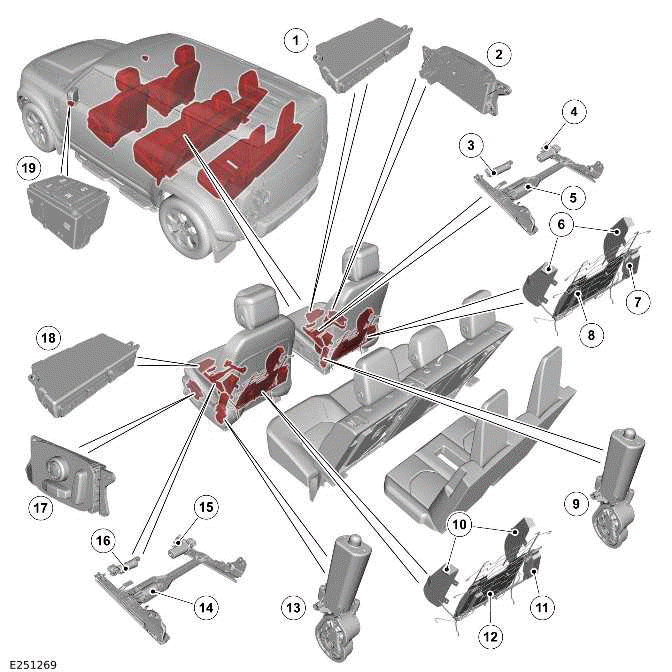

COMPONENT LOCATION - 6 OF 6 - POWER SEAT ADJUSTMENT WITH SEAT MEMORY SWITCHPACK

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Seats - [+] 7 Seat Configuration

  1. Seat Module - Driver/Passenger/Rear - Left/Right (DSM)
  2. Front row seat switchpack - Right
  3. Front row seat cushion tilt motor - Right
  4. Front row seat height motor - Right
  5. Front row seat forward/rearward motor - Right
  6. Inflatable bolsters - Right
  7. Front row seat lumbar air pump - Right
  8. Front row seat air reservoir valve block - Right
  9. Front row seat backrest recline motor - Right
  10. Inflatable bolsters - Left
  11. Front row seat lumbar air pump - Left
  12. Front row seat air reservoir valve block - Left
  13. Front row seat backrest recline motor - Left
  14. Front row seat forward/rearward motor - Left
  15. Front row seat cushion tilt motor - Left
  16. Front row seat height motor - Left
  17. Front row seat switchpack - Left
  18. Seat Module - Driver/Passenger/Rear - Left/Right (PSM)
  19. Seat memory switchpack (quantity 2)
