Land Rover Defender: Second Row Center Seatbelt Retractor
REMOVAL AND INSTALLATION

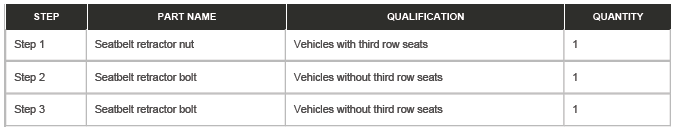

PART(S)
.png)
REMOVAL
WARNING:
NOTE:
- Note the orientation of the components.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
The following step(s) applies to:
All vehicles
1. Before handling any components within the SRS, make sure that the safety
guidelines are followed.
2. Disconnect the startup battery ground cable.
3. To avoid accidental deployment, wait at least 1 minutes after you
disconnect the startup battery ground
cable.
4. Remove the second row seat backrest cover.
The following step(s) applies to:
Vehicles without third row seats
5.

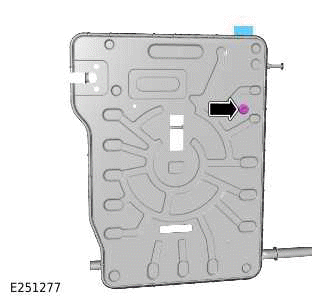

.png)
Remove and discard the bolt.
6.

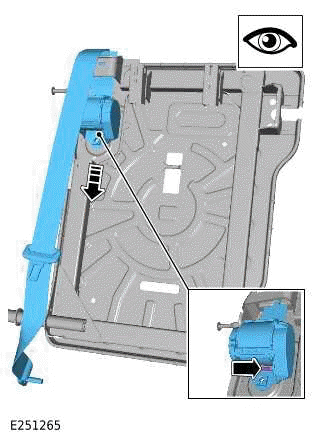

.png)
Remove the second row seatbelt retractor.
7.
NOTE:
If equipped.

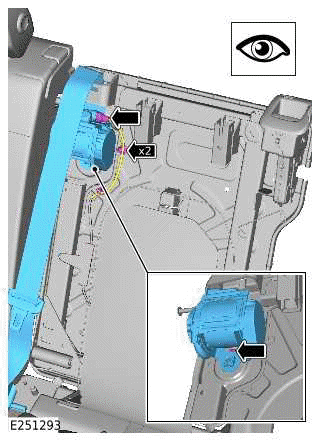

.png)
- Release the 2 clips.
- Disconnect the electrical connector.
- Remove the second row seatbelt retractor.
The following step(s) applies to:
Vehicles with third row seats
8.

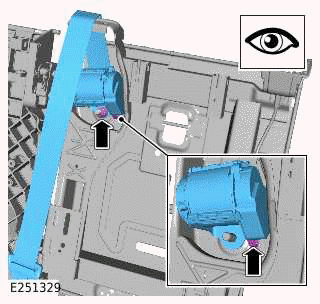

.png)
- Remove and discard the nut.
- Remove the second row seatbelt retractor.
INSTALLATION
The following step(s) applies to:
Vehicles with third row seats
1.
NOTE:
Make sure that the component is correctly located.
The following step(s) applies to:
Vehicles without third row seats
2.
NOTE:
Make sure that the component is correctly located.
3.
NOTE:
- Make sure that the component is correctly located.
- If equipped.
The following step(s) applies to:
All vehicles
4. Install the second row seat backrest cover.
5. Connect the startup battery ground cable.
