Land Rover Defender: Second Row Interior Lamp
Land Rover Defender 2020-2025 Service Manual / Electrical / Lighting / Interior Lighting / Second Row Interior Lamp
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
The following step(s) applies to: Low level light unit

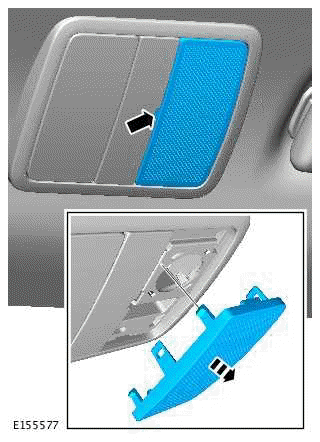

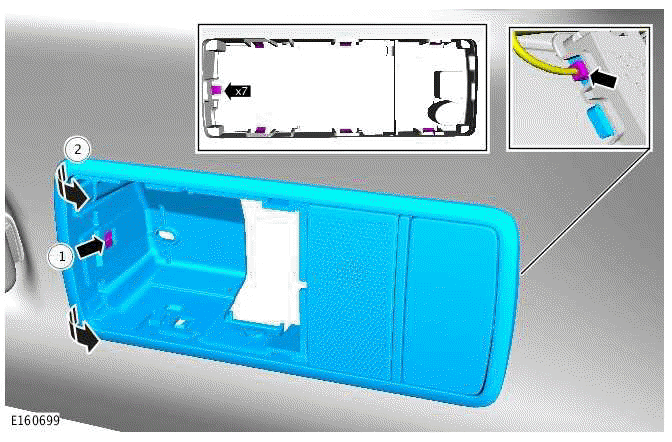

1.
NOTES:
- LH illustration shown, RH is similar.
- This step must be repeated on both sides.
.png)
2.
NOTES:
- LH illustration shown, RH is similar.
- This step must be repeated on both sides.
.png)
Torque: 6Nm

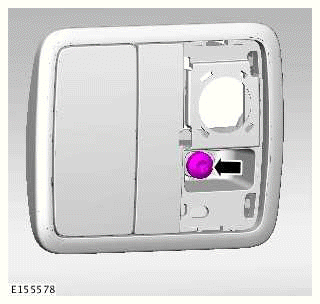

3.
NOTES:
- This step must be repeated on both sides.
- LH illustration shown, RH is similar.
.png)
The following step(s) applies to: Medium level light unit

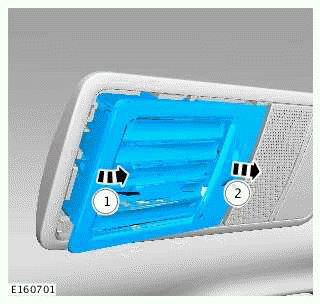

4.
NOTES:
- This step must be repeated on both sides.
- RH illustration shown, LH is similar.
.png)
5.
NOTES:
- This step must be repeated on both sides.
- RH illustration shown, LH is similar.
.png)
Torque: 6Nm

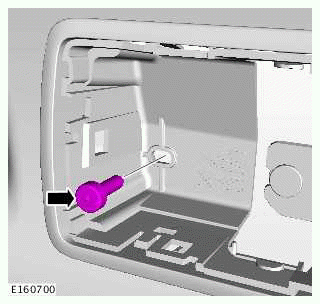

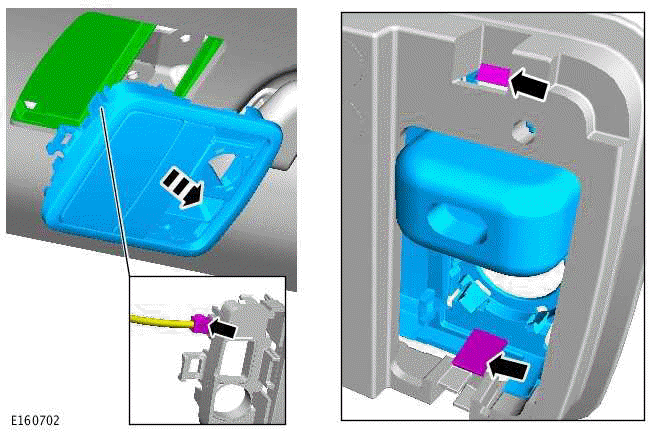

6.
NOTES:
- This step must be repeated on both sides.
- RH illustration shown, LH is similar.
.png)
The following step(s) applies to: High level light unit

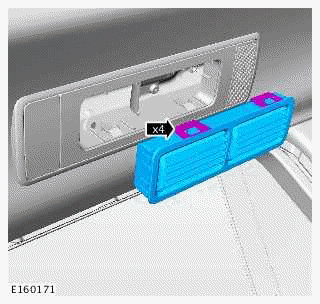

7.
NOTES:
- This step must be repeated on both sides.
- RH illustration shown, LH is similar.
.png)

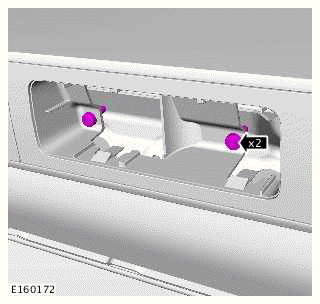

8.
NOTES:
- This step must be repeated on both sides.
- RH illustration shown, LH is similar.
.png)
Torque: 6Nm

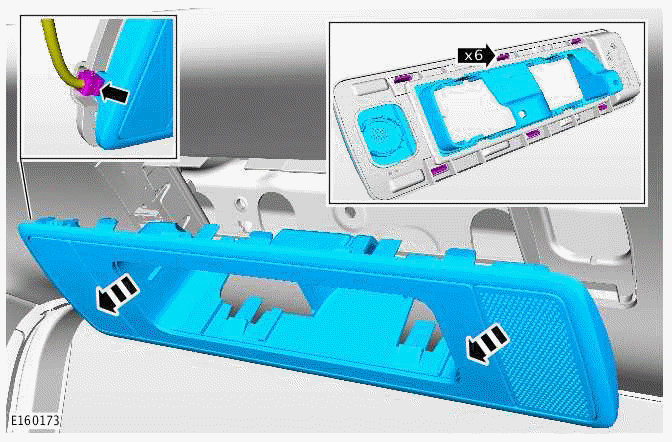

9.
NOTE: RH illustration shown, LH is similar.
.png)
INSTALLATION
1. To install, reverse the removal procedure.
