Land Rover Defender: Secondary Bulkhead Right Panel
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Front End Body Panels / Secondary Bulkhead Right Panel
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

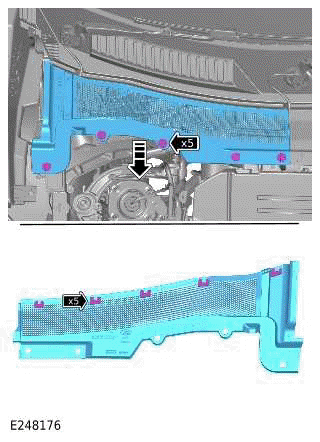

- Release the 5 clips.
- Remove the access cover.
2.
.png)

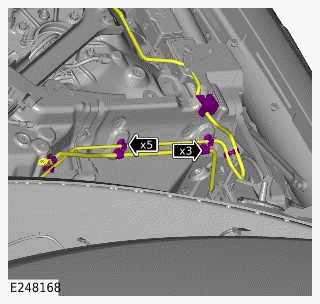

- Release the 5 air suspension pipe clips.
- Reposition the air suspension pipes away from the secondary bulkhead right panel.
- Release the 3 windshield washer jet hose clips.
- Reposition the windshield washer jet hose away from the secondary bulkhead right panel.
3.
.png)

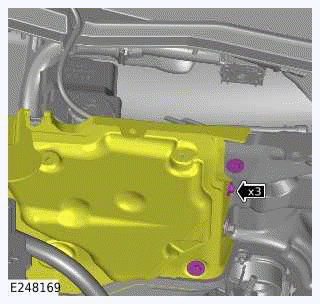

Remove the 3 bolts.
4.
.png)

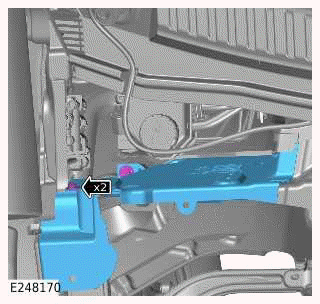

- Remove the 2 bolts.
- Remove the secondary bulkhead right panel.
INSTALLATION
1.
- Install the secondary bulkhead right panel.
- Install and tighten the 2 bolts.
Torque: 5.4Nm
2.
- Install and tighten the 3 bolts.
Torque: 6Nm
3.
- Reposition the windshield washer jet hose into the correct location.
- Reposition the air suspension pipes into the correct location.
- Install the 3 windshield washer jet hose clips.
- Install the 5 air suspension pipe clips.
4.
- Install the access cover.
- Install the 5 clips.
