Land Rover Defender: Right Undershield
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
1. Raise and support the vehicle on a suitable 2 post lift.

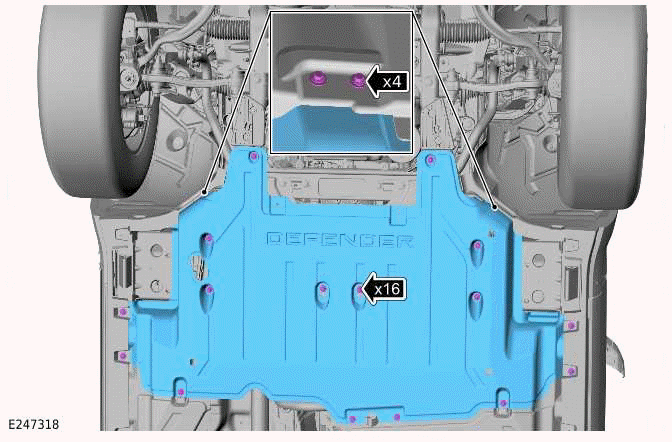

2.
.png)
- Remove the 20 bolts.
- Remove the transmission undershield.
3. Remove the rocker panel finisher.

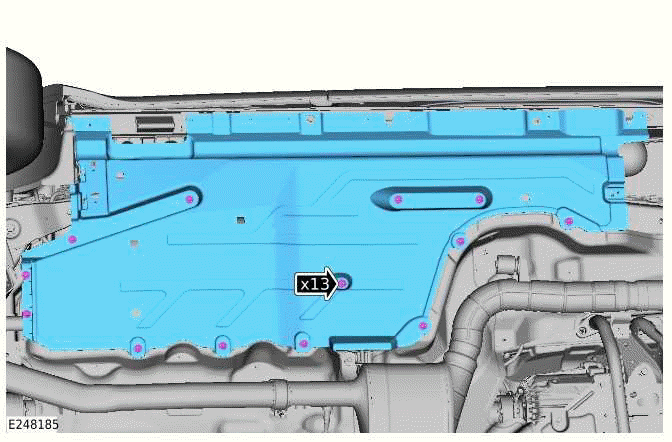

4.
.png)
- Remove the 13 bolts.
- Remove the right undershield.
INSTALLATION
1.
- Install the right undershield.
- Install and tighten the 13 bolts.
Torque: 5.4Nm
2. Install the rocker panel finisher.
3.
- Install the transmission undershield.
- Install and tighten the 20 bolts.
Torque: 10Nm
