Land Rover Defender: Small Security Box

SMALL SECURITY BOX - PART NUMBER: VPLVS0183

REMOVAL AND INSTALLATION

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTES:

Small Security Box

INSTALLATION

1.

Small Security Box

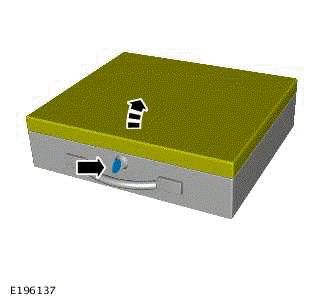

Unlock and open the small security box.

2.

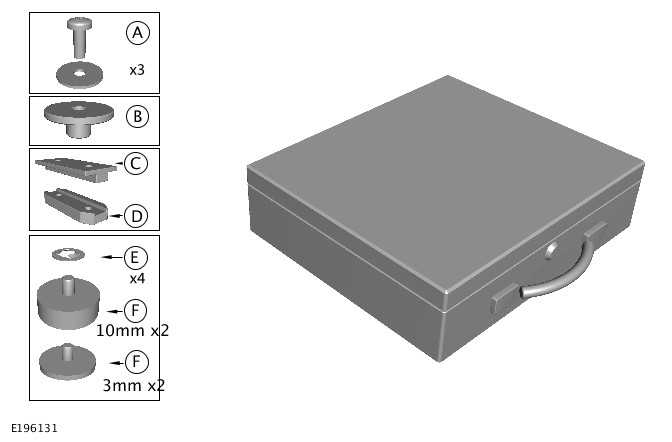

NOTE: The supplied 10 mm feet are not required.

Small Security Box

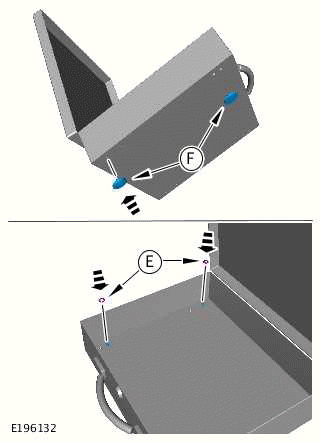

Install the 3 mm feet (F) using the supplied clips (E) as illustrated.

3.

NOTE: Only tighten the bolts finger tight at this stage.

Small Security Box

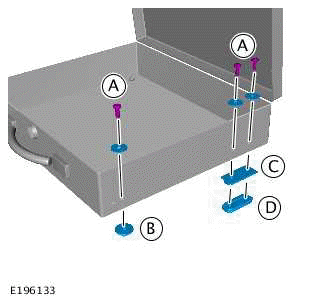

Install the clamp and the slide pin as illustrated.

4.

Small Security Box

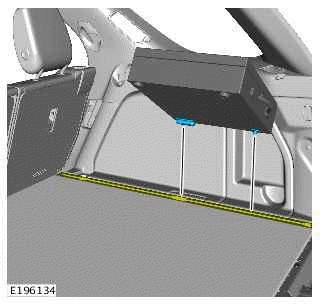

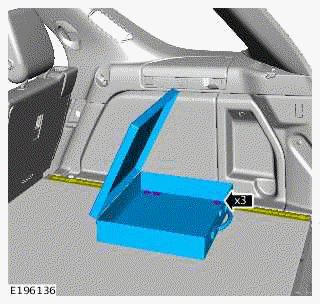

Locate the small security box in the loadspace rail slot.

5.

Small Security Box

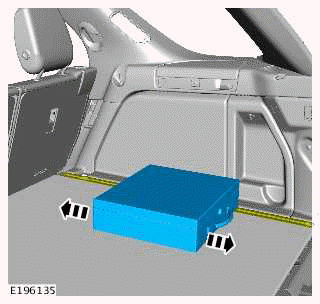

Adjust the position of the small security box as required.

6.

Small Security Box

Tighten the bolts.
